Oase Biosmart 30000 / Biotec 10.1 Filter Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Filter Spare Parts > Oase Biosmart Filter Spare Parts > Oase Biosmart 30000 / Biotec 10.1 Filter Parts

Oase Biosmart 30000 / Biotec 10.1 Filter Parts

Oase Biosmart 30000 / Biotec 10.1 Filter Parts

The Oase Biosmart 30000 / Biotec 10.1 Filter Parts spares that are currently available are the lids, coupling nut, thermometer, grey nipple, water level indicator body, float and sealing plug, oval head screws, gate valve guide,gasket, plate and handle, filter tank,tray clamp,inlet hosetails and deflector pack, screw cap, foam holders, replacement foams, main filter tray,air connector and internal outlet gasket.
Spare Parts - Quick Links


Oase Biosmart 30000 / Biotec 10.1 Filter Parts

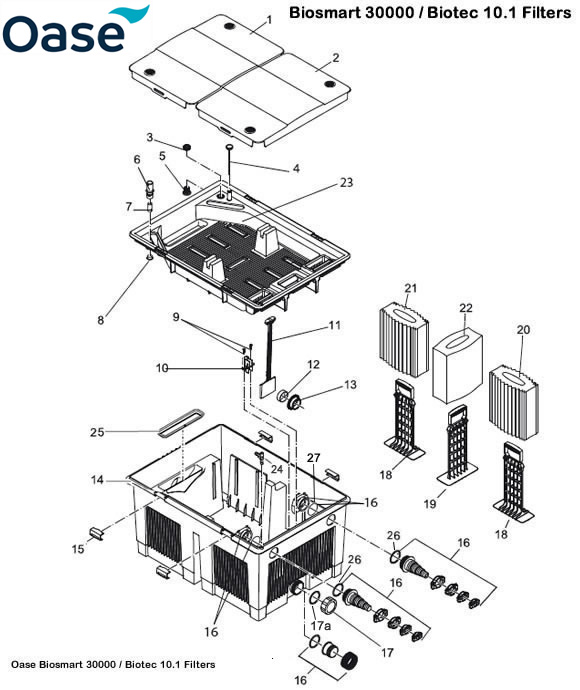

Diagram - Part 1

Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Lid (Without Grating) (26079)
Our Ref: OAS515 - Manufacturers Ref: 26079

Diagram Part Ref: 1
Click to Enlarge an image of Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Lid (Without Grating) (26079)Large image of Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Lid (Without Grating) (26079)
Roll over to zoom
Our Price:
28.01
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 2

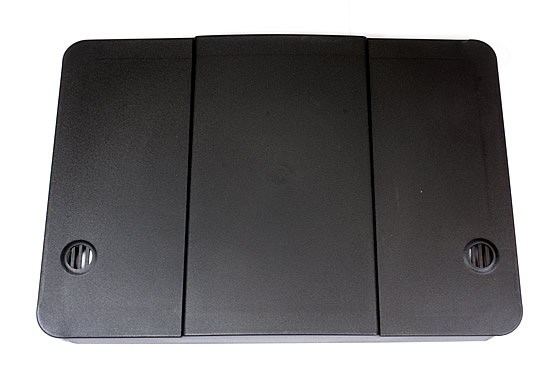

Biosmart 30000 / Biotec 10.1 - Lid (With Grating) (26214)
Our Ref: OAS516 - Manufacturers Ref: 26214

Diagram Part Ref: 2
Click to Enlarge an image of Biosmart 30000 / Biotec 10.1 - Lid (With Grating) (26214)Large image of Biosmart 30000 / Biotec 10.1 - Lid (With Grating) (26214)
Roll over to zoom
Our Price:
28.01
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 3

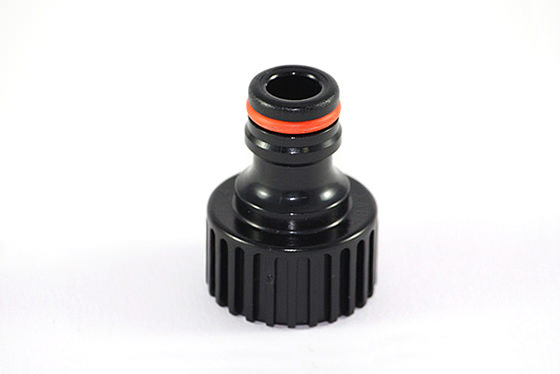

Biosmart 30000 / Biotec 5.1 / Biotec 10.- 1 1/2" Coupling Nut (26636)
Our Ref: OAS517 - Manufacturers Ref: 26636

Diagram Part Ref: 3
Please note that this product is NOT currently available for Next Day Delivery. In some cases we may have to request this part from Oase in Germany, which may slightly increase delivery times
Click to Enlarge an image of Biosmart 30000 / Biotec 5.1 / Biotec 10.- 1 1/2Large image of Biosmart 30000 / Biotec 5.1 / Biotec 10.- 1 1/2
Roll over to zoom
Our Price:
2.51
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 4

Filter Thermometer (29594 / 26970)
Our Ref: OAS501 - Manufacturers Ref: 29594

Diagram Part Ref: 4
Click to Enlarge an image of Filter Thermometer (29594 / 26970)Large image of Filter Thermometer (29594 / 26970)
Roll over to zoom
Our Price:
3.36
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 5

1/2" Grey Nipple (5542)
Our Ref: OAS518 - Manufacturers Ref: 5542

Diagram Part Ref: 5
Click to Enlarge an image of 1/2Large image of 1/2
Roll over to zoom
Our Price:
2.51
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 6

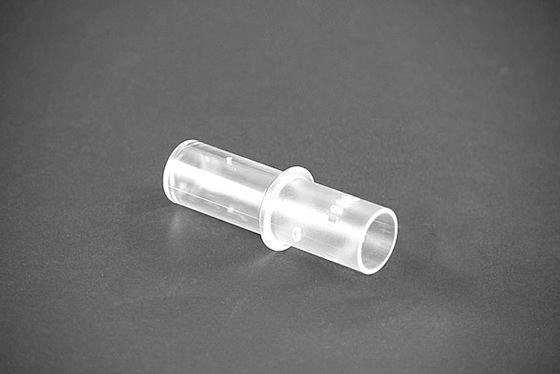

Biotec / Biosmart - Water Level Indicator Body (35083)
Our Ref: OAS519 - Manufacturers Ref: 35083

Diagram Part Ref: 6
Click to Enlarge an image of Biotec / Biosmart - Water Level Indicator Body (35083)Large image of Biotec / Biosmart - Water Level Indicator Body (35083)
Roll over to zoom
Our Price:
0.80
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 7

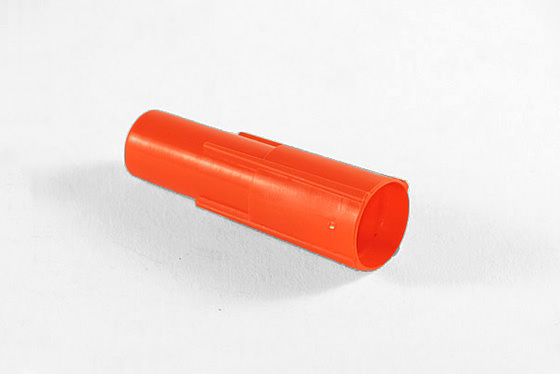

Biotec / Biosmart - Water Level Indicator Float (35084)
Our Ref: OAS520 - Manufacturers Ref: 35084

Diagram Part Ref: 7
Click to Enlarge an image of Biotec / Biosmart - Water Level Indicator Float (35084)Large image of Biotec / Biosmart - Water Level Indicator Float (35084)
Roll over to zoom
Our Price:
0.64
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 8

Biotec / Biosmart - Water Level Indicator Sealing Plug (26418)
Our Ref: OAS521 - Manufacturers Ref: 26418

Diagram Part Ref: 8
Click to Enlarge an image of Biotec / Biosmart - Water Level Indicator Sealing Plug (26418)Large image of Biotec / Biosmart - Water Level Indicator Sealing Plug (26418)
Roll over to zoom
Our Price:
0.30
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 9

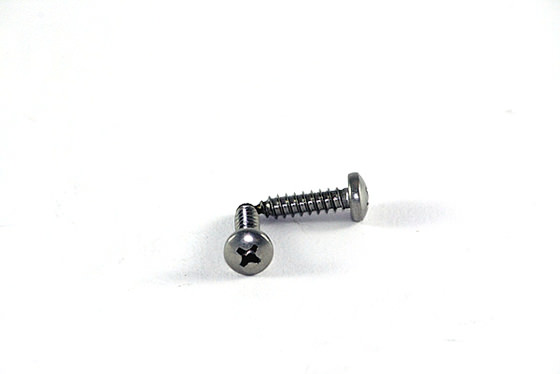

Oval Head Screw V2A Din 7981 4.8 X 19 (Single) (22853)
Our Ref: OAS331 - Manufacturers Ref: 22853

Diagram Part Ref: 11
Click to Enlarge an image of Oval Head Screw V2A Din 7981 4.8 X 19 (Single) (22853)Large image of Oval Head Screw V2A Din 7981 4.8 X 19 (Single) (22853)
Roll over to zoom
Our Price:
0.72
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 10

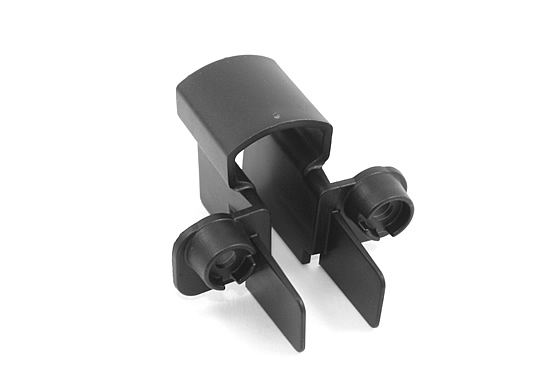

Biotec / Biosmart - Guiding Gate Valve (35089)
Our Ref: OAS523 - Manufacturers Ref: 35089

Diagram Part Ref: 10
Click to Enlarge an image of Biotec / Biosmart - Guiding Gate Valve (35089)Large image of Biotec / Biosmart - Guiding Gate Valve (35089)
Roll over to zoom
Our Price:
0.72
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 11

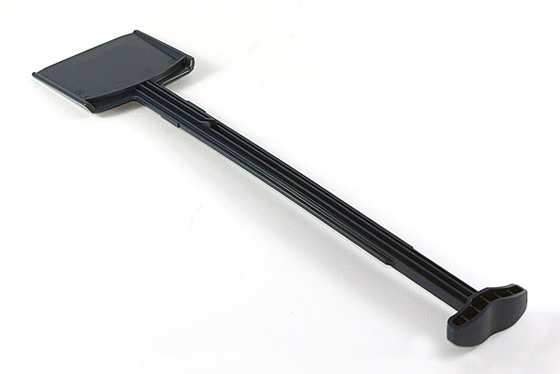

Biotec / Biosmart - Gate Valve Plate / Handle (35085)
Our Ref: OAS524 - Manufacturers Ref: 35085

Diagram Part Ref: 11
Click to Enlarge an image of Biotec / Biosmart - Gate Valve Plate / Handle (35085)Large image of Biotec / Biosmart - Gate Valve Plate / Handle (35085)
Roll over to zoom
Our Price:
3.36
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 12

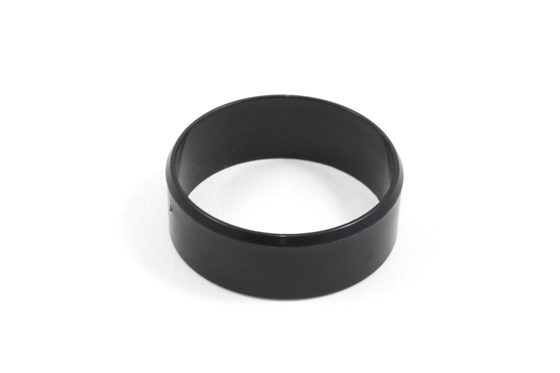

Biotec / Biosmart - Gate Valve Support Sleeve Gasket (35103)
Our Ref: OAS525 - Manufacturers Ref: 35103

Diagram Part Ref: 12
Click to Enlarge an image of Biotec / Biosmart - Gate Valve Support Sleeve Gasket (35103)Large image of Biotec / Biosmart - Gate Valve Support Sleeve Gasket (35103)
Roll over to zoom
Our Price:
0.80
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 13

Biotec / Biosmart - Gate Valve Sealing Gasket (26209)
Our Ref: OAS526 - Manufacturers Ref: 26209

Diagram Part Ref: 12
Click to Enlarge an image of Biotec / Biosmart - Gate Valve Sealing Gasket (26209)Large image of Biotec / Biosmart - Gate Valve Sealing Gasket (26209)
Roll over to zoom
Our Price:
3.36
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 14

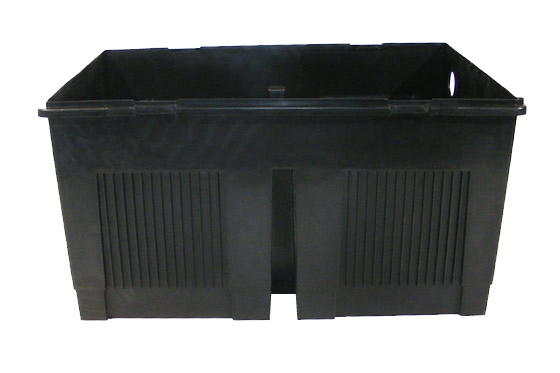

Biosmart 30000 / Biotec 10.1 - Filter Tank (26077)
Our Ref: OAS527 - Manufacturers Ref: 26077

Diagram Part Ref: 14
Our Price:
110.46
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 15

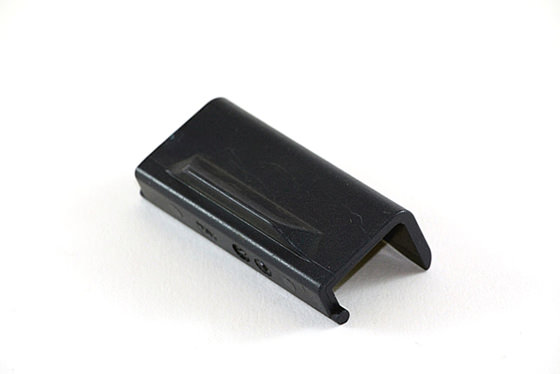

Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Tray Clamp (Single) (35086)
Our Ref: OAS528 - Manufacturers Ref: 35086

Diagram Part Ref: 15
Click to Enlarge an image of Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Tray Clamp (Single) (35086)Large image of Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Tray Clamp (Single) (35086)
Roll over to zoom
Our Price:
1.22
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 16

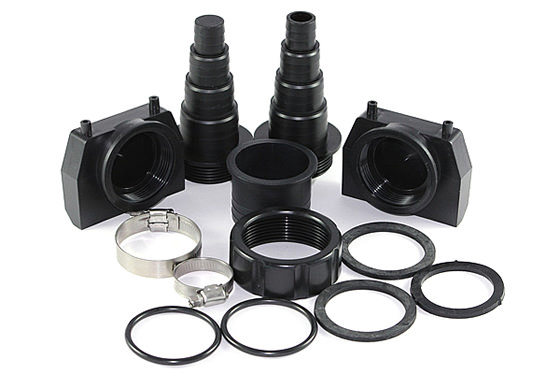

Biosmart 30000/ Biotec 5.1 / Biotec 10.1 - Inlet Hosetail And Deflector Pack (Pair) (35183 / 22759)
Our Ref: OAS529 - Manufacturers Ref: 22759

Diagram Part Ref: 16
Click to Enlarge an image of Biosmart 30000/ Biotec 5.1 / Biotec 10.1 - Inlet Hosetail And Deflector Pack (Pair) (35183 / 22759)Large image of Biosmart 30000/ Biotec 5.1 / Biotec 10.1 - Inlet Hosetail And Deflector Pack (Pair) (35183 / 22759)
Roll over to zoom
Our Price:
11.00
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 17

2" Screw Cap (25993)
Our Ref: OAS470 - Manufacturers Ref: 25993

Diagram Part Ref: 17
(Cap Only - Gasket not included)
Click to Enlarge an image of 2Large image of 2
Roll over to zoom
Our Price:
2.08
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 17a

Oase 2" Flat Hose Tail Gasket (28981 was 24192)
Our Ref: OAS978 - Manufacturers Ref: 28981

Diagram Part Ref: 17a
Click to Enlarge an image of Oase 2Large image of Oase 2
Roll over to zoom
Our Price:
1.24
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 18

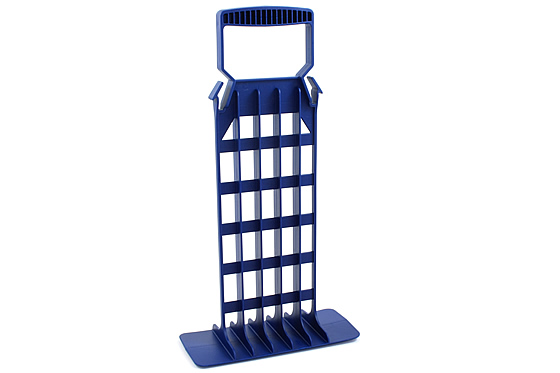

Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Foam Holder / Handle - Blue Open (Single) (35047)
Our Ref: OAS531 - Manufacturers Ref: 35047

Diagram Part Ref: 18
Click to Enlarge an image of Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Foam Holder / Handle - Blue Open (Single) (35047)Large image of Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Foam Holder / Handle - Blue Open (Single) (35047)
Roll over to zoom
Our Price:
7.63
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 19

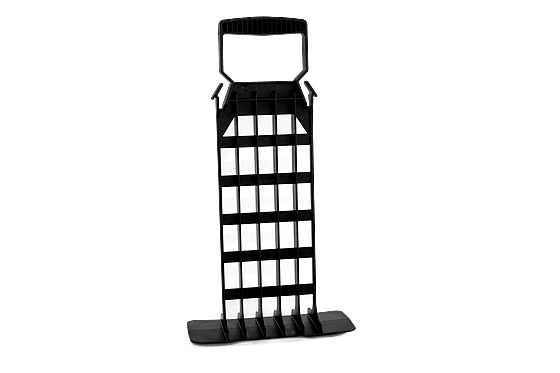

Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Foam Holder / Handle - Closed Black (Single) (35082)
Our Ref: OAS530 - Manufacturers Ref: 35082

Diagram Part Ref: 19
Click to Enlarge an image of Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Foam Holder / Handle - Closed Black (Single) (35082)Large image of Biosmart 30000 / Biotec 5.1 / Biotec 10.1 - Foam Holder / Handle - Closed Black (Single) (35082)
Roll over to zoom
Our Price:
5.90
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 20

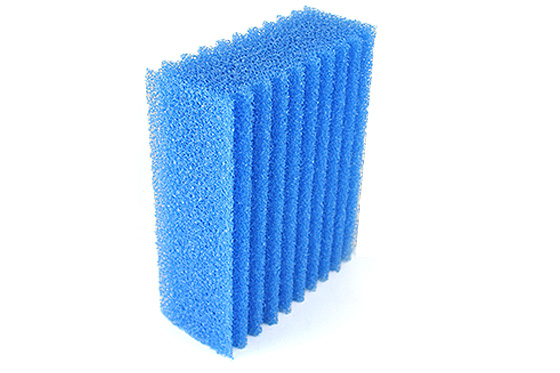

Oase Biosmart 30000 Filter Foams - BLUE (56678)
Our Ref: OAS020 - Manufacturers Ref: 56678

Diagram Part Ref: 20
Click to Enlarge an image of Oase Biosmart 30000 Filter Foams - BLUE (56678)Large image of Oase Biosmart 30000 Filter Foams - BLUE (56678)
Roll over to zoom
Our Price:
10.98
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 21

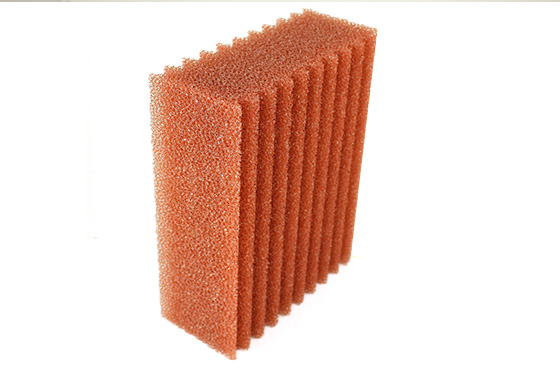

Oase Biosmart 30000 Filter Foams - RED (56677)
Our Ref: OAS021 - Manufacturers Ref: 56677

Diagram Part Ref: 21
Click to Enlarge an image of Oase Biosmart 30000 Filter Foams - RED (56677)Large image of Oase Biosmart 30000 Filter Foams - RED (56677)
Roll over to zoom
Our Price:
10.98
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 22

Oase Biosmart 30000 Filter Foams - GREEN (56679)
Our Ref: OAS022 - Manufacturers Ref: 56679

Diagram Part Ref: 22
Click to Enlarge an image of Oase Biosmart 30000 Filter Foams - GREEN (56679)Large image of Oase Biosmart 30000 Filter Foams - GREEN (56679)
Roll over to zoom
Our Price:
10.98
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 23

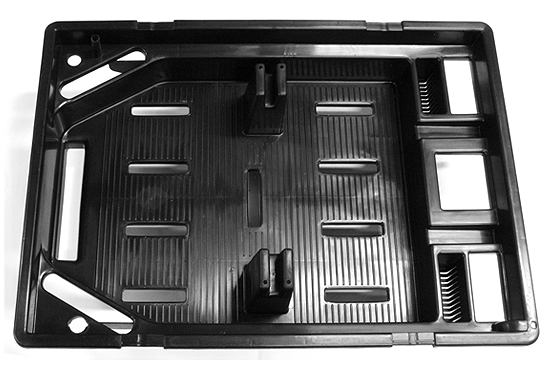

Biosmart 30000 / Biotec 10.1 - Main Tray (26078)
Our Ref: OAS532 - Manufacturers Ref: 26078

Diagram Part Ref: 23
Please note that this product is NOT currently available for Next Day Delivery. In some cases we may have to request this part from Oase in Germany, which may slightly increase delivery times
Our Price:
42.46
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 24

Biosmart 30000 / Biotec 10.1 - Air Connector (35087)
Our Ref: OAS533 - Manufacturers Ref: 35087

Diagram Part Ref: 24
Click to Enlarge an image of Biosmart 30000 / Biotec 10.1 - Air Connector (35087)Large image of Biosmart 30000 / Biotec 10.1 - Air Connector (35087)
Roll over to zoom
Our Price:
0.80
Quantity:

Oase Biosmart 30000 / Biotec 10.1 Filter Parts
Diagram - Part 25

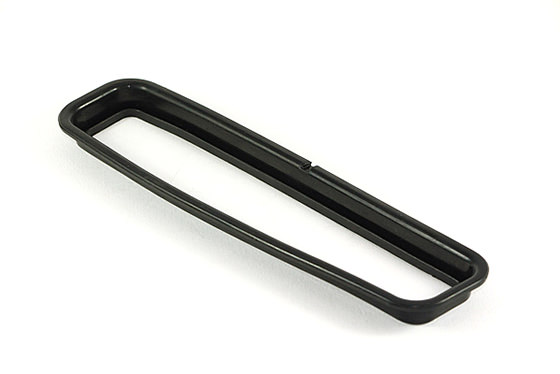

Biosmart 30000 / Biotec 10.1 - Internal Outlet Gasket (27846)
Our Ref: OAS534 - Manufacturers Ref: 71419

Diagram Part Ref: 25
Click to Enlarge an image of Biosmart 30000 / Biotec 10.1 - Internal Outlet Gasket (27846)Large image of Biosmart 30000 / Biotec 10.1 - Internal Outlet Gasket (27846)
Roll over to zoom
Our Price:
1.66
Quantity:
