Oase Water Feature Reservoirs
 | Oase Water Feature Reservoirs The Oase Heavy Duty reservoirs are a simple one piece solution providing water storage and support for water features. Specifically designed to overcome the typical problems of reservoir installations, these reservoirs include water pipe channels to route pipe work from a pump concealed in the water storage area to connections under your water feature and a cover plate to allow access to the pump for installation and cleaning. The 2 larger models feature a notched exit point for the pump mains cable and are particularly suitable for a large single or multiple smaller features on one base, with the channels accepting up to 3 × 19 mm pipes on the Round 80 and 3 × 38 mm pipes on the Square 120. Once installed the entire base can be covered with cobbles to create the perfect finish. Manufactured from UV stable HDPE and covered by a 2 year guarantee. |
Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you.

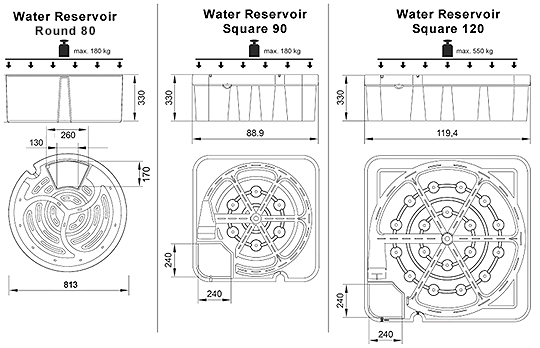

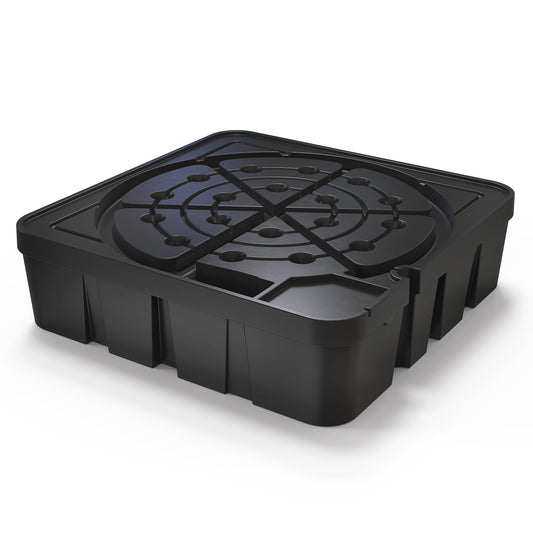

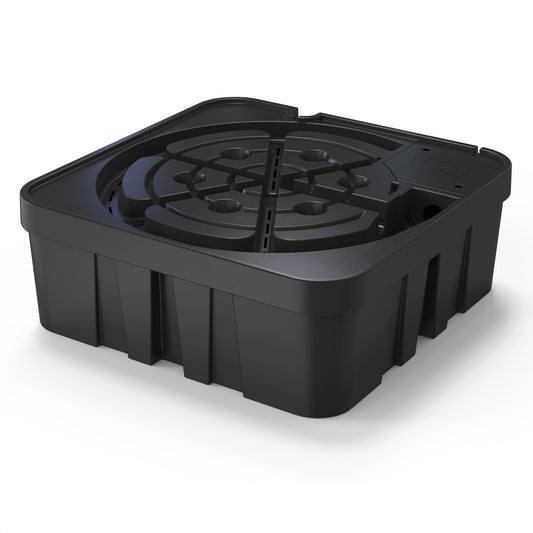

| | Length | Width | Dia | Height | Volume | Max Weight | | Water Reservoir Round 80 | - | - | 813mm | 330mm | 120 litre | 180Kg | | Water Reservoir Square 90 | 889mm | 889mm | 813mm | 330mm | 200 litre | 180Kg | | Water Reservoir Square 120 | 1194mm | 1194mm | - | 330mm | 290 litre | 550Kg |
|
|
 |
 Oase Auto Fill KitThe Oase Auto Fill Kit is a simple solution for automatically topping up a water feature sump or pump chamber. Evaporation or "splash out" can cause the water level within your pond or water feature to fall over time. With the installation of an Auto Fill Kit which is connected to a mains water supply, small amounts of water can be added at a time reducing the need for manual top-ups.
The Oase Auto Fill Kit uses a simple and reliable "toilet cistern" type float valve which can be fitted to the flat surface of a plastic reservoir (through a 22mm diameter hole) and then connected to a mains water feed pipe.
The Oase Auto Fill Kit Includes:
• A float valve with a range of 38 - 45 mm between the lowest and the highest level water points
• A "Snap" type hose connector
Oase Auto Fill Kit Technical Limits
• Maximum water pressure : 5 bar (72 PSI)
• Maximum flowrate 340 litres per hour (75 gallons per hour) |
|
|
