Hozelock EasyClear Spares

You Are Here : Spare Parts > Hozelock Spare Parts > Hozelock EasyClear Spares

Hozelock EasyClear Filter Spare Parts

Hozelock EasyClear Filter Spare Parts

The Hozelock EasyClear Filter spares that are currently available include replacement impellers (Rotor Assembly's), Replacement Pump Chambers, Fountain Extension Kits, Replacement UV Bulbs, Annual Service Kits and K1 biomedia bags, elbowed outlet, fountain valve, waterfall valve

Spare Parts - Quick Links

Hozelock EasyClear Filter Manuals

Hozelock EasyClear Spares

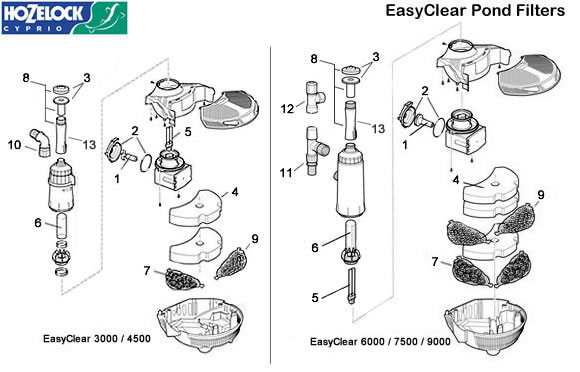

Diagram - Part 1

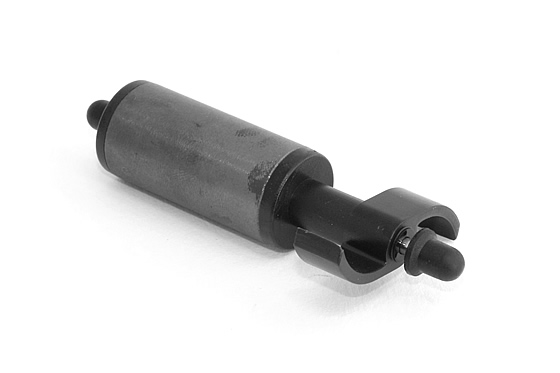

HozelockEasyclear 3000 / 4500 impeller (Rotor Assembly) (3418)
Our Ref: HZS052 - Manufacturers Ref: 100-001-551

Diagram Part Ref: 1
Click to Enlarge an image of HozelockEasyclear 3000 / 4500 impeller (Rotor Assembly) (3418)Large image of HozelockEasyclear 3000 / 4500 impeller (Rotor Assembly) (3418)
Roll over to zoom
Our Price:
£35.10
 Quantity:

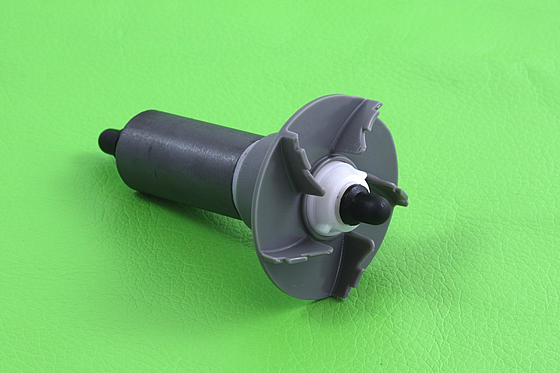

HozelockEasyclear 6000 / 7500 impeller (Rotor Assembly) (1681)
Our Ref: HZS120 - Manufacturers Ref: 100-000-366

Diagram Part Ref: 1

Availability - Currently only 1 in stock


Click to Enlarge an image of HozelockEasyclear 6000 / 7500 impeller (Rotor Assembly) (1681)Large image of HozelockEasyclear 6000 / 7500 impeller (Rotor Assembly) (1681)
Roll over to zoom
Our Price:
£34.19
 Quantity:

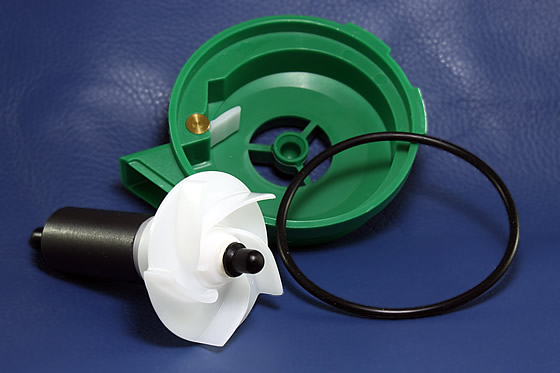

HozelockEasyclear 9000 Impeller (Rotor Assembly) (3439)
Our Ref: HZS054 - Manufacturers Ref: 100-001-555

Diagram Part Ref: 1
Click to Enlarge an image of HozelockEasyclear 9000 Impeller (Rotor Assembly) (3439)Large image of HozelockEasyclear 9000 Impeller (Rotor Assembly) (3439)
Roll over to zoom
Our Price:
£33.29
 Quantity:

Hozelock EasyClear Spares
Diagram - Part 2

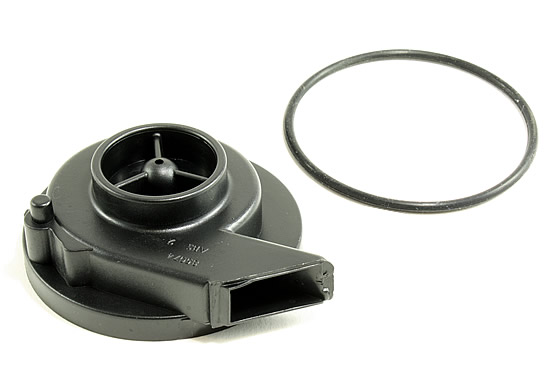

HozelockEasyclear 3000 / 4500 / 6000 / 7500 Pump Chamber (Z10045)
Our Ref: HZS058 - Manufacturers Ref: 100-002-249

Diagram Part Ref: 2

Availability - Currently only 1 in stock


Click to Enlarge an image of HozelockEasyclear 3000 / 4500 / 6000 / 7500 Pump Chamber (Z10045)Large image of HozelockEasyclear 3000 / 4500 / 6000 / 7500 Pump Chamber (Z10045)
Roll over to zoom
Our Price:
£12.59
 Quantity:

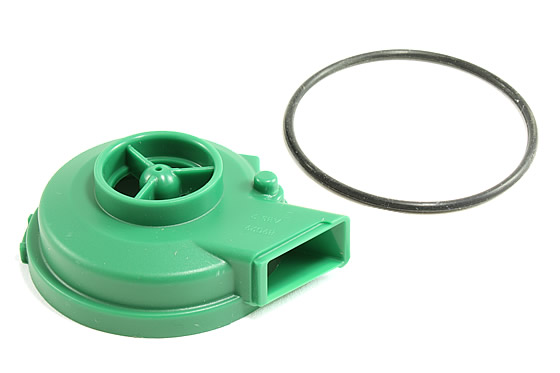

HozelockEasyclear 9000 Pump Chamber (Z10046)
Our Ref: HZS059 - Manufacturers Ref: 100-002-250

Diagram Part Ref: 2

Availability - Currently only 1 in stock


Click to Enlarge an image of HozelockEasyclear 9000 Pump Chamber (Z10046)Large image of HozelockEasyclear 9000 Pump Chamber (Z10046)
Roll over to zoom
Our Price:
£12.59
 Quantity:

Hozelock EasyClear Spares
Diagram - Part 3

Easyclear 3000 / 4500 / 6000 / 7500 / 9000 Fountain Head Set (Z31785)
Our Ref: HZS068

Includes: 2 Tier Daisy, 3 Tier Daisy and Bell Jet


Unfortunately this product is currently unavailable from the manufacturers
Click to Enlarge an image of Easyclear 3000 / 4500 / 6000 / 7500 / 9000 Fountain Head Set (Z31785)Large image of Easyclear 3000 / 4500 / 6000 / 7500 / 9000 Fountain Head Set (Z31785)
Roll over to zoom
Unfortunately we understand this part may have been discontinued, it may be worth contacting the manufacture to confirm whether it is still available. Hozelock can be contacted using the details below:

See Part 8 Below

Hozelock EasyClear Spares
Diagram - Part 4

HozelockEasyclear Replacement Foam - Single (2009 Onwards) (1408)
Our Ref: HZS056 - Manufacturers Ref: 100-000-195

Diagram Part Ref: 4
Click to Enlarge an image of HozelockEasyclear Replacement Foam - Single (2009 Onwards) (1408)Large image of HozelockEasyclear Replacement Foam - Single (2009 Onwards) (1408)
Roll over to zoom
Our Price:
£12.59
 Quantity:

Hozelock EasyClear Spares
Diagram - Part 5

5w - 2 Pin PLS TUV Ultra Violet Bulb
Our Ref: TMB010

Diagram Part Ref: 5

(For Easyclear 3000)
Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of 5w - 2 Pin PLS TUV Ultra Violet BulbLarge image of 5w - 2 Pin PLS TUV Ultra Violet Bulb
Roll over to zoom
Our Price:
£8.99
 Quantity:

UV Bulb Specification
• Description : Generic 5w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 108mm
• Length - Glass : 66mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm
7w - 2 Pin PLS TUV Ultra Violet Bulb
Our Ref: TMB026

Diagram Part Ref: 5

(For Easyclear 4500)
Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of 7w - 2 Pin PLS TUV Ultra Violet BulbLarge image of 7w - 2 Pin PLS TUV Ultra Violet Bulb
Roll over to zoom
Our Price:
£9.98
 Quantity:

UV Bulb Specification
• Description : Generic 7w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 136mm
• Length - Glass : 96mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm
9w PLS UV Bulb (2 Pin) (was HZB007) - 1520X
Our Ref: TMB031 - Manufacturers Ref: 100-000-253

Diagram Part Ref: 5

(For Easyclear 6000)
Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of 9w PLS UV Bulb (2 Pin) (was HZB007) - 1520XLarge image of 9w PLS UV Bulb (2 Pin) (was HZB007) - 1520X
Roll over to zoom
Our Price:
£21.98
 Quantity:

UV Bulb Specification
• Description : Hozelock 9w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 168mm
• Length - Glass : 126mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm
11w PLS UV Bulb - (Short version) (2 Pin) (was HZB008) - 1518
Our Ref: TMB038 - Manufacturers Ref: 100-000-251

Diagram Part Ref: 5

(For Easyclear 7500) (1518)
Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of 11w PLS UV Bulb - (Short version) (2 Pin) (was HZB008) - 1518Large image of 11w PLS UV Bulb - (Short version) (2 Pin) (was HZB008) - 1518
Roll over to zoom
Our Price:
£24.98
 Quantity:

UV Bulb Specification
• Description : Hozelock 11w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 175mm
• Length - Glass : 148mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm
13W - 2 Pin PLS TUV Ultra Violet Bulb (Easyclear Specific)
Our Ref: TMB025 - Manufacturers Ref: 100-000-284

Diagram Part Ref: 5

(For Easyclear 9000)
Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of 13W - 2 Pin PLS TUV Ultra Violet Bulb (Easyclear Specific)Large image of 13W - 2 Pin PLS TUV Ultra Violet Bulb (Easyclear Specific)
Roll over to zoom
Our Price:
£29.99
 Quantity:

UV Bulb Specification
• Description : Hozelock 13w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 178mm
• Length - Glass : 140mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm

Hozelock EasyClear Spares
Diagram - Part 6

Hozelock Quartz Sleeve Easyclear - 6000 / 9000 (2009-2015 model 3006 and 3009)
Our Ref: HZQ041 - Manufacturers Ref: 1556 0000

Unfortunately, this product is no longer available from the manufacturers.

Diagram Part Ref: 6
Click to Enlarge an image of Hozelock Quartz Sleeve Easyclear - 6000 / 9000 (2009-2015 model 3006 and 3009)Large image of Hozelock Quartz Sleeve Easyclear - 6000 / 9000 (2009-2015 model 3006 and 3009)
Roll over to zoom

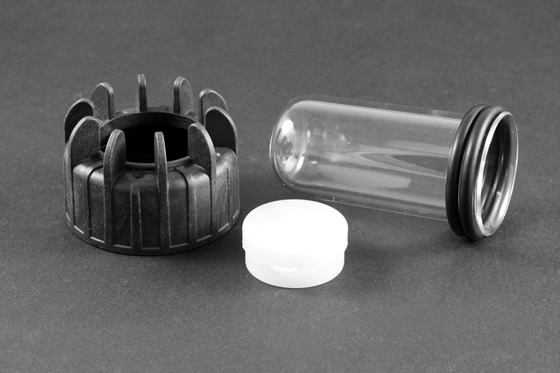

Hozelock Quartz Sleeve Easyclear - 3000 (Mid 2015 Onwards - Model 1760)
Our Ref: HZQ037 - Manufacturers Ref: 100-000-436

Availability - Currently only 2 in stock


Click to Enlarge an image of Hozelock Quartz Sleeve Easyclear - 3000 (Mid 2015 Onwards - Model 1760)Large image of Hozelock Quartz Sleeve Easyclear - 3000 (Mid 2015 Onwards - Model 1760)
Roll over to zoom
Our Price:
£32.75
 Quantity:

Replacement quartz sleeves suitable for the Hozelock Easyclear 3000 (Mid 2015 model 1760) Ultra Violet Clarifiers.
Hozelock Quartz Sleeve Easyclear 1783 - 4500 (2015 Onwards - Models 1762)
Our Ref: HZQ038 - Manufacturers Ref: 100-000-437

Diagram Part Ref: 6
Click to Enlarge an image of Hozelock Quartz Sleeve Easyclear 1783 - 4500 (2015 Onwards - Models 1762)Large image of Hozelock Quartz Sleeve Easyclear 1783 - 4500 (2015 Onwards - Models 1762)
Roll over to zoom
Our Price:
£32.75
 Quantity:

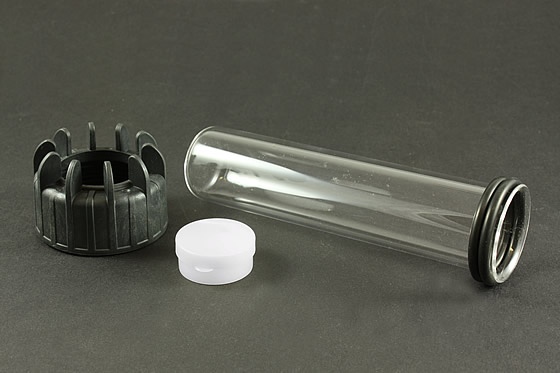

Hozelock Quartz Sleeve Easyclear - 6000/7500/9000 (2015 Onwards - Models 1764/1766/1768) (1784 0000)
Our Ref: HZQ039 - Manufacturers Ref: 100-000-438
Click to Enlarge an image of Hozelock Quartz Sleeve Easyclear - 6000/7500/9000 (2015 Onwards - Models 1764/1766/1768) (1784 0000)Large image of Hozelock Quartz Sleeve Easyclear - 6000/7500/9000 (2015 Onwards - Models 1764/1766/1768) (1784 0000)
Roll over to zoom
Our Price:
£32.75
 Quantity:

Replacement quartz sleeves suitable for the Hozelock Easyclear 6000/7500/9000 (2015 Onwards - Models 1764/17 Ultra Violet Clarifiers and has a threaded fitting

Hozelock EasyClear Spares
Diagram - Part 7

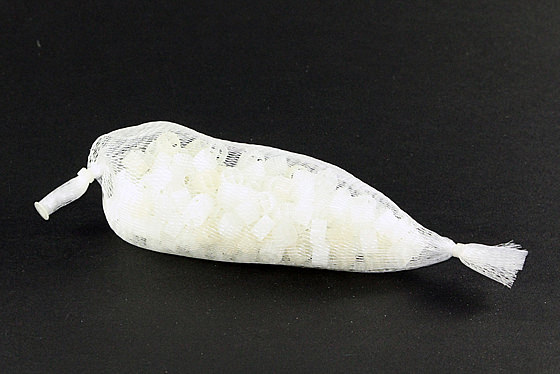

HozelockEasyclear K1 Media Bag - Single (Z10047)
Our Ref: HZS066 - Manufacturers Ref: 100-002-251

Diagram Part Ref: 7
Click to Enlarge an image of HozelockEasyclear K1 Media Bag - Single (Z10047)Large image of HozelockEasyclear K1 Media Bag - Single (Z10047)
Roll over to zoom
Our Price:
£6.74
 Quantity:

Hozelock EasyClear Spares
Diagram - Part 8

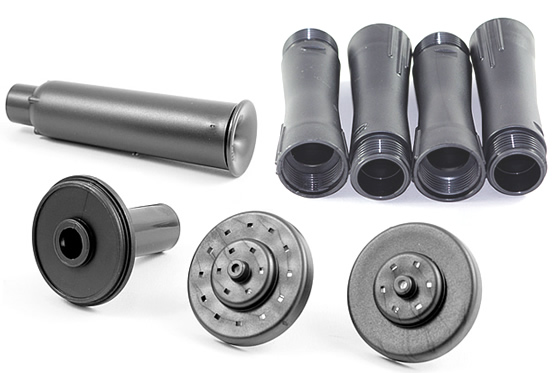

HozelockEasyclear 3000 / 4500 / 6000 / 7500 / 9000 Fountain Head Set and Tubes (Z31785)
Our Ref: HZS057 - Manufacturers Ref: 100-002-322

Includes: Bell Jet, 2 Tier Daisy and 3 Tier Daisy and 4 Fountain Tubes (10cm high)
Click to Enlarge an image of HozelockEasyclear 3000 / 4500 / 6000 / 7500 / 9000 Fountain Head Set and Tubes (Z31785)Large image of HozelockEasyclear 3000 / 4500 / 6000 / 7500 / 9000 Fountain Head Set and Tubes (Z31785)
Roll over to zoom
Our Price:
£12.59
 Quantity:

Hozelock EasyClear Spares
Diagram - Part 9

HozelockEasyclear Gravel Media Bag - Single (Z10048)
Our Ref: HZS080 - Manufacturers Ref: 100-002-252

Diagram Part Ref: 9
Click to Enlarge an image of HozelockEasyclear Gravel Media Bag - Single (Z10048)Large image of HozelockEasyclear Gravel Media Bag - Single (Z10048)
Roll over to zoom
Our Price:
£5.40
 Quantity:

Hozelock EasyClear Spares
Diagram - Part 10

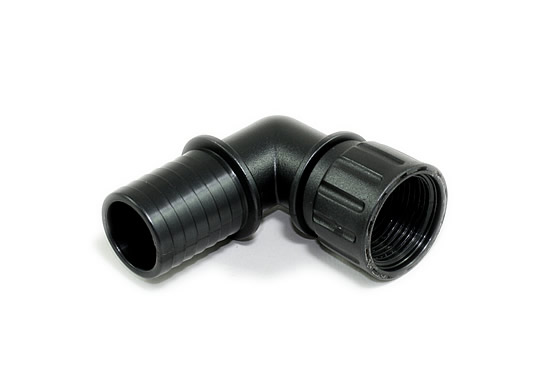

HozelockEasyclear 3000 / 4500 Elbowed Outlet (90 degree)
Our Ref: HZS081

Availability - Currently only 2 in stock


Click to Enlarge an image of HozelockEasyclear 3000 / 4500 Elbowed Outlet (90 degree)Large image of HozelockEasyclear 3000 / 4500 Elbowed Outlet (90 degree)
Roll over to zoom
Our Price:
£4.99
 Quantity:

Hozelock EasyClear Spares
Diagram - Part 11

Easyclear 6000/7500/9000 Waterfall Outlet Valve
Our Ref: HZS082

Unfortunately, this product is no longer available from the manufacturers.
Click to Enlarge an image of Easyclear 6000/7500/9000 Waterfall Outlet ValveLarge image of Easyclear 6000/7500/9000 Waterfall Outlet Valve
Roll over to zoom

Hozelock EasyClear Spares
Diagram - Part 12

HozelockEasyclear 6000/7500/9000 Fountain Valve
Our Ref: HZS083

Unfortunately, this product is no longer available from the manufacturers.
Click to Enlarge an image of HozelockEasyclear 6000/7500/9000 Fountain ValveLarge image of HozelockEasyclear 6000/7500/9000 Fountain Valve
Roll over to zoom

Hozelock EasyClear Spares
Diagram - Part 13

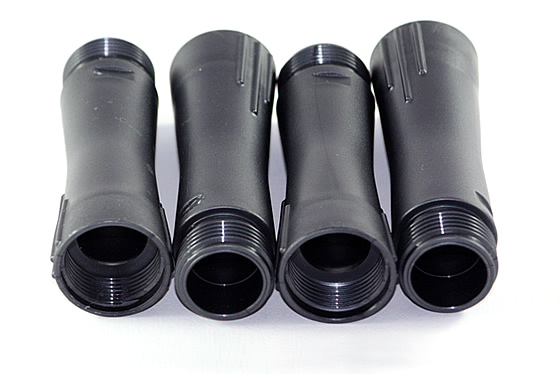

HozelockEasyclear 3000 / 4500 / 6000 / 7500 / 9000 Fountain Tube Set (4 pack)
Our Ref: HZS067

Diagram Part Ref: 13

Availability - Currently only 1 in stock


Click to Enlarge an image of HozelockEasyclear 3000 / 4500 / 6000 / 7500 / 9000 Fountain Tube Set (4 pack)Large image of HozelockEasyclear 3000 / 4500 / 6000 / 7500 / 9000 Fountain Tube Set (4 pack)
Roll over to zoom
Our Price:
£3.98
 Quantity:

Includes: 4 fountain stem tubes ( 10cm high)
