Oase BioSmart 14000 / 16000 Filter Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Filter Spare Parts > Oase BioSmart Filter Spare Parts > Oase BioSmart 14000 / 16000 Filter Spare Parts

Oase Biosmart 14000 - 16000 Filter Spare Parts

Oase Biosmart 14000 - 16000 Filter Spare Parts

The Biosmart 14000 - 16000 spares that are currently available are the main lids, thermometers, inner covers, replacement red foams, replacement blue foams, foam holders, main tanks, hosetail connectors, complete uv assemblies, uv electrical heads, replacement uv bulbs, uv quartz sleeves, quartz sealing sets and uv bodey chambers

Spare Parts - Quick Links

Oase BioSmart 14000 / 16000 Filter Spare Parts

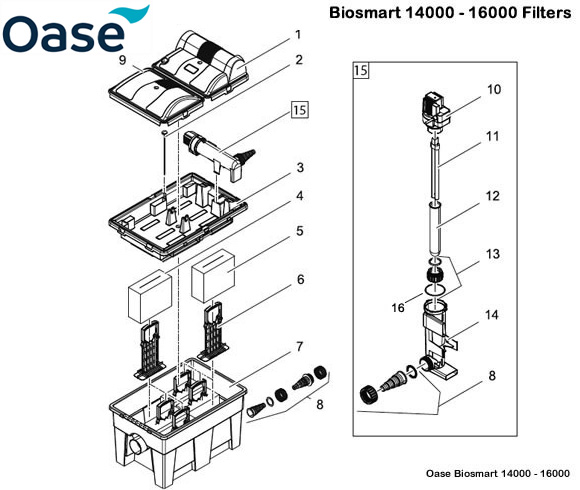

Diagram - Part 1

Oase BioSmart 5000 / 7000 / 8000 - Main Lid - 14000 / 16000 UV Lid Cover (29404)
Our Ref: OAS500 - Manufacturers Ref: 29404

Diagram Part Ref: 1

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioSmart 5000 / 7000 / 8000 - Main Lid - 14000 / 16000 UV Lid Cover (29404) Large image of Oase BioSmart 5000 / 7000 / 8000 - Main Lid - 14000 / 16000 UV Lid Cover (29404)
Roll over to zoom
Our Price:
£10.38
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 2

Oase Filter Thermometer (29594 / 26970)
Our Ref: OAS501 - Manufacturers Ref: 29594

Diagram Part Ref: 2
Click to Enlarge an image of Oase Filter Thermometer (29594 / 26970)Large image of Oase Filter Thermometer (29594 / 26970)
Roll over to zoom
Our Price:
£4.00
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 3

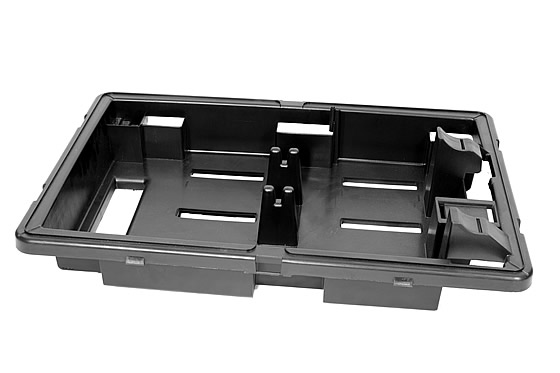

Oase BioSmart 14000 / 16000 - Inner Cover (25731)
Our Ref: OAS512 - Manufacturers Ref: 25731

Diagram Part Ref: 3

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioSmart 14000 / 16000 - Inner Cover (25731)Large image of Oase BioSmart 14000 / 16000 - Inner Cover (25731)
Roll over to zoom
Our Price:
£14.15
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 4

Oase BioSmart 5000 - 16000 - Filter Foam - RED 35791 (was 29401)
Our Ref: OAS032 - Manufacturers Ref: 35791

Diagram Part Ref: 4
Click to Enlarge an image of Oase BioSmart 5000 - 16000 - Filter Foam - RED 35791 (was 29401)Large image of Oase BioSmart 5000 - 16000 - Filter Foam - RED 35791 (was 29401)
Roll over to zoom
Our Price:
£14.57
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 5

Oase BioSmart 5000 - 16000 - Filter Foam - BLUE 35792 (was 25760)
Our Ref: OAS033 - Manufacturers Ref: 35792

Diagram Part Ref: 5
Click to Enlarge an image of Oase BioSmart 5000 - 16000 - Filter Foam - BLUE 35792 (was 25760)Large image of Oase BioSmart 5000 - 16000 - Filter Foam - BLUE 35792 (was 25760)
Roll over to zoom
Our Price:
£14.57
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 6

Oase BioSmart 14000 / 16000 - Foam Holder / Handle (Single) (34899)
Our Ref: OAS504 - Manufacturers Ref: 34899

Diagram Part Ref: 6
Click to Enlarge an image of Oase BioSmart 14000 / 16000 - Foam Holder / Handle (Single) (34899) Large image of Oase BioSmart 14000 / 16000 - Foam Holder / Handle (Single) (34899)
Roll over to zoom
Our Price:
£3.58
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 7

Oase BioSmart 14000 / 16000 - Filter Tank (25729)
Our Ref: OAS506 - Manufacturers Ref: 25729

Diagram Part Ref: 7

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioSmart 14000 / 16000 - Filter Tank (25729)Large image of Oase BioSmart 14000 / 16000 - Filter Tank (25729)
Roll over to zoom
Our Price:
£26.56
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 8

Oase BioSmart 14000 / 16000 - Hosetail Set (35204)
Our Ref: OAS507 - Manufacturers Ref: 35204

Diagram Part Ref: 8
Click to Enlarge an image of Oase BioSmart 14000 / 16000 - Hosetail Set (35204) Large image of Oase BioSmart 14000 / 16000 - Hosetail Set (35204)
Roll over to zoom
Our Price:
£15.11
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 9

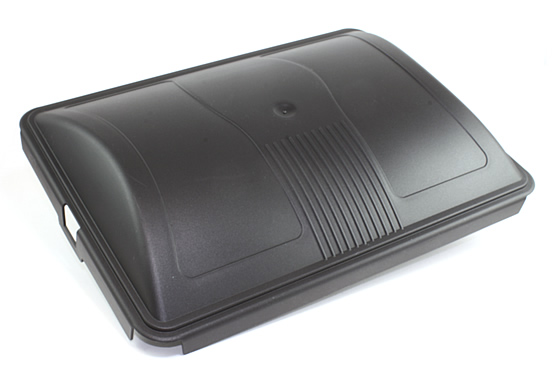

Oase BioSmart 14000 / 16000 - Plain Lid Cover (29405)
Our Ref: OAS513 - Manufacturers Ref: 29405

Diagram Part Ref: 3

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioSmart 14000 / 16000 - Plain Lid Cover (29405)Large image of Oase BioSmart 14000 / 16000 - Plain Lid Cover (29405)
Roll over to zoom
Our Price:
£7.19
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 10

Oase BioSmart UVC 7W / 9W / 11W - Head Unit (15665)
Our Ref: OAS406 - Manufacturers Ref: 15665

Diagram Part Ref: 10
Click to Enlarge an image of Oase BioSmart UVC 7W / 9W / 11W - Head Unit (15665)Large image of Oase BioSmart UVC 7W / 9W / 11W - Head Unit (15665)
Roll over to zoom
Our Price:
£52.13
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 11

Oase - 11w PLS UV Bulb (2 Pin) (56112)
Our Ref: TMB019 - Manufacturers Ref: 56112

Diagram Part Ref: 11

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 11w PLS UV Bulb (2 Pin) (56112)Large image of Oase - 11w PLS UV Bulb (2 Pin) (56112)
Roll over to zoom
Our Price:
£26.99
 Quantity:

UV Bulb Specification
• Description : Oase 11w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 234mm
• Length - Glass : 194mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 12

Oase BioSmart 5000 - 7000 / 8000 Quartz Sleeve (13312 was 22622)
Our Ref: OAQ001 - Manufacturers Ref: 13312

Add Oase Silicone Grease - 10ml (+ £5.38)

Diagram Part Ref: 12
Click to Enlarge an image of Oase BioSmart 5000 - 7000 / 8000 Quartz Sleeve (13312 was 22622)Large image of Oase BioSmart 5000 - 7000 / 8000 Quartz Sleeve (13312 was 22622)
Roll over to zoom
Our Price:
£26.56
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 13

Oase BioSmart 14000 / 16000 - Quartz Nut Set (12090)
Our Ref: OAS510 - Manufacturers Ref: 12090

Diagram Part Ref: 12

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioSmart 14000 / 16000 - Quartz Nut Set (12090)Large image of Oase BioSmart 14000 / 16000 - Quartz Nut Set (12090)
Roll over to zoom
Our Price:
£3.58
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 14

Oase BioSmart 14000 / 16000 - UV Housing (34900)
Our Ref: OAS511 - Manufacturers Ref: 34900

Diagram Part Ref: 14

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioSmart 14000 / 16000 - UV Housing (34900)Large image of Oase BioSmart 14000 / 16000 - UV Housing (34900)
Roll over to zoom
Our Price:
£13.22
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 15

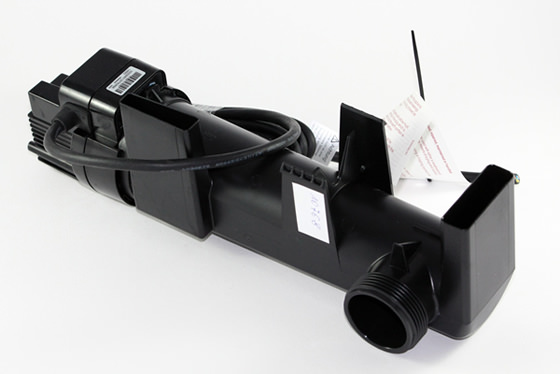

Oase BioSmart 14000 / 16000 - Complete 11W UV Assembly (10768)
Our Ref: OAS514 - Manufacturers Ref: 10768

Diagram Part Ref: 15
(Complete Assembly including a Quartz and 11w bulb)
Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioSmart 14000 / 16000 - Complete 11W UV Assembly (10768)Large image of Oase BioSmart 14000 / 16000 - Complete 11W UV Assembly (10768)
Roll over to zoom
Our Price:
£99.61
 Quantity:

Oase BioSmart 14000 / 16000 Filter Spare Parts
Diagram - Part 16

Oase O-Ring for UVC 7W / 9W / 11W - Head Unit (25969)
Our Ref: OAS212 - Manufacturers Ref: 25969

Diagram Part Ref: 16

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase O-Ring for UVC 7W / 9W / 11W - Head Unit (25969)Large image of Oase O-Ring for UVC 7W / 9W / 11W - Head Unit (25969)
Roll over to zoom
Our Price:
£0.49
 Quantity:
