Oase BioSmart 18000 Pond Filter Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Filter Spare Parts > Oase BioSmart Filter Spare Parts > Oase BioSmart 18000 Pond Filter Spare Parts

Oase Biosmart 18000 Pond Filter Spare Parts

Oase Biosmart 18000 Pond Filter Spare Parts

The Oase Biosmart 18000 Pond Filter spares that are currently available are the lid, filter thermometer, coupling nut, water level indicator body, water level indicator float, water level indicator sealing plug,main tray, green filter foams, red filter foams, blue filter foams, foam holders, gate valve gasket, gate valve support, gate valve handle, oval head screws,gate valve guide, air connector, filter tank, tray clamp, inlet hosetail and deflector pack and 2" screw cap.

Spare Parts - Quick Links


Oase BioSmart 18000 Pond Filter Spare Parts

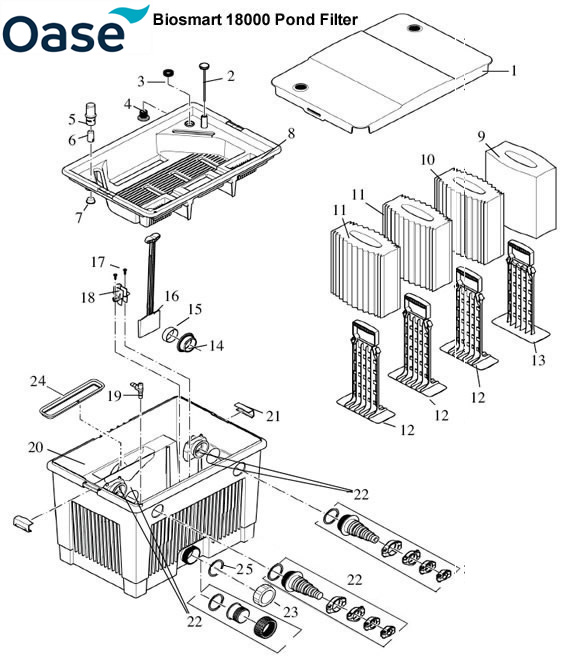

Diagram - Part 1

Oase BioSmart 30000 / BioTec 5.1 / BioTec 10.1 - Lid (Without Grating) (26079)
Our Ref: OAS515 - Manufacturers Ref: 26079

Diagram Part Ref: 1

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioSmart 30000 / BioTec 5.1 / BioTec 10.1 - Lid (Without Grating) (26079)Large image of Oase BioSmart 30000 / BioTec 5.1 / BioTec 10.1 - Lid (Without Grating) (26079)
Roll over to zoom
Our Price:
£31.22
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 2

Oase Filter Thermometer (29594 / 26970)
Our Ref: OAS501 - Manufacturers Ref: 29594

Diagram Part Ref: 2
Click to Enlarge an image of Oase Filter Thermometer (29594 / 26970)Large image of Oase Filter Thermometer (29594 / 26970)
Roll over to zoom
Our Price:
£4.00
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 3

Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - 1 1/2 inch Coupling Nut (26636)
Our Ref: OAS517 - Manufacturers Ref: 26636

Diagram Part Ref: 3

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - 1 1/2 inch Coupling Nut (26636)Large image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - 1 1/2 inch Coupling Nut (26636)
Roll over to zoom
Our Price:
£2.62
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 4

Oase 1/2 inch Grey Union - Single (5542)
Our Ref: OAS518 - Manufacturers Ref: 5542

Diagram Part Ref: 4

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase 1/2 inch Grey Union - Single (5542)Large image of Oase 1/2 inch Grey Union - Single (5542)
Roll over to zoom
Our Price:
£2.62
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 5

Oase BioTec / BioSmart - Water Level Indicator Body (35083)
Our Ref: OAS519 - Manufacturers Ref: 35083

Diagram Part Ref: 5
Click to Enlarge an image of Oase BioTec / BioSmart - Water Level Indicator Body (35083)Large image of Oase BioTec / BioSmart - Water Level Indicator Body (35083)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 6

Oase BioTec / BioSmart - Water Level Indicator Float (35084)
Our Ref: OAS520 - Manufacturers Ref: 35084

Diagram Part Ref: 6

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioTec / BioSmart - Water Level Indicator Float (35084)Large image of Oase BioTec / BioSmart - Water Level Indicator Float (35084)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 7

Oase BioTec / BioSmart - Water Level Indicator Sealing Plug (26418)
Our Ref: OAS521 - Manufacturers Ref: 26418

Diagram Part Ref: 7
Click to Enlarge an image of Oase BioTec / BioSmart - Water Level Indicator Sealing Plug (26418)Large image of Oase BioTec / BioSmart - Water Level Indicator Sealing Plug (26418)
Roll over to zoom
Our Price:
£0.49
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 8

Oase BioSmart 18000 / 30000 / BioTec 5.1 - Main Tray (26076)
Our Ref: OAS550 - Manufacturers Ref: 26076

Diagram Part Ref: 8
Unfortunately this product Currently Out of Stock
Please click here to send us your details and we will contact you as soon as it becomes available.
Our Price:
£26.56
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 9

Oase BioSmart 18000 / 30000 Filter Foams - GREEN (56679)
Our Ref: OAS022 - Manufacturers Ref: 56679

Diagram Part Ref: 9
Click to Enlarge an image of Oase BioSmart 18000 / 30000 Filter Foams - GREEN (56679)Large image of Oase BioSmart 18000 / 30000 Filter Foams - GREEN (56679)
Roll over to zoom
Our Price:
£14.57
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 10

Oase BioSmart 18000 / 30000 Filter Foams - RED (56677)
Our Ref: OAS021 - Manufacturers Ref: 56677

Diagram Part Ref: 10
Click to Enlarge an image of Oase BioSmart 18000 / 30000 Filter Foams - RED (56677)Large image of Oase BioSmart 18000 / 30000 Filter Foams - RED (56677)
Roll over to zoom
Our Price:
£14.57
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 11

Oase BioSmart 18000 / 30000 Filter Foams - BLUE (56678)
Our Ref: OAS020 - Manufacturers Ref: 56678

Diagram Part Ref: 11
Click to Enlarge an image of Oase BioSmart 18000 / 30000 Filter Foams - BLUE (56678)Large image of Oase BioSmart 18000 / 30000 Filter Foams - BLUE (56678)
Roll over to zoom
Our Price:
£14.57
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 12

Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Foam Holder / Handle - Blue Open (Single) (35047)
Our Ref: OAS531 - Manufacturers Ref: 35047

Diagram Part Ref: 12

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Foam Holder / Handle - Blue Open (Single) (35047)Large image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Foam Holder / Handle - Blue Open (Single) (35047)
Roll over to zoom
Our Price:
£8.04
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 13

Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Foam Holder / Handle - Closed Black (Single) (35082)
Our Ref: OAS530 - Manufacturers Ref: 35082

Diagram Part Ref: 13
Click to Enlarge an image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Foam Holder / Handle - Closed Black (Single) (35082)Large image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Foam Holder / Handle - Closed Black (Single) (35082)
Roll over to zoom
Our Price:
£6.23
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 14

Oase BioTec / BioSmart - Gate Valve Sealing Gasket (26209)
Our Ref: OAS526 - Manufacturers Ref: 26209

Diagram Part Ref: 14
Click to Enlarge an image of Oase BioTec / BioSmart - Gate Valve Sealing Gasket (26209)Large image of Oase BioTec / BioSmart - Gate Valve Sealing Gasket (26209)
Roll over to zoom
Our Price:
£3.58
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 15

Oase BioTec / BioSmart - Gate Valve Support Sleeve Gasket (35103)
Our Ref: OAS525 - Manufacturers Ref: 35103

Diagram Part Ref: 15
Click to Enlarge an image of Oase BioTec / BioSmart - Gate Valve Support Sleeve Gasket (35103)Large image of Oase BioTec / BioSmart - Gate Valve Support Sleeve Gasket (35103)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 16

Oase BioTec / BioSmart - Gate Valve Plate / Handle (35085)
Our Ref: OAS524 - Manufacturers Ref: 35085

Diagram Part Ref: 16
Click to Enlarge an image of Oase BioTec / BioSmart - Gate Valve Plate / Handle (35085)Large image of Oase BioTec / BioSmart - Gate Valve Plate / Handle (35085)
Roll over to zoom
Our Price:
£3.58
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 17

Oase Oval Head Screw V2A Din 7981 4.8 X 19 - Single (22853)
Our Ref: OAS331 - Manufacturers Ref: 22853

Diagram Part Ref: 11
Click to Enlarge an image of Oase Oval Head Screw V2A Din 7981 4.8 X 19 - Single (22853)Large image of Oase Oval Head Screw V2A Din 7981 4.8 X 19 - Single (22853)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 18

Oase BioTec / BioSmart - Guiding Gate Valve (35089)
Our Ref: OAS523 - Manufacturers Ref: 35089

Diagram Part Ref: 18
Click to Enlarge an image of Oase BioTec / BioSmart - Guiding Gate Valve (35089)Large image of Oase BioTec / BioSmart - Guiding Gate Valve (35089)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 19

Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Air Connector (35087)
Our Ref: OAS533 - Manufacturers Ref: 35087

Diagram Part Ref: 19

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Air Connector (35087)Large image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Air Connector (35087)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 20

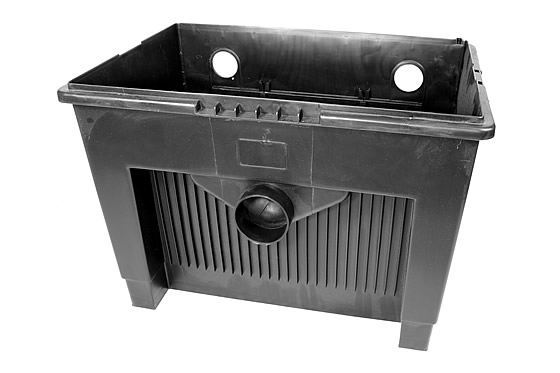

Oase BioTec 5.1 - Filter Tank (26075)
Our Ref: OAS551 - Manufacturers Ref: 26075

Diagram Part Ref: 20

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioTec 5.1 - Filter Tank (26075)Large image of Oase BioTec 5.1 - Filter Tank (26075)
Roll over to zoom
Our Price:
£48.36
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 21

Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Tray Clamp (Single) (35086)
Our Ref: OAS528 - Manufacturers Ref: 35086

Diagram Part Ref: 21
Click to Enlarge an image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Tray Clamp (Single) (35086)Large image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Tray Clamp (Single) (35086)
Roll over to zoom
Our Price:
£1.34
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 22

Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Inlet Hosetail And Deflector Pack (Pair) (35183 / 22759)
Our Ref: OAS529 - Manufacturers Ref: 22759

Diagram Part Ref: 22
Click to Enlarge an image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Inlet Hosetail And Deflector Pack (Pair) (35183 / 22759)Large image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Inlet Hosetail And Deflector Pack (Pair) (35183 / 22759)
Roll over to zoom
Our Price:
£12.26
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 23

Oase 2 inch Screw Cap (25993)
Our Ref: OAS470 - Manufacturers Ref: 25993

Diagram Part Ref: 23
(Cap Only - Gasket not included)
Click to Enlarge an image of Oase 2 inch Screw Cap (25993)Large image of Oase 2 inch Screw Cap (25993)
Roll over to zoom
Our Price:
£2.18
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 24

Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Internal Outlet Gasket (27846)
Our Ref: OAS534 - Manufacturers Ref: 71419

Diagram Part Ref: 24
Click to Enlarge an image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Internal Outlet Gasket (27846)Large image of Oase BioSmart 18000 / 30000 / BioTec 5.1 / 10.1 - Internal Outlet Gasket (27846)
Roll over to zoom
Our Price:
£1.34
 Quantity:

Oase BioSmart 18000 Pond Filter Spare Parts
Diagram - Part 25

Oase 2 inch Flat Hose Tail Gasket (28981 was 24192)
Our Ref: OAS978 - Manufacturers Ref: 28981

Diagram Part Ref: 25
Click to Enlarge an image of Oase 2 inch Flat Hose Tail Gasket (28981 was 24192)Large image of Oase 2 inch Flat Hose Tail Gasket (28981 was 24192)
Roll over to zoom
Our Price:
£1.22
 Quantity:
