Evolution Aqua EvoUV 75w Ultra Violet Clarifier

You Are Here : Pond Products > Pumping and Filtering your Pond > Pond Ultra Violet Lights > Evolution Aqua EvoUV Clarifiers > Evolution Aqua EvoUV 75w Ultra Violet Clarifier


Large image of Evolution Aqua EvoUV 75w Ultra Violet Clarifier

Close this enlarged image of the Evolution Aqua EvoUV 75w Ultra Violet Clarifier

Our Price:
£229.94

Quantity:

Evolution Aqua EvoUV 75w Ultra Violet Clarifier

Our Ref: EAU024
Manufacturers Ref: UV75CE
Feefo logo

Availability - Currently only 2 in stock

Free Next Working Day Delivery Upgrade
(Same day dispatch if ordered by 2pm Monday - Friday) - UK Mainland Only

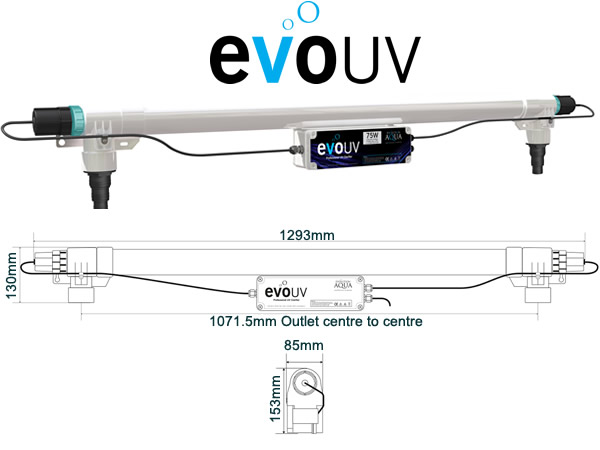

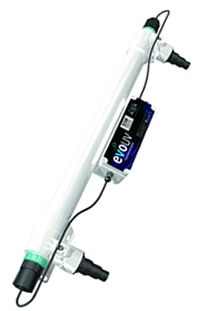

New for 2021 the EvoUV 75w is a fully redesigned 75w Ultra Violet Clarifier form Evolution Aqua. Their newest version maintains the high flowrates and energy efficiency of the older models but now has a completely removable and serviceable electrical box. As with their previous versions, the long water chambers on these UVs ensures the water and algae are near to the UV light for as long as possible, making them very efficient units. The EvoUV 75w can be mounted horizontally or vertically to ensure they are suitable for a wide range of installation positions and include mounting brackets. The 2021 version of the EvoUV's also feature an electronic ballast and thermal safety protection system, which ensures that the units will switch off automatically before they overheat, or if they are accidentally run without water passing through. The EvoUV 75w model are supplied with screw threaded hosetails for the connection of 25mm (1"), 32mm (1¼") and 38mm (1½") flexible pipework. Alternatively, the integrated 1½" BSP female screw thread makes them easy to connect to rigid pipework. All models are supplied with 2.2m of mains cable and a 2 year guarantee.

Evolution Aqua EvoUV 75w (2021) Features
• Large body chamber allowing long contact time
• Electronic ballast with thermal safety protection
• Can be mounted horizontally or vertically
• Conventional 75w T8 bulb for low replacement costs
• 2 year guarantee

Evolution Aqua EvoUV Clarifiers - Product Sizing

Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you.

U.V. Model
Max Pond Volume Litres (Galls)
(Goldfish or Koi)
Bulb
Inlet size (mm)
Max Flowrate
LPH (GPH)
Dimensions
Length x Width x Height (mm)
EvoUV 15w
15000 (3300)
15w
(T8 conventional)
2" Screw Thread
25,32,38 Hosetails
7500 (1650)
536 x 130 x 116
EvoUV 25w
20000 (4400)
25w
(T8 conventional)
2" Screw Thread
25,32,38 Hosetails
10000 (2200)
536 x 130 x 116
EvoUV 30w
30000 (6600)
30w
(T8 conventional)
2" Screw Thread
25,32,38 Hosetails
15000 (3300)
974 x 167 x 86
EvoUV 55w
55000 (12100)
55w
(T8 conventional)
2" Screw Thread
25,32,38 Hosetail
20000 (4400)
974 x 167 x 86
EvoUV 75w
75000 (16500)
75w
(T8 conventional)

2" Screw Thread
25,32,38 Hosetail
25000 (5500)
1280 x 167 x 88
EvoUV 110w
75000 (16500)
2 x 55w
(T8 conventional)
2" Solvent Weld
(No Hosetails)
25000 (5500)
974 x 295 x 197
To calculate the approximate volume of your pond, select the Shape, Unit of Measurement and amount of shading, then press calculate. If you would like to try different combinations, remember to press Reset between calculations.
Pond Shape
Units
Sunlight
Pond Size
Rectangular Metres / Litres Full Sunshine
Circular Feet / Gallons Partly Shaded


Actual Volume
Effective Volume

What is Effective Volume ?
The effective volume is the quantity of water in your pond, plus an allowance for shallow and or ponds exposed to high levels of sunlight. Both of these situations will result in a higher than normal algae growth, and fish pollution. We advise that to ensure your that your equipment is correctly sized, the effective volume be considered the minimum size for the equipment you select. However do remember to check the details of the product you are interested in, to ensure that there are no other allowances or consideration specific to that product are required.
