Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years

You Are Here : Spare Parts > Oase Spare Parts > Oase Ultra Violet Light Spare Parts > Oase Bitron C Ultra Violet Light Spare Parts > Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years

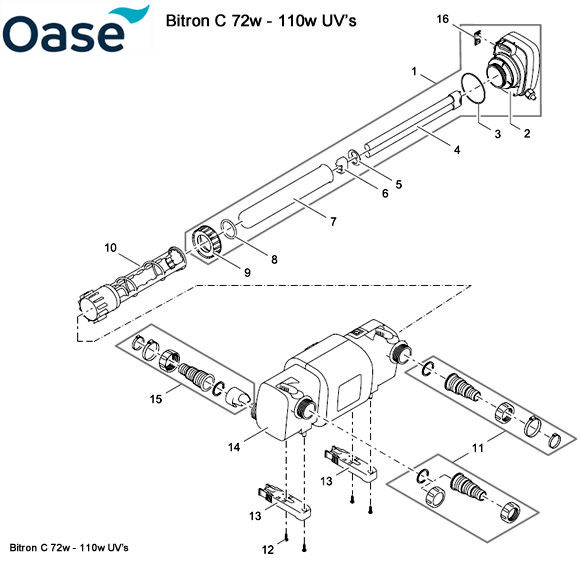

Oase Bitron C 72w - 110w UV Spare Parts

Oase Bitron C 72w - 110w UV Spare Parts

The Oase Bitron C 72w - 110w UV spares that are currently available are the quartz sleeves, cleaning impellors, main body housings, body feet, inlet hosetail packs, outlet hosetail packs, quartz retaining nuts, quartz o'rings, electrical end cap o'rings, electrical end caps and complete UV assemblies.

Spare Parts - Quick Links


Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 1

Bitron C 72 - Complete Uv Assembly (30919 was 35333)
Our Ref: OAS731 - Manufacturers Ref: 30919

Diagram Part Ref: 1
Please note that this product is NOT currently available for Next Day Delivery. In some cases we may have to request this part from Oase in Germany, which may slightly increase delivery times
Our Price:
270.25
Quantity:

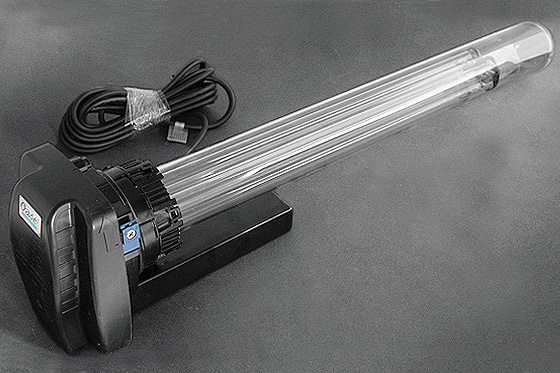

Bitron C 110 - Complete Uv Assembly (30922 was 35334)
Our Ref: OAS732 - Manufacturers Ref: 30922

Diagram Part Ref: 1
Please note that this product is NOT currently available for Next Day Delivery. In some cases we may have to request this part from Oase in Germany, which may slightly increase delivery times
Our Price:
354.41
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 2

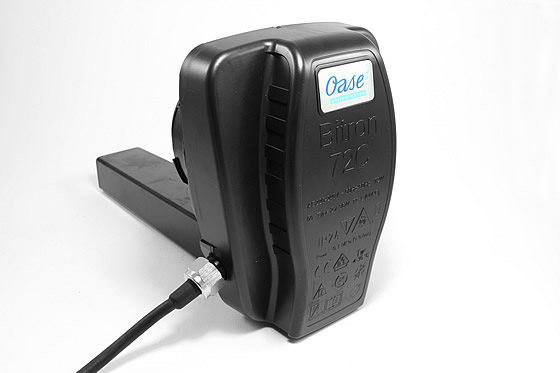

Bitron C 72 - Electrical End Cap (30997) (was 35331)
Our Ref: OAS725 - Manufacturers Ref: 30997

Diagram Part Ref: 2
Click to Enlarge an image of Bitron C 72 - Electrical End Cap (30997) (was 35331)Large image of Bitron C 72 - Electrical End Cap (30997) (was 35331)
Roll over to zoom
Our Price:
154.66
Quantity:

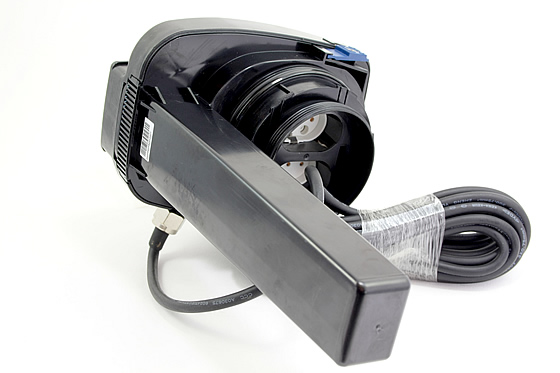

Bitron C 110 - Electrical End Cap (31002) (was 35332)
Our Ref: OAS726 - Manufacturers Ref: 31002

Diagram Part Ref: 2
Click to Enlarge an image of Bitron C 110 - Electrical End Cap (31002) (was 35332)Large image of Bitron C 110 - Electrical End Cap (31002) (was 35332)
Roll over to zoom
Our Price:
176.76
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 3

Bitron C 72 / 110 - Electrical End Cap O'Ring Seal (27148)
Our Ref: OAS720 - Manufacturers Ref: 27148

Diagram Part Ref: 3
Click to Enlarge an image of Bitron C 72 / 110 - Electrical End Cap O'Ring Seal (27148)Large image of Bitron C 72 / 110 - Electrical End Cap O'Ring Seal (27148)
Roll over to zoom
Our Price:
1.66
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 4

Oase - 36W - 4 Pin PL-L TUV Ultra Violet Bulb (55432)
Our Ref: TMB016 - Manufacturers Ref: 55432

Diagram Part Ref: 4
Please note that 2 x 36w bulb are required for a Bitron C 72

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 36W - 4 Pin PL-L TUV Ultra Violet Bulb (55432)Large image of Oase - 36W - 4 Pin PL-L TUV Ultra Violet Bulb (55432)
Roll over to zoom
Our Price:
49.98
Quantity:
Oase - 55W - 4 Pin PL-L TUV Ultra Violet Bulb (56636)
Our Ref: TMB017 - Manufacturers Ref: 56636

Diagram Part Ref: 4
Please note that 2 x 36w bulb are required for a Bitron C 72

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 55W - 4 Pin PL-L TUV Ultra Violet Bulb (56636)Large image of Oase - 55W - 4 Pin PL-L TUV Ultra Violet Bulb (56636)
Roll over to zoom
Our Price:
56.99
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 5

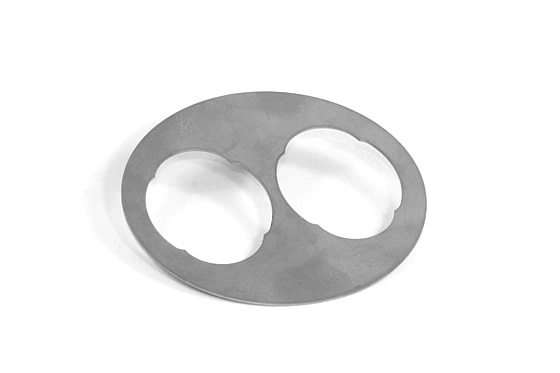

Bitron C 72 - 110 - Lamp Holding Plate 2015 Onwards (19448)
Our Ref: OAS739 - Manufacturers Ref: 19448

Diagram Part Ref: 5
Click to Enlarge an image of Bitron C 72 - 110 - Lamp Holding Plate 2015 Onwards (19448)Large image of Bitron C 72 - 110 - Lamp Holding Plate 2015 Onwards (19448)
Roll over to zoom
Our Price:
2.08
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 6

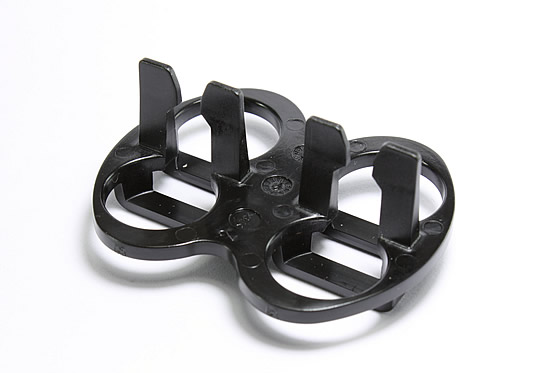

Bitron C 72 - 110 - Lamp Holder / Spacer 2015 Onwards (27129)
Our Ref: OAS743 - Manufacturers Ref: 27129

Diagram Part Ref: 6
Our Price:
4.80
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 7

Bitron C 72 / 110 - Quartz Sleeve (13327)
Our Ref: OAQ004 - Manufacturers Ref: 13327

Diagram Part Ref: 7
Click to Enlarge an image of Bitron C 72 / 110 - Quartz Sleeve (13327)Large image of Bitron C 72 / 110 - Quartz Sleeve (13327)
Roll over to zoom
Our Price:
93.46
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 8

Bitron C 72 / 110 - Quartz O'Ring (27117)
Our Ref: OAS718 - Manufacturers Ref: 27117

Diagram Part Ref: 8
Click to Enlarge an image of Bitron C 72 / 110 - Quartz O'Ring (27117)Large image of Bitron C 72 / 110 - Quartz O'Ring (27117)
Roll over to zoom
Our Price:
2.93
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 9

Bitron C 72 / 110 - Quartz Securing Clamp (35330)
Our Ref: OAS713 - Manufacturers Ref: 35330

Diagram Part Ref: 9
Click to Enlarge an image of Bitron C 72 / 110 - Quartz Securing Clamp (35330)Large image of Bitron C 72 / 110 - Quartz Securing Clamp (35330)
Roll over to zoom
Our Price:
5.05
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 10

Bitron C 72 / 110 - Cleaning Impeller (35327)
Our Ref: OAS702 - Manufacturers Ref: 35327

Diagram Part Ref: 10
Click to Enlarge an image of Bitron C 72 / 110 - Cleaning Impeller (35327)Large image of Bitron C 72 / 110 - Cleaning Impeller (35327)
Roll over to zoom
Our Price:
13.56
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 11

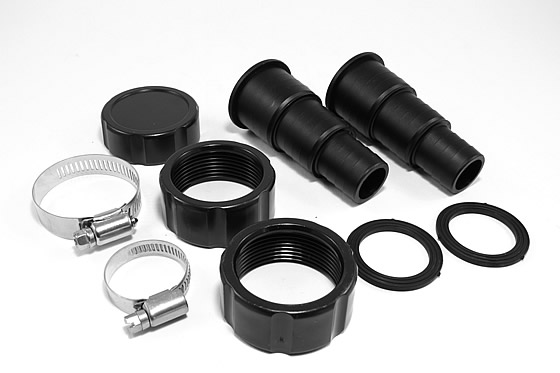

Bitron C 18 / 24 / 36 / 55 / 72 / 110 - Outlet Hosetail Set (35092)
Our Ref: OAS711 - Manufacturers Ref: 35092

Diagram Part Ref: 11
Click to Enlarge an image of Bitron C 18 / 24 / 36 / 55 / 72 / 110 - Outlet Hosetail Set (35092)Large image of Bitron C 18 / 24 / 36 / 55 / 72 / 110 - Outlet Hosetail Set (35092)
Roll over to zoom
Our Price:
10.15
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 12

Oval Head Screw V2A Din 7981 4.8 X 19 (22853)
Our Ref: OAS331 - Manufacturers Ref: 22853

Diagram Part Ref: 12
Our Price:
0.72
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 13

Bitron C 110 - Foot (35335)
Our Ref: OAS707 - Manufacturers Ref: 35335

Diagram Part Ref: 13
Please note that this product is NOT currently available for Next Day Delivery. In some cases we may have to request this part from Oase in Germany, which may slightly increase delivery times
Our Price:
2.93
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 14

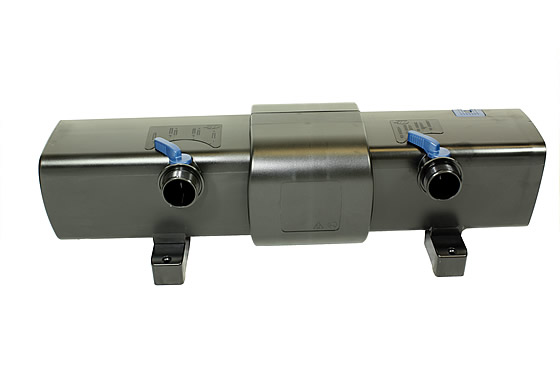

Bitron C 72 / 110 - Main Body Housing (35329)
Our Ref: OAS705 - Manufacturers Ref: 35329

Diagram Part Ref: 14
Click to Enlarge an image of Bitron C 72 / 110 - Main Body Housing (35329)Large image of Bitron C 72 / 110 - Main Body Housing (35329)
Roll over to zoom
Our Price:
121.50
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 15

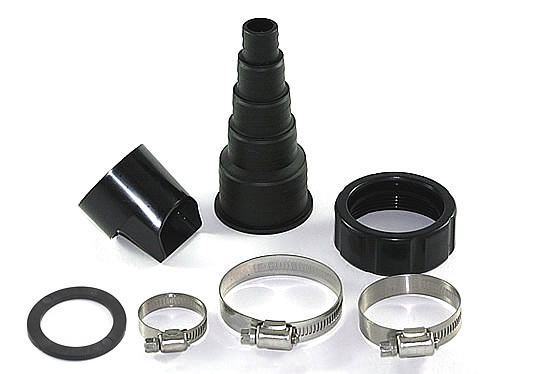

Bitron C 36 / 55 / 72 / 110 - Inlet Hosetail Set (35091)
Our Ref: OAS710 - Manufacturers Ref: 35091

Diagram Part Ref: 15
Click to Enlarge an image of Bitron C 36 / 55 / 72 / 110 - Inlet Hosetail Set (35091)Large image of Bitron C 36 / 55 / 72 / 110 - Inlet Hosetail Set (35091)
Roll over to zoom
Our Price:
11.86
Quantity:

Oase Bitron C 72 - 110 Ultra Violet Light Spare Parts - All Years
Diagram - Part 16

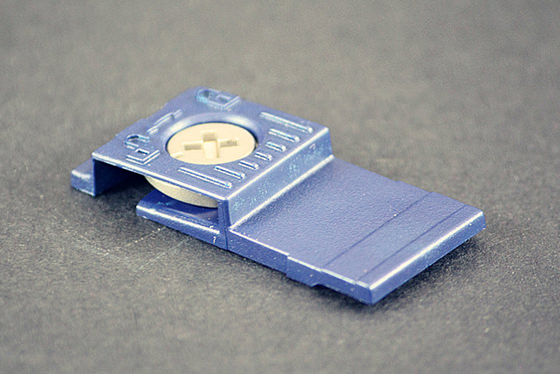

Bitron C 24 - 110 - Locking Lever 2015 Onwards (24188)
Our Ref: OAS742 - Manufacturers Ref: 47817

Diagram Part Ref: 16
Our Price:
3.36
Quantity:
