Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards

You Are Here : Spare Parts > Oase Spare Parts > Oase Ultra Violet Light Spare Parts > Oase Bitron C Ultra Violet Light Spare Parts > Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards

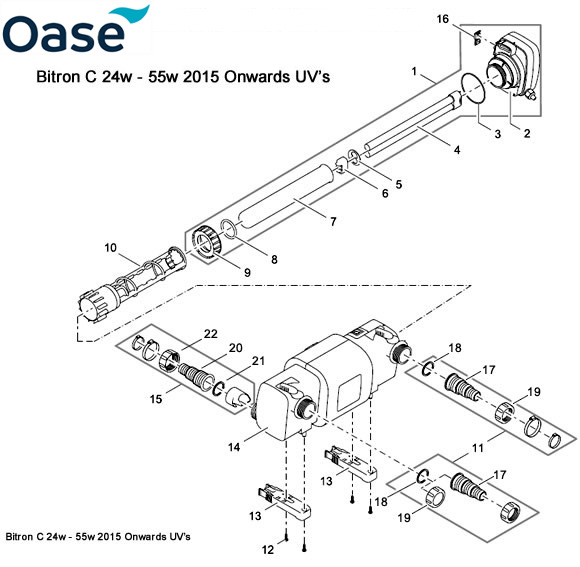

Oase Bitron C 24w - 55w UV 2015 Onwards Spare Parts

Oase Bitron C 24w - 55w UV 2015 Onwards Spare Parts

The Oase Bitron C 24w - 55w UV 2015 Onwards spares that are currently available are the quartz sleeves, cleaning impellors, main body housings, body feet, inlet hosetail packs, outlet hosetail packs, quartz retaining nuts, quartz O rings, electrical end cap O rings, electrical end caps and complete UV assemblies.

Spare Parts - Quick Links


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 1

Oase Bitron C 24 - Complete UV Assembly (30909)
Our Ref: OAS733 - Manufacturers Ref: 30909

Diagram Part Ref: 1
Unfortunately this product Currently Out of Stock
Please click here to send us your details and we will contact you as soon as it becomes available.
Our Price:
£228.67
Quantity:

Oase Bitron C 36 - Complete UV Assembly (30911)
Our Ref: OAS734 - Manufacturers Ref: 30911

Diagram Part Ref: 1

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase Bitron C 36 - Complete UV Assembly (30911)Large image of Oase Bitron C 36 - Complete UV Assembly (30911)
Roll over to zoom
Our Price:
£249.61
Quantity:

Oase Bitron C 55 - Complete UV Assembly - 2015 Onwards (30913)
Our Ref: OAS730 - Manufacturers Ref: 30913

Diagram Part Ref: 12

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Bitron C 55  - Complete UV Assembly - 2015 Onwards (30913)Large image of Oase Bitron C 55  - Complete UV Assembly - 2015 Onwards (30913)
Roll over to zoom
Our Price:
£280.94
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 2

Oase Bitron C 24 - Electrical End Cap (30951) (was 35117)
Our Ref: OAS722 - Manufacturers Ref: 30951

Diagram Part Ref: 2
Click to Enlarge an image of Oase Bitron C 24 - Electrical End Cap (30951) (was 35117)Large image of Oase Bitron C 24 - Electrical End Cap (30951) (was 35117)
Roll over to zoom
Our Price:
£120.50
Quantity:

Oase Bitron C 36 - Electrical End Cap (30985) (was 35118)
Our Ref: OAS723 - Manufacturers Ref: 30985

Diagram Part Ref: 2

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Bitron C 36 - Electrical End Cap (30985) (was 35118)Large image of Oase Bitron C 36 - Electrical End Cap (30985) (was 35118)
Roll over to zoom
Our Price:
£134.81
Quantity:

Oase Bitron C 55 - Electrical End Cap (30989) (was 35119)
Our Ref: OAS724 - Manufacturers Ref: 30989

Diagram Part Ref: 2
Click to Enlarge an image of Oase Bitron C 55 - Electrical End Cap (30989) (was 35119)Large image of Oase Bitron C 55 - Electrical End Cap (30989) (was 35119)
Roll over to zoom
Our Price:
£155.66
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 3

Oase Bitron C 18 / 24 / 36 / 55 - Electrical End Cap O-Ring Seal (73477 was 24850)
Our Ref: OAS719 - Manufacturers Ref: 73477

Diagram Part Ref: 3
Click to Enlarge an image of Oase Bitron C 18 / 24 / 36 / 55 - Electrical End Cap O-Ring Seal (73477 was 24850)Large image of Oase Bitron C 18 / 24 / 36 / 55 - Electrical End Cap O-Ring Seal (73477 was 24850)
Roll over to zoom
Our Price:
£1.22
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 4

Oase - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (56237)
Our Ref: TMB015 - Manufacturers Ref: 56237

Diagram Part Ref: 4

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (56237)Large image of Oase - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (56237)
Roll over to zoom
Our Price:
£48.98
Quantity:

UV Bulb Specification
• Description : Oase 24w PLL UV bulb (4 pins at one end)
• Length - Overall : 321mm
• Length - Excluding Pins : 314mm
• Length - Glass : 290mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Oase - 36W - 4 Pin PL-L TUV Ultra Violet Bulb (55432)
Our Ref: TMB016 - Manufacturers Ref: 55432

Diagram Part Ref: 4

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 36W - 4 Pin PL-L TUV Ultra Violet Bulb (55432)Large image of Oase - 36W - 4 Pin PL-L TUV Ultra Violet Bulb (55432)
Roll over to zoom
Our Price:
£54.98
Quantity:

UV Bulb Specification
• Description : Oase 36w PLL UV bulb (4 pins at one end)
• Length - Overall : 416mm
• Length - Excluding Pins : 409mm
• Length - Glass : 384mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Oase - 55W - 4 Pin PL-L TUV Ultra Violet Bulb (56636)
Our Ref: TMB017 - Manufacturers Ref: 56636

Diagram Part Ref: 4

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 55W - 4 Pin PL-L TUV Ultra Violet Bulb (56636)Large image of Oase - 55W - 4 Pin PL-L TUV Ultra Violet Bulb (56636)
Roll over to zoom
Our Price:
£62.99
Quantity:

UV Bulb Specification
• Description : Oase 55w PLL UV bulb (4 pins at one end)
• Length - Overall : 538mm
• Length - Excluding Pins : 531mm
• Length - Glass : 507mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm

Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 5

Oase Bitron C 24 - 55 - Lamp Holding Plate 2015 Onwards (24232)
Our Ref: OAS738 - Manufacturers Ref: 24232

Diagram Part Ref: 5
Click to Enlarge an image of Oase Bitron C 24 - 55 - Lamp Holding Plate 2015 Onwards (24232)Large image of Oase Bitron C 24 - 55 - Lamp Holding Plate 2015 Onwards (24232)
Roll over to zoom
Our Price:
£1.78
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 6

Oase Bitron C 24 - 55 - Lamp Protector 2015 Onwards (30607)
Our Ref: OAS740 - Manufacturers Ref: 30607

Diagram Part Ref: 6
Click to Enlarge an image of Oase Bitron C 24 - 55 - Lamp Protector 2015 Onwards (30607)Large image of Oase Bitron C 24 - 55 - Lamp Protector 2015 Onwards (30607)
Roll over to zoom
Our Price:
£3.14
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 7

Oase Bitron C 24 Quartz Sleeve - 2015 Onwards (27579)
Our Ref: OAQ011 - Manufacturers Ref: 27579

Add Oase Silicone Grease - 10ml (+ £5.38)

Diagram Part Ref: 7
Click to Enlarge an image of Oase Bitron C 24 Quartz Sleeve - 2015 Onwards (27579)Large image of Oase Bitron C 24 Quartz Sleeve - 2015 Onwards (27579)
Roll over to zoom
Our Price:
£31.22
Quantity:

Oase Bitron C 36 and C 55 Quartz Sleeve - 2015 Onwards (27586)
Our Ref: OAQ012 - Manufacturers Ref: 27586

Add Oase Silicone Grease - 10ml (+ £5.38)

Diagram Part Ref: 7
Length: approximately 505mm
Click to Enlarge an image of Oase Bitron C 36 and C 55 Quartz Sleeve - 2015 Onwards (27586)Large image of Oase Bitron C 36 and C 55 Quartz Sleeve - 2015 Onwards (27586)
Roll over to zoom
Our Price:
£41.71
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 8

Oase Bitron C 18 / 24 / 36 / 55 - Quartz O-Ring (73486 was 26143)
Our Ref: OAS717 - Manufacturers Ref: 73486

Diagram Part Ref: 8
Click to Enlarge an image of Oase Bitron C 18 / 24 / 36 / 55 - Quartz O-Ring (73486 was 26143)Large image of Oase Bitron C 18 / 24 / 36 / 55 - Quartz O-Ring (73486 was 26143)
Roll over to zoom
Our Price:
£2.12
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 9

Oase Bitron C 18 / 24 / 36 / 55 - Quartz Securing Clamp (35113)
Our Ref: OAS712 - Manufacturers Ref: 35113

Diagram Part Ref: 9
Click to Enlarge an image of Oase Bitron C 18 / 24 / 36 / 55 - Quartz Securing Clamp (35113)Large image of Oase Bitron C 18 / 24 / 36 / 55 - Quartz Securing Clamp (35113)
Roll over to zoom
Our Price:
£5.54
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 10

Oase Bitron C 18 / 24 - Cleaning Impeller (42217)
Our Ref: OAS700 - Manufacturers Ref: 42217

Diagram Part Ref: 10
Click to Enlarge an image of Oase Bitron C 18 / 24 - Cleaning Impeller (42217)Large image of Oase Bitron C 18 / 24 - Cleaning Impeller (42217)
Roll over to zoom
Our Price:
£14.14
Quantity:

Oase Bitron C 36 / 55 - Cleaning Impeller (42218)
Our Ref: OAS701 - Manufacturers Ref: 42218

Diagram Part Ref: 10
Click to Enlarge an image of Oase Bitron C 36 / 55 - Cleaning Impeller (42218)Large image of Oase Bitron C 36 / 55 - Cleaning Impeller (42218)
Roll over to zoom
Our Price:
£16.07
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 11

Oase Bitron C 18 / 24 / 36 / 55 / 72 / 110 - Outlet Hosetail Set (35092)
Our Ref: OAS711 - Manufacturers Ref: 35092

Diagram Part Ref: 11
Click to Enlarge an image of Oase Bitron C 18 / 24 / 36 / 55 / 72 / 110 - Outlet Hosetail Set (35092)Large image of Oase Bitron C 18 / 24 / 36 / 55 / 72 / 110 - Outlet Hosetail Set (35092)
Roll over to zoom
Our Price:
£11.34
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 12

Oase Oval Head Screw V2A Din 7981 4.8 X 19 - Single (22853)
Our Ref: OAS331 - Manufacturers Ref: 22853

Diagram Part Ref: 12
Click to Enlarge an image of Oase Oval Head Screw V2A Din 7981 4.8 X 19 - Single (22853)Large image of Oase Oval Head Screw V2A Din 7981 4.8 X 19 - Single (22853)
Roll over to zoom
Our Price:
£0.82
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 13

Oase Bitron C 18 / 24 / 36 / 55 - Foot (35028)
Our Ref: OAS706 - Manufacturers Ref: 35028

Diagram Part Ref: 13
Unfortunately this product Currently Out of Stock
Please click here to send us your details and we will contact you as soon as it becomes available.
Our Price:
£3.14
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 14

Oase Bitron C 18 / 24 - Main Body Housing (35111)
Our Ref: OAS703 - Manufacturers Ref: 35111

Diagram Part Ref: 14

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase Bitron C 18 / 24 - Main Body Housing (35111)Large image of Oase Bitron C 18 / 24 - Main Body Housing (35111)
Roll over to zoom
Our Price:
£93.92
Quantity:

Oase Bitron C 36 / 55 - Main Body Housing (35112)
Our Ref: OAS704 - Manufacturers Ref: 35112

Diagram Part Ref: 14
Click to Enlarge an image of Oase Bitron C 36 / 55 - Main Body Housing (35112)Large image of Oase Bitron C 36 / 55 - Main Body Housing (35112)
Roll over to zoom
Our Price:
£114.76
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 15

Oase Bitron C 18 / 24 - Inlet Hosetail Set (35090)
Our Ref: OAS709 - Manufacturers Ref: 35090

Diagram Part Ref: 15
Click to Enlarge an image of Oase Bitron C 18 / 24 - Inlet Hosetail Set (35090)Large image of Oase Bitron C 18 / 24 - Inlet Hosetail Set (35090)
Roll over to zoom
Our Price:
£10.37
Quantity:

Oase Bitron C 36 / 55 / 72 / 110 - Inlet Hosetail Set (35091)
Our Ref: OAS710 - Manufacturers Ref: 35091

Diagram Part Ref: 15
Click to Enlarge an image of Oase Bitron C 36 / 55 / 72 / 110 - Inlet Hosetail Set (35091)Large image of Oase Bitron C 36 / 55 / 72 / 110 - Inlet Hosetail Set (35091)
Roll over to zoom
Our Price:
£13.22
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 16

Oase Bitron C 24 - 110 - Locking Lever 2015 Onwards (47817 was 24188)
Our Ref: OAS742 - Manufacturers Ref: 47817

Diagram Part Ref: 16
Click to Enlarge an image of Oase Bitron C 24 - 110 - Locking Lever 2015 Onwards (47817 was 24188)Large image of Oase Bitron C 24 - 110 - Locking Lever 2015 Onwards (47817 was 24188)
Roll over to zoom
Our Price:
£3.58
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 17

Oase 1 1/2 inch Black Stepped Hosetail (No Nut Or Washer) (25218)
Our Ref: OAS276 - Manufacturers Ref: 25218

Diagram Part Ref: 17
Click to Enlarge an image of Oase 1 1/2 inch Black Stepped Hosetail (No Nut Or Washer) (25218)Large image of Oase 1 1/2 inch Black Stepped Hosetail (No Nut Or Washer) (25218)
Roll over to zoom
Our Price:
£2.62
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 18

Oase 1 1/2 inch Flat Hose Tail Gasket (19491)
Our Ref: OAS225 - Manufacturers Ref: 19491

Diagram Part Ref: 18
Click to Enlarge an image of Oase 1 1/2 inch Flat Hose Tail Gasket (19491)Large image of Oase 1 1/2 inch Flat Hose Tail Gasket (19491)
Roll over to zoom
Our Price:
£1.34
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 19

Oase 1 1/2 inch Flat Hose Tail Nut (12096)
Our Ref: OAS836 - Manufacturers Ref: 12096

Diagram Part Ref: 19
Click to Enlarge an image of Oase 1 1/2 inch Flat Hose Tail Nut (12096)Large image of Oase 1 1/2 inch Flat Hose Tail Nut (12096)
Roll over to zoom
Our Price:
£1.34
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 20

Oase 1 1/2 inch 24C Inlet Hosetail (No Nut Or Washer) (25218)
Our Ref: OAS276 - Manufacturers Ref: 25218

Diagram Part Ref: 20
Click to Enlarge an image of Oase 1 1/2 inch 24C Inlet Hosetail (No Nut Or Washer) (25218)Large image of Oase 1 1/2 inch 24C Inlet Hosetail (No Nut Or Washer) (25218)
Roll over to zoom
Our Price:
£2.62
Quantity:

Oase 2 inch Bitron 36C - 110C Inlet Hosetail (No Nut Or Washer) (34056)
Our Ref: OAS144 - Manufacturers Ref: 34056

Diagram Part Ref: 20
Click to Enlarge an image of Oase 2 inch Bitron 36C - 110C Inlet Hosetail (No Nut Or Washer) (34056)Large image of Oase 2 inch Bitron 36C - 110C Inlet Hosetail (No Nut Or Washer) (34056)
Roll over to zoom
Our Price:
£2.62
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 21

Oase 1 1/2 inch 24C Flat Hose Tail Gasket (19491)
Our Ref: OAS225 - Manufacturers Ref: 19491

Diagram Part Ref: 21
Click to Enlarge an image of Oase 1 1/2 inch 24C Flat Hose Tail Gasket (19491)Large image of Oase 1 1/2 inch 24C Flat Hose Tail Gasket (19491)
Roll over to zoom
Our Price:
£1.34
Quantity:

Oase 2 inch 36C - 110C Flat Hose Tail Gasket (28981 was 24192)
Our Ref: OAS978 - Manufacturers Ref: 28981

Diagram Part Ref: 21
Click to Enlarge an image of Oase 2 inch 36C - 110C Flat Hose Tail Gasket  (28981 was 24192)Large image of Oase 2 inch 36C - 110C Flat Hose Tail Gasket  (28981 was 24192)
Roll over to zoom
Our Price:
£1.20
Quantity:


Oase Bitron C 24 - 55 Ultra Violet Light Spare Parts - 2015 Onwards
Diagram - Part 22

Oase 1 1/2 inch Hose Tail Nut (12096)
Our Ref: OAS836 - Manufacturers Ref: 12096

Diagram Part Ref: 22
Click to Enlarge an image of Oase 1 1/2 inch Hose Tail Nut (12096)Large image of Oase 1 1/2 inch Hose Tail Nut (12096)
Roll over to zoom
Our Price:
£1.34
Quantity:

Oase 2 inch 36C - 110C Hose Tail Nut (12097)
Our Ref: OAS153 - Manufacturers Ref: 12097

Diagram Part Ref: 22
Click to Enlarge an image of Oase 2 inch 36C - 110C Hose Tail Nut (12097)Large image of Oase 2 inch 36C - 110C Hose Tail Nut (12097)
Roll over to zoom
Our Price:
£1.34
Quantity:


Customers Reviews


spacer

Why Buy From Us

FREE Delivery for Orders Over £50
(Uk Mainland excluding Highlands and Islands of Scotland)
Tick
1000's of Happy CustomersTick
1000's of Products in StockTick
Free Help and Advice from our Experienced Technical StaffTick
Over 20 Years Mail Order ExperienceTick
spacer

Secure Payments

Secure Online Payments
spacer

Follow Us

Manufacturers Details

Oase Pond ProductsHozelock Pond ProductsGordon Low Pond LinersEvolution Aqua Pond ProductsLotus Pond ProductsPontec Pond ProductsBlagdon Interpet Pond Products
Tetra Pond ProductsTAP Pond ProductsSmart Solar Garden ProductsJBL Fish Keeping ProductsAquaHydrotech - Ecoponds Pond ProductsFish mate and Pond Mate Pond ProductsWater Gardening Direct Pond Products
