Oase Proficlear Premium Compact Pond Filter - Pump Fed - ECG Our Ref: OAF118 Manufacturers Ref: 47009

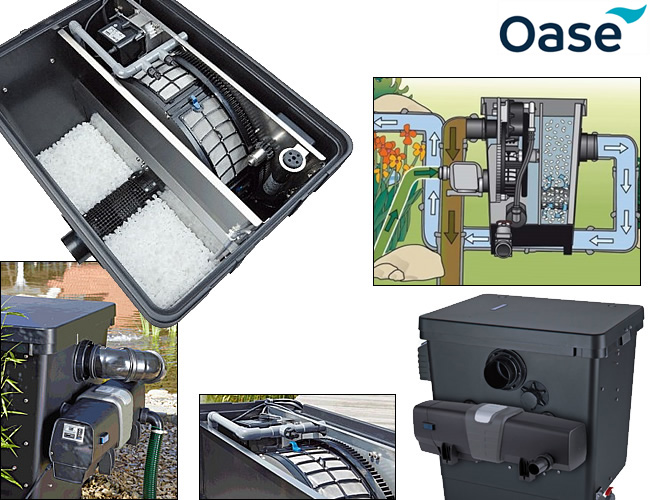

The Oase Proficlear Premium Compact Pump Fed Pond Filter is a brand new filter system combining the self cleaning technology and moving bed filtration principles of Oase Premium Modular Kits. Pond water enters the tank (normally via a Bitron UV which is sold separately) straight in to the centre of the drum and flows out through the fine mesh sieves 80µm (micrometres) in to the tank. Thanks to the drum technology, the debris which is trapped on the inside surface of the sieves is easily and automatically cleaned. An integrated water sensors measure when the drum needs cleaning and triggers the rotation of the drum and activates the water jets, which blast the mesh clean. The debris and water is collected and drains out of the tank to waste. This cleaning process is achieved using a powerful, high-quality pressure pump which is mounted in the base of the tank. The mesh sieves are very easy to remove (no tools required) and the free-wheeling function makes for easy access to the drum interior. Rakes on the inside of the drum help prevent the sieves from being choked by algae. Not only does the filter have a maximum flowrate but to ensure it works correctly it also has a minimum flow.
The second stage in the filtration process is biological filtration. In this area the water is release from the perforated retransfer tube into the moving bed part of the filter, which contains 40 Ltrs of specially designed "Hel-X 13" biomedia. The water in this area is continually "moving" due to the release of air at a rate of 2000 Lph from the integrated aerator (air pump not included). This design of moving media in water which is high enriched with oxygen, is the ideal environment to ensure the highly efficient removal of toxins, ensuring perfect water conditions.
The Oase Proficlear Premium Compact Pond Filter has a drain slide valve at the bottom of the tank which connects to Oases 75mm pipework. The filter is supplied with 2 year guarantee which can up upgraded to 3 years by registering with OASE. The filter has 1m of mains cable to the weatherproof control box and then 5m from the box to the filter.
The Oase Proficlear Premium Compact Pump Fed Pond Filter has a single 110mm (4") outlet pipe and 2 x 50mm inlet connections which are compatible with the
Oase Bitron C72 - 110C
Ultra Violet Lights.
NEW - EGC (Easy Garden Control) System
The OASE ProfiClear Premium Compact has been upgraded to include Oase's EGC (Easy Garden Control) System, which give you the ability to connect this filter to the InScenio FM Master WLAN ECG wireless control system
Other EGC compatible products include:
Once connected. the EGC will allow you to controll all settings via the Oase APP on a smart phone or tablet
Oase Proficlear Premium Compact Pump Fed Pond Filter Features
Intelligent filter system for fish ponds up to 40m³ (40000 litres)
The automatic fine debris extraction using drum filter technology
Highly efficient "Moving Bed" for biological filtration using "Hel-X 13" biomedia
Intelligent control functions
Micro controller system monitors and controls the main functions
Simple plug & play operation
Powerful, high-quality integrated pressure pump for drum cleaning
Incomparably quiet through extensive noise damping
80 µm debris cleaning sieves
Pollutant rakes on the sieves for reliable removal of string algae
Pollutant discharge including slide valve
Pump or Gravity Fed
Recommended Optional Extras: Oase ProfiClear Guard - Automatic Pond Top Up System Oase AquaOxy 2000 Air Pump Oase Bitron Ultra Violet Light - C72 - C100
