Oase Filtral 6000 / 9000 Combined Filter Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Filter Spare Parts > Oase Filtral Combined Filter Spare Parts > Oase Filtral 6000 / 9000 Combined Filter Spare Parts

Oase Filtral 6000 / 9000 Combined Filter Spare Parts

Oase Filtral 6000 / 9000 Combined Filter Spare Parts

The Biosmart 5000 / 7000 / 8000 spares that are currently available are the main lids, thermometers, inner covers, replacement red foams, replacement blue foams, foam holders, main tanks, hosetail connectors, complete uv assemblies, uv electrical heads, replacement uv bulbs, uv quartz sleeves, quartz sealing sets and uv bodey chambers

Spare Parts - Quick Links

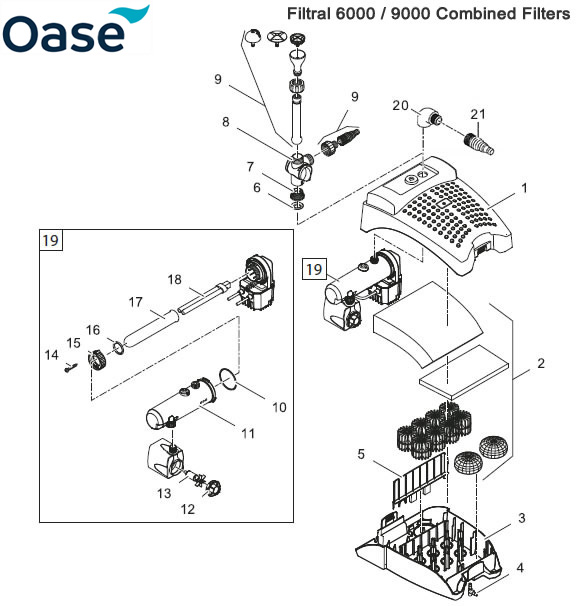

Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 1

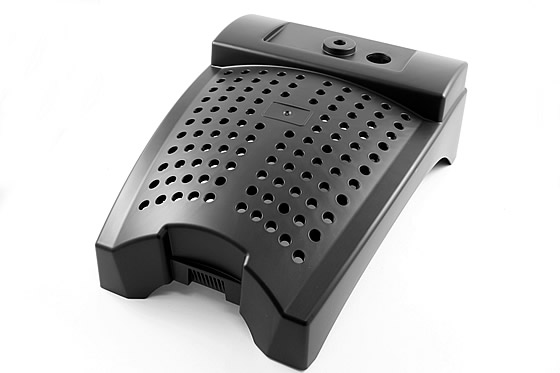

Oase Filtral 6000 / 9000 - Top Cage (29281)
Our Ref: OAS671 - Manufacturers Ref: 29281

Diagram Part Ref: 1

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase Filtral 6000 / 9000 - Top Cage (29281)Large image of Oase Filtral 6000 / 9000 - Top Cage (29281)
Roll over to zoom
Our Price:
£17.00
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 2

Oase Filtral 6000 / 9000 - Filter Media Set (35836)
Our Ref: OAS672 - Manufacturers Ref: 35836

Diagram Part Ref: 2
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Filter Media Set (35836)Large image of Oase Filtral 6000 / 9000 - Filter Media Set (35836)
Roll over to zoom
Our Price:
£17.60
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 3

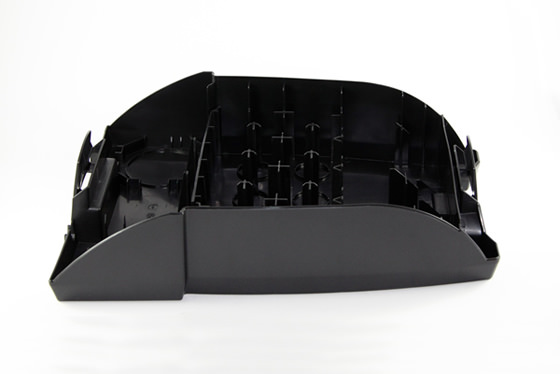

Oase Filtral 6000 / 9000 - Base Cage (11349)
Our Ref: OAS673 - Manufacturers Ref: 11349

Diagram Part Ref: 3

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase Filtral 6000 / 9000 - Base Cage (11349)Large image of Oase Filtral 6000 / 9000 - Base Cage (11349)
Roll over to zoom
Our Price:
£14.15
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 4

Oase Filtral 6000 / 9000 - Air Connector (35087)
Our Ref: OAS533 - Manufacturers Ref: 35087

Diagram Part Ref: 4
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Air Connector (35087)Large image of Oase Filtral 6000 / 9000 - Air Connector (35087)
Roll over to zoom
Our Price:
£0.98
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 5

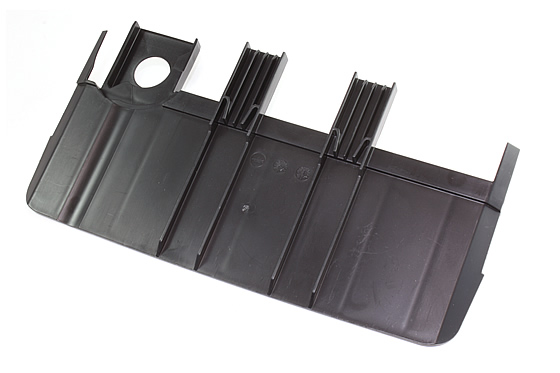

Oase Filtral 6000 / 9000 - Separating Plate (29386)
Our Ref: OAS674 - Manufacturers Ref: 29386

Diagram Part Ref: 5

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Filtral 6000 / 9000 - Separating Plate (29386)Large image of Oase Filtral 6000 / 9000 - Separating Plate (29386)
Roll over to zoom
Our Price:
£4.43
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 6

Oase Filtral 6000 / 9000 - Outlet Gasket (29388)
Our Ref: OAS675 - Manufacturers Ref: 29388

Diagram Part Ref: 6
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Outlet Gasket (29388)Large image of Oase Filtral 6000 / 9000 - Outlet Gasket (29388)
Roll over to zoom
Our Price:
£0.49
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 7

Oase Filtral 6000 / 9000 - Outlet T Nut (13427)
Our Ref: OAS676 - Manufacturers Ref: 13427

Diagram Part Ref: 7
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Outlet T Nut (13427)Large image of Oase Filtral 6000 / 9000 - Outlet T Nut (13427)
Roll over to zoom
Our Price:
£1.34
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 8

Oase Filtral 6000 / 9000 - Fountain T-Controller (43290 was 20830)
Our Ref: OAS251 - Manufacturers Ref: 43290

Diagram Part Ref: 8
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Fountain T-Controller (43290 was 20830)Large image of Oase Filtral 6000 / 9000 - Fountain T-Controller (43290 was 20830)
Roll over to zoom
Our Price:
£13.03
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 9

Oase Filtral 6000 / 9000 - Fountain Tube And Head Set (43083 was 35717)
Our Ref: OAS250 - Manufacturers Ref: 43083

Diagram Part Ref: 9
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Fountain Tube And Head Set (43083 was 35717)Large image of Oase Filtral 6000 / 9000 - Fountain Tube And Head Set (43083 was 35717)
Roll over to zoom
Our Price:
£12.26
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 10

Oase Filtral 3000 / 6000 / 9000 - UV Body / Water Housing O-Ring (73490 was 28553)
Our Ref: OAS677 - Manufacturers Ref: 73490

Diagram Part Ref: 5
Click to Enlarge an image of Oase Filtral 3000 / 6000 / 9000 - UV Body / Water Housing O-Ring (73490 was 28553)Large image of Oase Filtral 3000 / 6000 / 9000 - UV Body / Water Housing O-Ring (73490 was 28553)
Roll over to zoom
Our Price:
£0.98
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 11

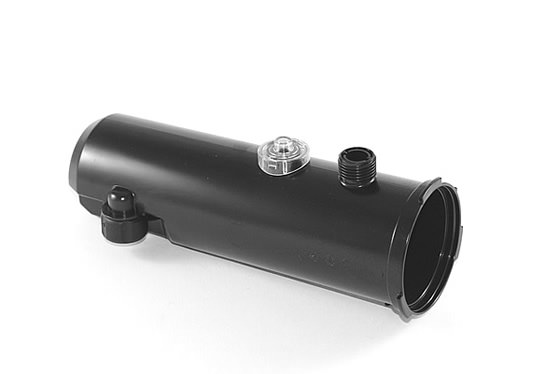

Oase Filtral 6000 / 9000 - UV Body / Water Housing (35872)
Our Ref: OAS678 - Manufacturers Ref: 35872

Diagram Part Ref: 11
Click to Enlarge an image of Oase Filtral 6000 / 9000 - UV Body / Water Housing (35872)Large image of Oase Filtral 6000 / 9000 - UV Body / Water Housing (35872)
Roll over to zoom
Our Price:
£7.19
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 12

Oase Filtral 6000 / 9000 - Impeller Housing (35770)
Our Ref: OAS259 - Manufacturers Ref: 35770

Diagram Part Ref: 12
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Impeller Housing (35770)Large image of Oase Filtral 6000 / 9000 - Impeller Housing (35770)
Roll over to zoom
Our Price:
£6.23
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 13

Oase Filtral 6000 / 9000 - Impeller (18013)
Our Ref: OAS255 - Manufacturers Ref: 18013

Diagram Part Ref: 12
Also fits Older Filtral 5000
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Impeller (18013)Large image of Oase Filtral 6000 / 9000 - Impeller (18013)
Roll over to zoom
Our Price:
£17.00
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 14

Oase Filtral 6000 / 9000 - Quartz Nut Oval Head Screw (27891)
Our Ref: OAS665 - Manufacturers Ref: 27891

Diagram Part Ref: 14
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Quartz Nut Oval Head Screw (27891)Large image of Oase Filtral 6000 / 9000 - Quartz Nut Oval Head Screw (27891)
Roll over to zoom
Our Price:
£0.98
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 15

Oase Filtral 6000 / 9000 - Quartz Nut (12049)
Our Ref: OAS666 - Manufacturers Ref: 12049

Diagram Part Ref: 10
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Quartz Nut (12049)Large image of Oase Filtral 6000 / 9000 - Quartz Nut (12049)
Roll over to zoom
Our Price:
£1.78
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 16

Oase Filtral 6000 / 9000 - Quartz Nut O-Ring (73481 was 19475)
Our Ref: OAS681 - Manufacturers Ref: 73481

Diagram Part Ref: 16
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Quartz Nut O-Ring (73481 was 19475)Large image of Oase Filtral 6000 / 9000 - Quartz Nut O-Ring (73481 was 19475)
Roll over to zoom
Our Price:
£1.69
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 17

Oase Filtral 6000 / 9000 Quartz Sleeve (13312 was 22622)
Our Ref: OAQ001 - Manufacturers Ref: 13312

Add Oase Silicone Grease - 10ml (+ £5.38)

Diagram Part Ref: 17
Click to Enlarge an image of Oase Filtral 6000 / 9000 Quartz Sleeve (13312 was 22622)Large image of Oase Filtral 6000 / 9000 Quartz Sleeve (13312 was 22622)
Roll over to zoom
Our Price:
£26.56
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 18

Oase - 9w PLS UV Bulb (2 Pin) (54984)
Our Ref: TMB018 - Manufacturers Ref: 54984

Diagram Part Ref: 18

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 9w PLS UV Bulb (2 Pin) (54984)Large image of Oase - 9w PLS UV Bulb (2 Pin) (54984)
Roll over to zoom
Our Price:
£22.99
Quantity:

Suitable for Filtral 6000

UV Bulb Specification
• Description : Oase 9w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 168mm
• Length - Glass : 126mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm
Oase - 11w PLS UV Bulb (2 Pin) (56112)
Our Ref: TMB019 - Manufacturers Ref: 56112

Diagram Part Ref: 18

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 11w PLS UV Bulb (2 Pin) (56112)Large image of Oase - 11w PLS UV Bulb (2 Pin) (56112)
Roll over to zoom
Our Price:
£26.99
Quantity:

Suitable for Filtral 9000

UV Bulb Specification
• Description : Oase 11w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 234mm
• Length - Glass : 194mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm

Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 19

Oase Filtral 6000 - Complete Pump / UV Assembly - 9W (21616)
Our Ref: OAS682 - Manufacturers Ref: 21616

Diagram Part Ref: 19
Unfortunately this product Currently Out of Stock
Please click here to send us your details and we will contact you as soon as it becomes available.
Our Price:
£80.74
Quantity:

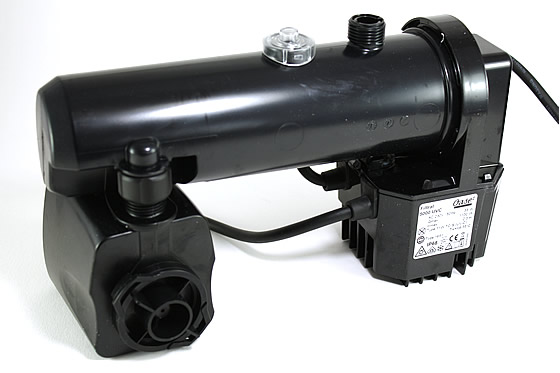

Oase Filtral 9000 - Complete Pump / UV Assembly - 11W (21617 was 35874)
Our Ref: OAS683 - Manufacturers Ref: 21617

Diagram Part Ref: 19

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase Filtral 9000 - Complete Pump / UV Assembly - 11W (21617 was 35874)Large image of Oase Filtral 9000 - Complete Pump / UV Assembly - 11W (21617 was 35874)
Roll over to zoom
Our Price:
£84.58
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 20

Oase Filtral Elbowed Outlet Connector (20191)
Our Ref: OAS684 - Manufacturers Ref: 20191

Diagram Part Ref: 15

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Filtral Elbowed Outlet Connector (20191)Large image of Oase Filtral Elbowed Outlet Connector (20191)
Roll over to zoom
Our Price:
£4.27
Quantity:


Oase Filtral 6000 / 9000 Combined Filter Spare Parts
Diagram - Part 21

Oase 1/2 Stepped Hose Tail - 42429 (23641)
Our Ref: OAS210 - Manufacturers Ref: 42429

Diagram Part Ref: 21
Click to Enlarge an image of Oase 1/2 Stepped Hose Tail - 42429 (23641)Large image of Oase 1/2 Stepped Hose Tail - 42429 (23641)
Roll over to zoom
Our Price:
£2.62
Quantity:
