Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Filter Spare Parts > Oase Filtral Combined Filter Spare Parts > Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts

Oase Filtral 2019 - 1500 Combined Filter Spare Parts

Oase Filtral 2019 - 1500 Combined Filter Spare Parts

The Oase 2019 Filtral 1500 currently has the following pare parts available, the top and bottom cage, complete pump and UV assembly, water body / UV body O ring, water body / UV body, pump impellor housing, pump impellor, UV quartz screw, UV quartz sleeve, UV quartz O ring, UV quartz sleeve nut, replacement UV bulbs and outlet hosetail.

Spare Parts - Quick Links

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts

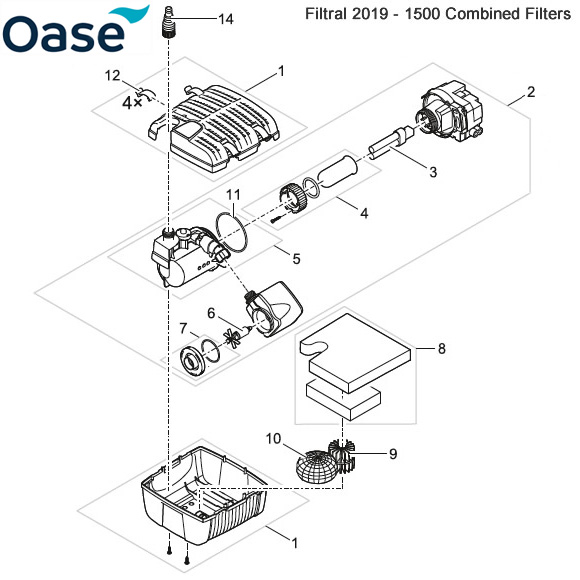

Diagram - Part 1

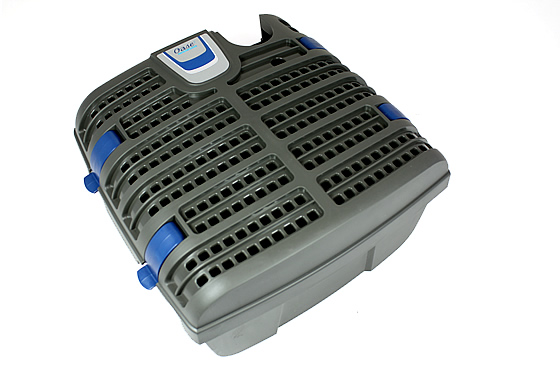

Oase Filtral 1500 (2019 Onwards) Complete Outer Cage (Top & Bottom ) (72781)
Our Ref: OAS489 - Manufacturers Ref: 72781

Diagram Part Ref: 1

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Filtral 1500 (2019 Onwards) Complete Outer Cage (Top & Bottom ) (72781)Large image of Oase Filtral 1500 (2019 Onwards) Complete Outer Cage (Top & Bottom ) (72781)
Roll over to zoom
Our Price:
£9.42
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 2

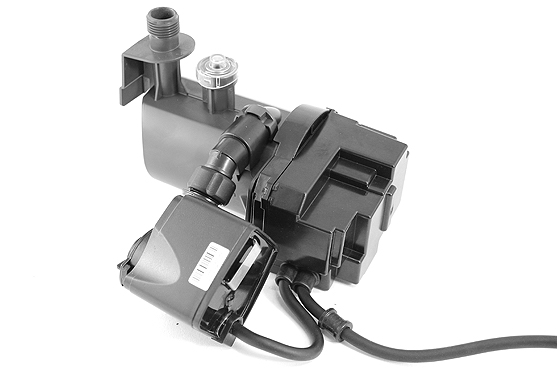

Oase Filtral 1500 (2019 Onwards) Complete Pump & UVC Assembly (72784)
Our Ref: OAS490 - Manufacturers Ref: 72784

Diagram Part Ref: 2

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Filtral 1500 (2019 Onwards) Complete Pump & UVC Assembly (72784)Large image of Oase Filtral 1500 (2019 Onwards) Complete Pump & UVC Assembly (72784)
Roll over to zoom
Our Price:
£99.61
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 3

Oase 5w PLS UVC Bulb (2 Pin) (57110)
Our Ref: TMB045 - Manufacturers Ref: 57110

Diagram Part Ref: 3

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase 5w PLS UVC Bulb (2 Pin) (57110)Large image of Oase 5w PLS UVC Bulb (2 Pin) (57110)
Roll over to zoom
Our Price:
£19.98
 Quantity:

UV Bulb Specification
• Description : Oase 5w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 108mm
• Length - Glass : 66mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 4

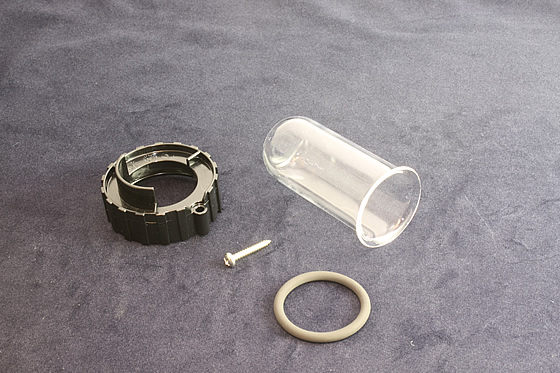

Oase Filtral 1500 (2019 Onwards) Quartz Glass UVC Sleeve, Nut and O-Ring Assembly (72792)
Our Ref: OAS492 - Manufacturers Ref: 72792

Diagram Part Ref: 4

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Filtral 1500 (2019 Onwards) Quartz Glass UVC Sleeve, Nut and O-Ring Assembly (72792)Large image of Oase Filtral 1500 (2019 Onwards) Quartz Glass UVC Sleeve, Nut and O-Ring Assembly (72792)
Roll over to zoom
Our Price:
£9.42
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 5

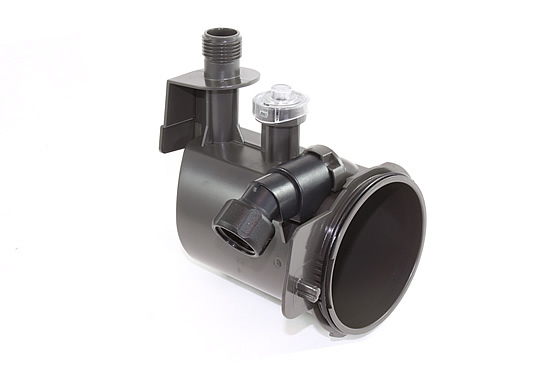

Oase Filtral 1500 (2019 Onwards) UVC Water Housing (72788)
Our Ref: OAS493 - Manufacturers Ref: 72788

Diagram Part Ref: 5
Click to Enlarge an image of Oase Filtral 1500 (2019 Onwards) UVC Water Housing (72788)Large image of Oase Filtral 1500 (2019 Onwards) UVC Water Housing (72788)
Roll over to zoom
Our Price:
£5.38
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 6

Oase Filtral 1500 (2019 Onwards) Pump Impeller (22647)
Our Ref: OAS494 - Manufacturers Ref: 22647

Diagram Part Ref: 6
Unfortunately this product Currently Out of Stock
Please click here to send us your details and we will contact you as soon as it becomes available.
Click to Enlarge an image of Oase Filtral 1500 (2019 Onwards) Pump Impeller (22647)Large image of Oase Filtral 1500 (2019 Onwards) Pump Impeller (22647)
Roll over to zoom
Our Price:
£6.23
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 7

Oase Filtral 1500 - Impeller Housing (35762)
Our Ref: OAS257 - Manufacturers Ref: 35762

Diagram Part Ref: 7

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Filtral 1500 - Impeller Housing (35762)Large image of Oase Filtral 1500 - Impeller Housing (35762)
Roll over to zoom
Our Price:
£4.43
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 8

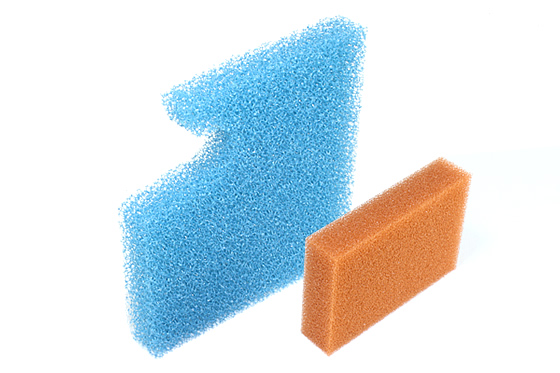

Oase Filtral 1500 (2019 Onwards) Foam Set (2 part) (70240)
Our Ref: OAS495 - Manufacturers Ref: 70240

Diagram Part Ref: 8
Click to Enlarge an image of Oase Filtral 1500 (2019 Onwards) Foam Set (2 part) (70240)Large image of Oase Filtral 1500 (2019 Onwards) Foam Set (2 part) (70240)
Roll over to zoom
Our Price:
£7.49
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 9

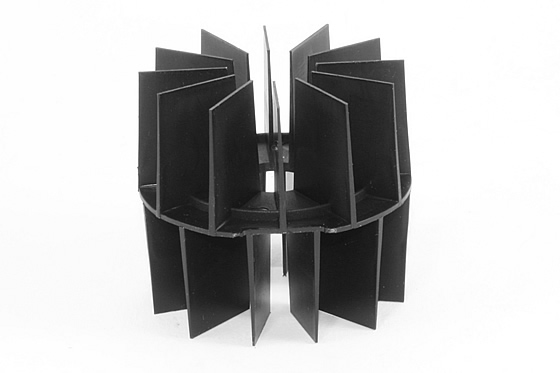

Oase Filtral (2019 Onwards) Plastic Biomedia (Single) (19503)
Our Ref: OAS496 - Manufacturers Ref: 19503

Diagram Part Ref: 9
Click to Enlarge an image of Oase Filtral (2019 Onwards) Plastic Biomedia (Single) (19503)Large image of Oase Filtral (2019 Onwards) Plastic Biomedia (Single) (19503)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 10

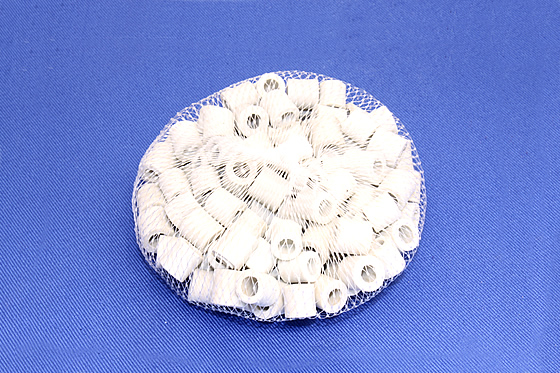

Oase Filtral 1500 (2019 Onwards) Ceramic Biomedia Bag (72795)
Our Ref: OAS497 - Manufacturers Ref: 72795

Diagram Part Ref: 10
Click to Enlarge an image of Oase Filtral 1500 (2019 Onwards) Ceramic Biomedia Bag (72795)Large image of Oase Filtral 1500 (2019 Onwards) Ceramic Biomedia Bag (72795)
Roll over to zoom
Our Price:
£1.78
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 11

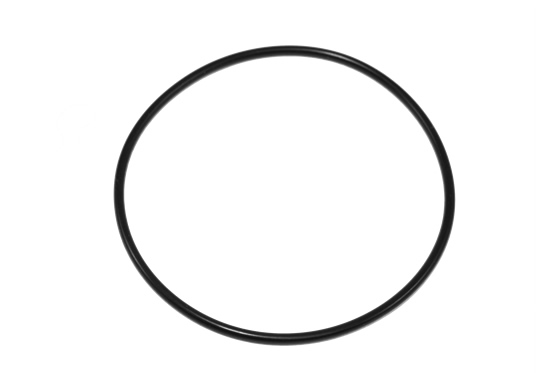

Oase Filtral (2019 Onwards) UVC Water Housing O-Ring (19945)
Our Ref: OAS498 - Manufacturers Ref: 19945

Diagram Part Ref: 11

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase Filtral (2019 Onwards) UVC Water Housing O-Ring (19945)Large image of Oase Filtral (2019 Onwards) UVC Water Housing O-Ring (19945)
Roll over to zoom
Our Price:
£2.62
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 12

Oase Filtral 1500 - 9000 (2019 Onwards) Clip (Pack of 4) (72798)
Our Ref: OAS994 - Manufacturers Ref: 72798

Diagram Part Ref: 12
Click to Enlarge an image of Oase Filtral 1500 - 9000 (2019 Onwards) Clip (Pack of 4) (72798)Large image of Oase Filtral 1500 - 9000 (2019 Onwards) Clip (Pack of 4) (72798)
Roll over to zoom
Our Price:
£1.57
 Quantity:

Oase Filtral 1500 (2019 Onwards) Combined Filter Spare Parts
Diagram - Part 14

Oase 1/2 Stepped Hose Tail - 42429 (23641)
Our Ref: OAS210 - Manufacturers Ref: 42429

Diagram Part Ref: 14
Click to Enlarge an image of Oase 1/2 Stepped Hose Tail - 42429 (23641)Large image of Oase 1/2 Stepped Hose Tail - 42429 (23641)
Roll over to zoom
Our Price:
£2.62
 Quantity:
