Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Filter Spare Parts > Oase FiltoClear Filter Spare Parts > Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts

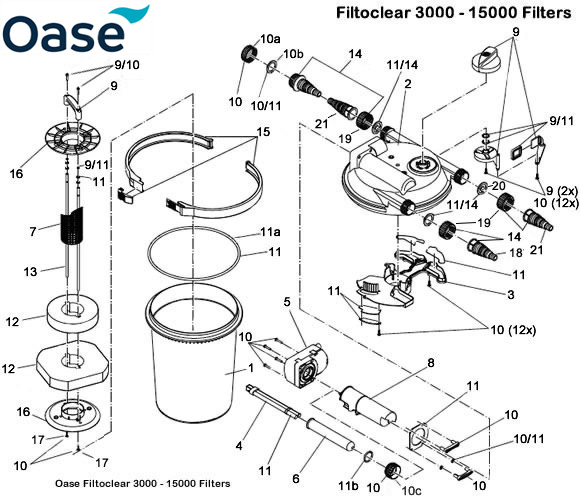

Oase Filtoclear 3000 - 15000 Filter Spare Parts

Oase Filtoclear 3000 - 15000 Filter Spare Parts

The Filtoclear 3000 - 15000 Filter spares that are currently available are the main tanks, main lids, inner part covers, UV bulbs, UV electrical heads,UV quartz sleeves, mesh tubes, UVC protection pipes, cleaning operation parts, screw packs, o'ring and washer sets,foam sets, cleaning rods, hosetail packs and main lid clamps

Spare Parts
Quick Links

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 1

FiltoClear 3000 - Main Tank (24460)
Our Ref: OAS440 - Manufacturers Ref: 24460

Diagram Part Ref: 1

Unfortunately, this product is no longer available from the manufacturers

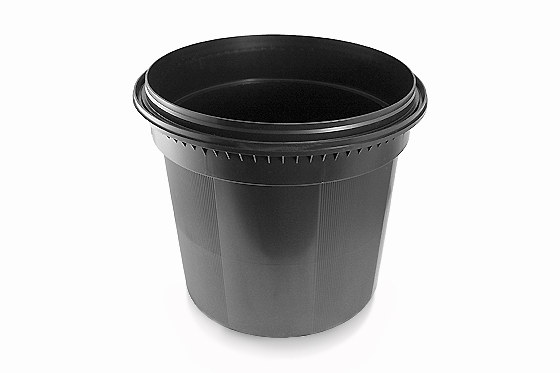

Oase FiltoClear 6000 / 12000 / 13000 - Main Tank (89002 was 24461)
Our Ref: OAS441 - Manufacturers Ref: 89002

Diagram Part Ref: 1

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 6000 / 12000 / 13000 - Main Tank (89002 was 24461)Large image of Oase FiltoClear 6000 / 12000 / 13000 - Main Tank (89002 was 24461)
Roll over to zoom
Our Price:
£27.05
 Quantity:

Oase FiltoClear 11000 / 16000 / 19000 - Main Tank (89003 was 24462)
Our Ref: OAS442 - Manufacturers Ref: 89003

Diagram Part Ref: 1
Click to Enlarge an image of Oase FiltoClear 11000 / 16000 / 19000 - Main Tank (89003 was 24462)Large image of Oase FiltoClear 11000 / 16000 / 19000 - Main Tank (89003 was 24462)
Roll over to zoom
Our Price:
£41.71
 Quantity:

Oase FiltoClear 15000 / 20000 / 30000 / 31000 - Main Tank (89004 was 26527)
Our Ref: OAS443 - Manufacturers Ref: 89004

Diagram Part Ref: 1

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase FiltoClear 15000 / 20000 / 30000 / 31000 - Main Tank (89004 was 26527)Large image of Oase FiltoClear 15000 / 20000 / 30000 / 31000 - Main Tank (89004 was 26527)
Roll over to zoom
Our Price:
£36.64
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 2

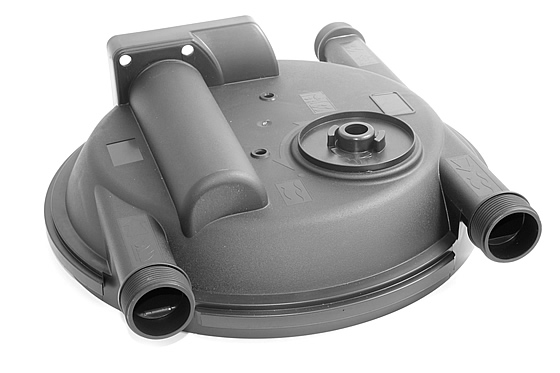

Oase FiltoClear 3000 - 15000 - Main Lid (24459)
Our Ref: OAS444 - Manufacturers Ref: 24459

Diagram Part Ref: 2

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - Main Lid (24459)Large image of Oase FiltoClear 3000 - 15000 - Main Lid (24459)
Roll over to zoom
Our Price:
£28.45
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 3

Oase FiltoClear 3000 - 15000 - Inner Part Cover (24457)
Our Ref: OAS445 - Manufacturers Ref: 24457

Diagram Part Ref: 3

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - Inner Part Cover (24457)Large image of Oase FiltoClear 3000 - 15000 - Inner Part Cover (24457)
Roll over to zoom
Our Price:
£8.04
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 4

Oase - 9w PLS UV Bulb (2 Pin) (54984)
Our Ref: TMB018 - Manufacturers Ref: 54984

Diagram Part Ref: 4

Availability - Currently only 2 in stock



Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 9w PLS UV Bulb (2 Pin) (54984)Large image of Oase - 9w PLS UV Bulb (2 Pin) (54984)
Roll over to zoom
Our Price:
£22.99
 Quantity:

Suitable for the Oase FiltoClear 3000

UV Bulb Specification
• Description : Oase 9w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 168mm
• Length - Glass : 126mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm
Oase - 11w PLS UV Bulb (2 Pin) (56112)
Our Ref: TMB019 - Manufacturers Ref: 56112

Diagram Part Ref: 4

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 11w PLS UV Bulb (2 Pin) (56112)Large image of Oase - 11w PLS UV Bulb (2 Pin) (56112)
Roll over to zoom
Our Price:
£26.99
 Quantity:

Suitable for the Oase FiltoClear 6000, 11000 and 15000

UV Bulb Specification
• Description : Oase 11w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 234mm
• Length - Glass : 194mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 5

Oase FiltoClear 3000 - 15000 - UV Electrical Head (14360)
Our Ref: OAS446 - Manufacturers Ref: 14360

Diagram Part Ref: 5

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - UV Electrical Head (14360)Large image of Oase FiltoClear 3000 - 15000 - UV Electrical Head (14360)
Roll over to zoom
Our Price:
£72.97
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 6

Oase FiltoClear 3000 - 15000 Quartz Sleeve (13312 was 22622)
Our Ref: OAQ001 - Manufacturers Ref: 13312

Add Oase Silicone Grease - 10ml (+ £5.38)

Diagram Part Ref: 6
Click to Enlarge an image of Oase FiltoClear 3000 - 15000 Quartz Sleeve (13312 was 22622)Large image of Oase FiltoClear 3000 - 15000 Quartz Sleeve (13312 was 22622)
Roll over to zoom
Our Price:
£26.56
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 7

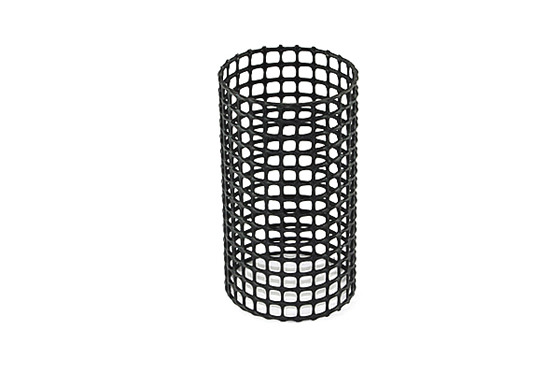

Oase FiltoClear 3000 - Mesh Tube / 145mm (14235)
Our Ref: OAS447 - Manufacturers Ref: 14235

Diagram Part Ref: 7

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase FiltoClear 3000 - Mesh Tube / 145mm (14235)Large image of Oase FiltoClear 3000 - Mesh Tube / 145mm (14235)
Roll over to zoom
Our Price:
£6.23
 Quantity:

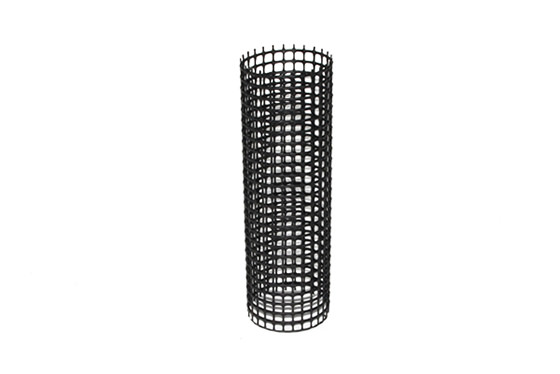

Oase FiltoClear 6000 - Mesh Tube / 263mm (14236)
Our Ref: OAS448 - Manufacturers Ref: 14236

Diagram Part Ref: 7
Click to Enlarge an image of Oase FiltoClear 6000 - Mesh Tube / 263mm (14236)Large image of Oase FiltoClear 6000 - Mesh Tube / 263mm (14236)
Roll over to zoom
Our Price:
£8.04
 Quantity:

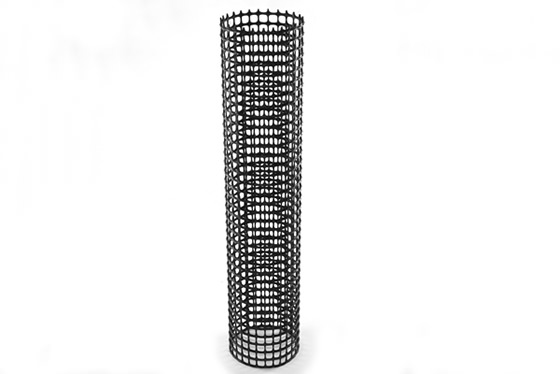

Oase FiltoClear 11000 - Mesh Tube / 383mm (14237)
Our Ref: OAS449 - Manufacturers Ref: 14237

Diagram Part Ref: 7

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 11000 - Mesh Tube / 383mm (14237)Large image of Oase FiltoClear 11000 - Mesh Tube / 383mm (14237)
Roll over to zoom
Our Price:
£10.38
 Quantity:

Oase FiltoClear 15000 - Mesh Tube / 503mm (14238)
Our Ref: OAS450 - Manufacturers Ref: 14238

Diagram Part Ref: 7
Unfortunately this product Currently Out of Stock
Please click here to send us your details and we will contact you as soon as it becomes available.
Click to Enlarge an image of Oase FiltoClear 15000 - Mesh Tube / 503mm (14238)Large image of Oase FiltoClear 15000 - Mesh Tube / 503mm (14238)
Roll over to zoom
Our Price:
£3.58
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 8

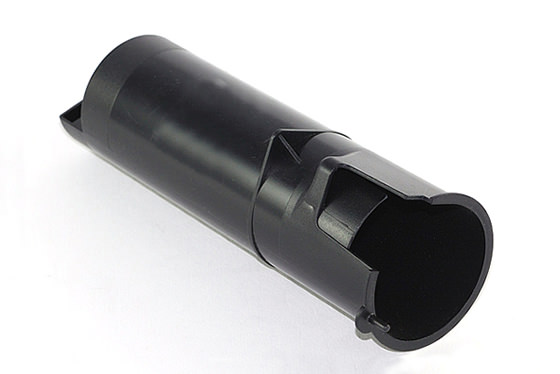

Oase FiltoClear 3000 - 11000 - UVC Protection Pipe (34521)
Our Ref: OAS451 - Manufacturers Ref: 34521

Diagram Part Ref: 8
Unfortunately this product Currently Out of Stock
Please click here to send us your details and we will contact you as soon as it becomes available.
Click to Enlarge an image of Oase FiltoClear 3000 - 11000 - UVC Protection Pipe (34521)Large image of Oase FiltoClear 3000 - 11000 - UVC Protection Pipe (34521)
Roll over to zoom
Our Price:
£4.43
 Quantity:

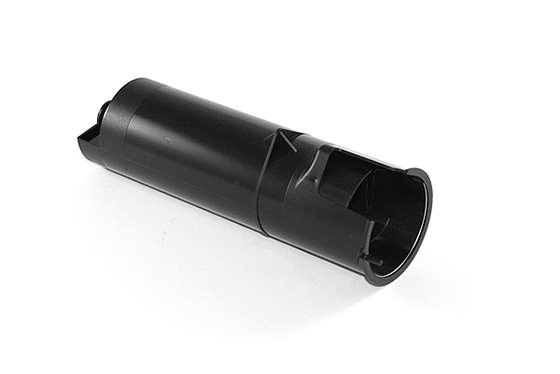

FiltoClear 15000 - UVC Protection Pipe With Reflector (35256)
Our Ref: OAS452 - Manufacturers Ref: 35256

Diagram Part Ref: 8

Unfortunately, this product is no longer available from the manufacturers
Click to Enlarge an image of FiltoClear 15000 - UVC Protection Pipe With Reflector (35256)Large image of FiltoClear 15000 - UVC Protection Pipe With Reflector (35256)
Roll over to zoom

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 9

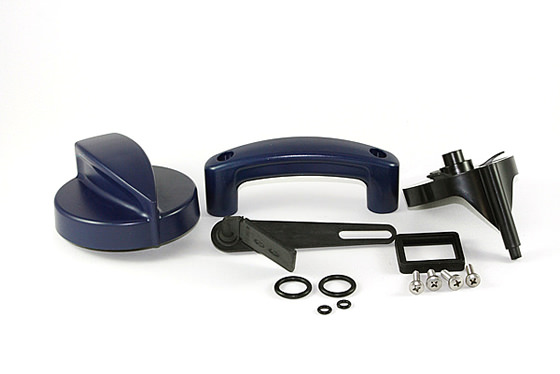

Oase FiltoClear 3000 - 15000 - Cleaning Operation Parts (34579)
Our Ref: OAS453 - Manufacturers Ref: 34579

Diagram Part Ref: 9
Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - Cleaning Operation Parts (34579)Large image of Oase FiltoClear 3000 - 15000 - Cleaning Operation Parts (34579)
Roll over to zoom
Our Price:
£17.00
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 10

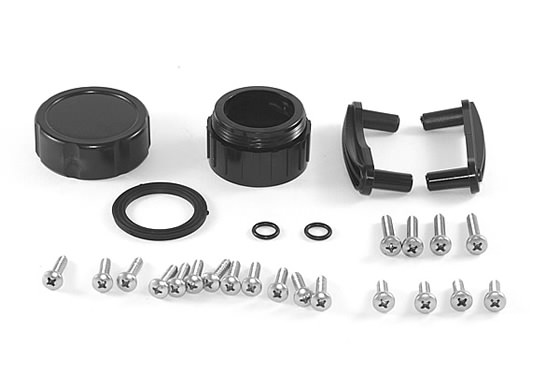

Oase FiltoClear 3000 - 15000 - Screw Pack (34580)
Our Ref: OAS454 - Manufacturers Ref: 34580

Diagram Part Ref: 10
Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - Screw Pack (34580)Large image of Oase FiltoClear 3000 - 15000 - Screw Pack (34580)
Roll over to zoom
Our Price:
£19.84
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 10a

Oase FiltoClear 3000 - 15000 - 1½ inch Blanking Cap only (15445)
Our Ref: OAS486 - Manufacturers Ref: 15445

Diagram Part Ref: 10
Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - 1½ inch Blanking Cap only (15445)Large image of Oase FiltoClear 3000 - 15000 - 1½ inch Blanking Cap only (15445)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 10b

Oase 1 1/2 inch Flat Hose Tail Gasket (19491)
Our Ref: OAS225 - Manufacturers Ref: 19491

Diagram Part Ref: 10b
Click to Enlarge an image of Oase 1 1/2 inch Flat Hose Tail Gasket (19491)Large image of Oase 1 1/2 inch Flat Hose Tail Gasket (19491)
Roll over to zoom
Our Price:
£1.34
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 10c

Oase FiltoClear 3000 - 15000 UV Quartz Clamp Screw (34441)
Our Ref: OAS488 - Manufacturers Ref: 34441

Diagram Part Ref: 10c
Click to Enlarge an image of Oase FiltoClear 3000 - 15000 UV Quartz Clamp Screw (34441)Large image of Oase FiltoClear 3000 - 15000 UV Quartz Clamp Screw (34441)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 11

Oase FiltoClear 3000 - 15000 - O-Ring, Gasket And Washer Set (34581)
Our Ref: OAS455 - Manufacturers Ref: 34581

Diagram Part Ref: 11

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - O-Ring, Gasket And Washer Set (34581)Large image of Oase FiltoClear 3000 - 15000 - O-Ring, Gasket And Washer Set (34581)
Roll over to zoom
Our Price:
£25.54
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 11a

Oase FiltoClear 3000 - 30000 - Main Tank O-Ring (77773 was 24812)
Our Ref: OAS485 - Manufacturers Ref: 77773

Diagram Part Ref: 11a
Click to Enlarge an image of Oase FiltoClear 3000 - 30000 - Main Tank O-Ring (77773 was 24812)Large image of Oase FiltoClear 3000 - 30000 - Main Tank O-Ring (77773 was 24812)
Roll over to zoom
Our Price:
£6.23
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 11b

Oase FiltoClear 3000 - 15000 - Quartz Nut O-Ring Only (73481 was 19475)
Our Ref: OAS681 - Manufacturers Ref: 73481

Diagram Part Ref: 11b
Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - Quartz Nut O-Ring Only (73481 was 19475)Large image of Oase FiltoClear 3000 - 15000 - Quartz Nut O-Ring Only (73481 was 19475)
Roll over to zoom
Our Price:
£1.69
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 12

Oase FiltoClear 3000 Foam Set (56109)
Our Ref: OAS010 - Manufacturers Ref: 56109

Diagram Part Ref: 12

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 3000 Foam Set (56109)Large image of Oase FiltoClear 3000 Foam Set (56109)
Roll over to zoom
Our Price:
£25.92
 Quantity:

Oase FiltoClear 6000 Foam Set (56110)
Our Ref: OAS011 - Manufacturers Ref: 56110

Diagram Part Ref: 12

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 6000 Foam Set (56110)Large image of Oase FiltoClear 6000 Foam Set (56110)
Roll over to zoom
Our Price:
£32.02
 Quantity:

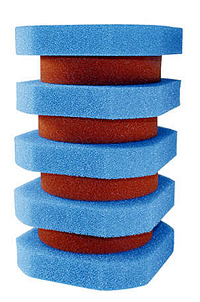

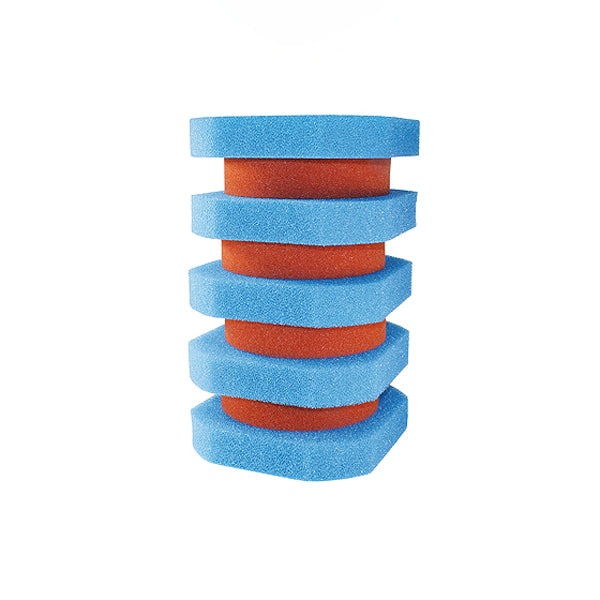

Oase FiltoClear 11000 Foam Set (56111)
Our Ref: OAS012 - Manufacturers Ref: 56111

Diagram Part Ref: 12

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 11000 Foam Set (56111)Large image of Oase FiltoClear 11000 Foam Set (56111)
Roll over to zoom
Our Price:
£44.76
 Quantity:

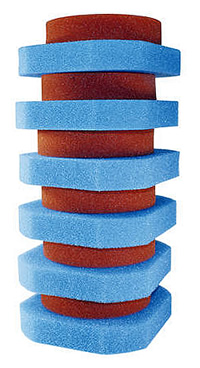

Oase FiltoClear 15000 Foam Set (56884)
Our Ref: OAS013 - Manufacturers Ref: 56884

Diagram Part Ref: 12

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 15000 Foam Set (56884)Large image of Oase FiltoClear 15000 Foam Set (56884)
Roll over to zoom
Our Price:
£52.66
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 13

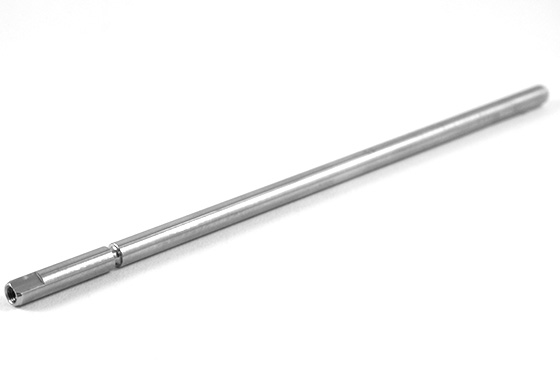

Oase FiltoClear 3000 - Cleaning Rod (Single) (24749)
Our Ref: OAS456 - Manufacturers Ref: 24749

Diagram Part Ref: 12
Click to Enlarge an image of Oase FiltoClear 3000 - Cleaning Rod (Single) (24749)Large image of Oase FiltoClear 3000 - Cleaning Rod (Single) (24749)
Roll over to zoom
Our Price:
£7.19
 Quantity:

Oase FiltoClear 6000 / 12000 - Cleaning Rod (Single) (24748)
Our Ref: OAS457 - Manufacturers Ref: 24748

Diagram Part Ref: 12
Click to Enlarge an image of Oase FiltoClear 6000 / 12000 - Cleaning Rod (Single) (24748)Large image of Oase FiltoClear 6000 / 12000 - Cleaning Rod (Single) (24748)
Roll over to zoom
Our Price:
£10.38
 Quantity:

Oase FiltoClear 11000 / 16000 - Cleaning Rod (Single) (24747)
Our Ref: OAS458 - Manufacturers Ref: 24747

Diagram Part Ref: 12
Click to Enlarge an image of Oase FiltoClear 11000 / 16000 - Cleaning Rod (Single) (24747)Large image of Oase FiltoClear 11000 / 16000 - Cleaning Rod (Single) (24747)
Roll over to zoom
Our Price:
£13.22
 Quantity:

Oase FiltoClear 15000 / 20000 / 30000 - Cleaning Rod (Single) (26596)
Our Ref: OAS459 - Manufacturers Ref: 26596

Diagram Part Ref: 12

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 15000 / 20000 / 30000 - Cleaning Rod (Single) (26596)Large image of Oase FiltoClear 15000 / 20000 / 30000 - Cleaning Rod (Single) (26596)
Roll over to zoom
Our Price:
£19.84
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 14

Oase FiltoClear 3000 - 15000 - Hosetail Pack (34561)
Our Ref: OAS460 - Manufacturers Ref: 34561

Diagram Part Ref: 14
Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - Hosetail Pack (34561)Large image of Oase FiltoClear 3000 - 15000 - Hosetail Pack (34561)
Roll over to zoom
Our Price:
£21.76
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 15

Oase FiltoClear 3000 - 30000 - Main Lid Clamp (34578)
Our Ref: OAS461 - Manufacturers Ref: 34578

Diagram Part Ref: 15
Click to Enlarge an image of Oase FiltoClear 3000 - 30000 - Main Lid Clamp (34578)Large image of Oase FiltoClear 3000 - 30000 - Main Lid Clamp (34578)
Roll over to zoom
Our Price:
£22.75
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 16

Oase FiltoClear 3000 - 15000 - Plastic Filter Foam Disc (Single) (34516)
Our Ref: OAS471 - Manufacturers Ref: 34516

Diagram Part Ref: 16

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - Plastic Filter Foam Disc (Single) (34516)Large image of Oase FiltoClear 3000 - 15000 - Plastic Filter Foam Disc (Single) (34516)
Roll over to zoom
Our Price:
£2.62
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 17

Oase FiltoClear 3000 - 15000 - Lower Plate Screw (Single) (6054)
Our Ref: OAS487 - Manufacturers Ref: 6054

Diagram Part Ref: 17
Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - Lower Plate Screw (Single) (6054)Large image of Oase FiltoClear 3000 - 15000 - Lower Plate Screw (Single) (6054)
Roll over to zoom
Our Price:
£0.49
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 18

Oase 1 1/2 inch Stepped Hosetail (43698 was 19489)
Our Ref: OAS143 - Manufacturers Ref: 43698

Diagram Part Ref: 18
Click to Enlarge an image of Oase 1 1/2 inch Stepped Hosetail (43698 was 19489)Large image of Oase 1 1/2 inch Stepped Hosetail (43698 was 19489)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 19

Oase 1 1/2 inch Hosetail Nut / Vorton Inspection Window Nut (12096)
Our Ref: OAS836 - Manufacturers Ref: 12096

Diagram Part Ref: 19
Click to Enlarge an image of Oase 1 1/2 inch Hosetail Nut / Vorton Inspection Window Nut (12096)Large image of Oase 1 1/2 inch Hosetail Nut / Vorton Inspection Window Nut (12096)
Roll over to zoom
Our Price:
£1.34
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 20

Oase FiltoClear 3000 - 15000 - Clogging Indicator (Single) (24819)
Our Ref: OAS197 - Manufacturers Ref: 24819

Diagram Part Ref: 20
Click to Enlarge an image of Oase FiltoClear 3000 - 15000 - Clogging Indicator (Single) (24819)Large image of Oase FiltoClear 3000 - 15000 - Clogging Indicator (Single) (24819)
Roll over to zoom
Our Price:
£0.49
 Quantity:

Oase FiltoClear 3000 / 6000 / 11000 / 15000 Filter Spare Parts
Diagram - Part 21

Oase 1 1/2 inch Clear Stepped Hosetail for FiltoClear / BioPress (43669)
Our Ref: OAS194 - Manufacturers Ref: 43669

Diagram Part Ref: 21
Click to Enlarge an image of Oase 1 1/2 inch Clear Stepped Hosetail for FiltoClear / BioPress (43669)Large image of Oase 1 1/2 inch Clear Stepped Hosetail for FiltoClear / BioPress (43669)
Roll over to zoom
Our Price:
£1.57
 Quantity:

Customers Reviews


spacer

Why Buy From Us

FREE Delivery for Orders Over £50
(Uk Mainland excluding Highlands and Islands of Scotland)		Tick
1000's of Happy CustomersTick
1000's of Products in StockTick
Free Help and Advice from our Experienced Technical StaffTick
Over 20 Years Mail Order ExperienceTick
spacer

Secure Payments

Secure Online Payments
spacer

Follow Us

Manufacturers Details

Oase Pond ProductsHozelock Pond ProductsGordon Low Pond LinersEvolution Aqua Pond ProductsLotus Pond ProductsPontec Pond ProductsBlagdon Interpet Pond Products
Tetra Pond ProductsTAP Pond ProductsSmart Solar Garden ProductsJBL Fish Keeping ProductsAquaHydrotech - Ecoponds Pond ProductsFish mate and Pond Mate Pond ProductsWater Gardening Direct Pond Products
