Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Pump Spare Parts > Oase AquaMax Pump Spare Parts > Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts

Oase Aquamax Eco Premium 12000 - 16000 Pump Spare Parts

Oase Aquamax Eco Premium 12000 - 16000 Pump Spare Parts

The Oase Aquamax Eco Premium 12000 - 16000 spares that are currently available are the top cages, top pump clamps, top pump clamp rubber,,2" adaptors, 2" hose connectors, stepped ball hosetail packs, lower pump holders, bottom cages, suction adaptor plates, suction regulators, oval head screws, sliders, impellors,impellor housings and impellor housing gaskets.

Spare Parts - Quick Links

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts

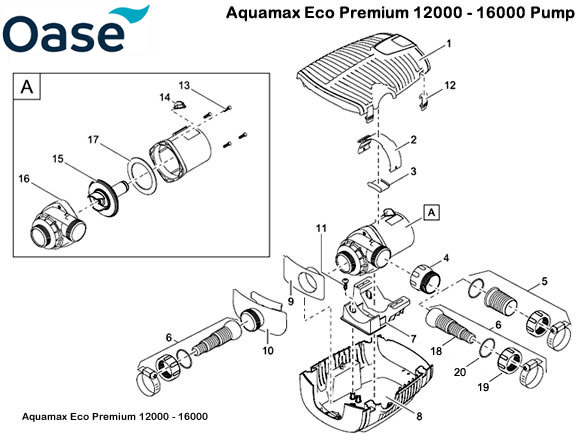

Diagram - Part 1

Oase AquaMax Eco Premium 4000 - 16000 - Top Cage (17963)
Our Ref: OAS320 - Manufacturers Ref: 17963

Diagram Part Ref: 1

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase AquaMax Eco Premium 4000 - 16000 - Top Cage (17963)Large image of Oase AquaMax Eco Premium 4000 - 16000 - Top Cage (17963)
Roll over to zoom
Our Price:
£25.54
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 2

Oase AquaMax Eco Premium 12000 - 16000 / Twin 20000 - 30000 - Top Pump Clamp (16982)
Our Ref: OAS342 - Manufacturers Ref: 16982

Diagram Part Ref: 2
Click to Enlarge an image of Oase AquaMax Eco Premium 12000 - 16000 / Twin 20000 - 30000 - Top Pump Clamp (16982)Large image of Oase AquaMax Eco Premium 12000 - 16000 / Twin 20000 - 30000 - Top Pump Clamp (16982)
Roll over to zoom
Our Price:
£1.78
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 3

Oase AquaMax Eco Premium 4000 - 16000 / Twin 20000 - 30000 - Top Pump Clamp Rubber (17232)
Our Ref: OAS322 - Manufacturers Ref: 17232

Diagram Part Ref: 3
Click to Enlarge an image of Oase AquaMax Eco Premium 4000 - 16000 / Twin 20000 - 30000 - Top Pump Clamp Rubber (17232)Large image of Oase AquaMax Eco Premium 4000 - 16000 / Twin 20000 - 30000 - Top Pump Clamp Rubber (17232)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 4

Oase 2 inch Female to Male Adapter (16859)
Our Ref: OAS323 - Manufacturers Ref: 16859

Diagram Part Ref: 4
Click to Enlarge an image of Oase 2 inch Female to Male Adapter (16859)Large image of Oase 2 inch Female to Male Adapter (16859)
Roll over to zoom
Our Price:
£3.14
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 5

Oase 2 inch Hosetail Connector (17069)
Our Ref: OAS325 - Manufacturers Ref: 17069

Diagram Part Ref: 5
Click to Enlarge an image of Oase 2 inch Hosetail Connector (17069)Large image of Oase 2 inch Hosetail Connector (17069)
Roll over to zoom
Our Price:
£10.61
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 6

Oase Stepped Ball Hosetail Pack (Inc Nuts And Gaskets) (Pair) (17272)
Our Ref: OAS326 - Manufacturers Ref: 17272

Diagram Part Ref: 6
Click to Enlarge an image of Oase Stepped Ball Hosetail Pack (Inc Nuts And Gaskets) (Pair) (17272)Large image of Oase Stepped Ball Hosetail Pack (Inc Nuts And Gaskets) (Pair) (17272)
Roll over to zoom
Our Price:
£21.08
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 7

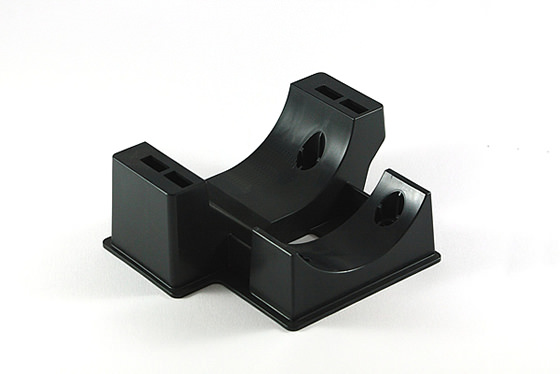

Oase AquaMax Eco Premium 12000 - 16000 - Lower Pump Holder (16956)
Our Ref: OAS343 - Manufacturers Ref: 16956

Diagram Part Ref: 7
Click to Enlarge an image of Oase AquaMax Eco Premium 12000 - 16000 - Lower Pump Holder (16956)Large image of Oase AquaMax Eco Premium 12000 - 16000 - Lower Pump Holder (16956)
Roll over to zoom
Our Price:
£3.58
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 8

Oase AquaMax Eco Premium 4000 - 16000 - Bottom Cage (17962)
Our Ref: OAS328 - Manufacturers Ref: 17962

Diagram Part Ref: 8

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase AquaMax Eco Premium 4000 - 16000 - Bottom Cage (17962)Large image of Oase AquaMax Eco Premium 4000 - 16000 - Bottom Cage (17962)
Roll over to zoom
Our Price:
£20.87
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 9

Oase AquaMax Eco Premium 4000 - 16000 - Suction Adaptor Plate (16867)
Our Ref: OAS329 - Manufacturers Ref: 16867

Diagram Part Ref: 9

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase AquaMax Eco Premium 4000 - 16000 - Suction Adaptor Plate (16867)Large image of Oase AquaMax Eco Premium 4000 - 16000 - Suction Adaptor Plate (16867)
Roll over to zoom
Our Price:
£2.62
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 10

Oase AquaMax Eco Premium 4000 - 16000 - Suction Regulator (16866)
Our Ref: OAS330 - Manufacturers Ref: 16866

Diagram Part Ref: 10

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase AquaMax Eco Premium 4000 - 16000 - Suction Regulator (16866)Large image of Oase AquaMax Eco Premium 4000 - 16000 - Suction Regulator (16866)
Roll over to zoom
Our Price:
£4.43
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 11

Oase Oval Head Screw V2A Din 7981 4.8 X 19 - Single (22853)
Our Ref: OAS331 - Manufacturers Ref: 22853

Diagram Part Ref: 11
Click to Enlarge an image of Oase Oval Head Screw V2A Din 7981 4.8 X 19 - Single (22853)Large image of Oase Oval Head Screw V2A Din 7981 4.8 X 19 - Single (22853)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 12

Oase AquaMax Premium / Pro / Twin Cage Clip (16894)
Our Ref: OAS332 - Manufacturers Ref: 30983

Diagram Part Ref: 12
Click to Enlarge an image of Oase AquaMax Premium / Pro / Twin Cage Clip (16894)Large image of Oase AquaMax Premium / Pro / Twin Cage Clip (16894)
Roll over to zoom
Our Price:
£1.78
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 13

Oase Oval Head Screw V2A Din 7985 M5 X 20 H - Single (6055)
Our Ref: OAS333 - Manufacturers Ref: 6055

Diagram Part Ref: 13
Click to Enlarge an image of Oase Oval Head Screw V2A Din 7985 M5 X 20 H - Single (6055)Large image of Oase Oval Head Screw V2A Din 7985 M5 X 20 H - Single (6055)
Roll over to zoom
Our Price:
£0.49
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 14

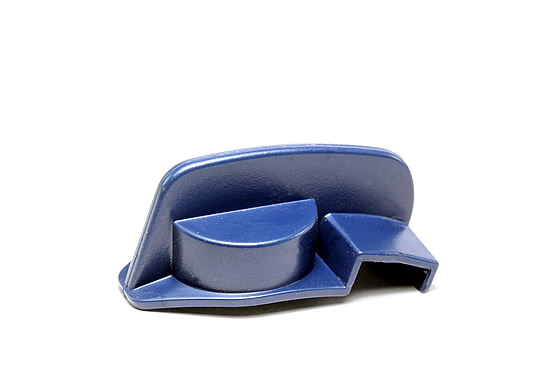

Oase AquaMax Eco Premium 12000 - 16000 Slider (35763)
Our Ref: OAS344 - Manufacturers Ref: 35763

Diagram Part Ref: 14

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase AquaMax Eco Premium 12000 - 16000 Slider (35763)Large image of Oase AquaMax Eco Premium 12000 - 16000 Slider (35763)
Roll over to zoom
Our Price:
£4.43
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 15

Oase AquaMax Eco Premium 12000 - 16000 / Twin 20000 - 30000 - Impeller (17965)
Our Ref: OAS345 - Manufacturers Ref: 17965

Diagram Part Ref: 15
(Includes OAS348 O'Ring)
Availability - Currently only 2 in stock


Click to Enlarge an image of Oase AquaMax Eco Premium 12000 - 16000 / Twin 20000 - 30000 - Impeller (17965)Large image of Oase AquaMax Eco Premium 12000 - 16000 / Twin 20000 - 30000 - Impeller (17965)
Roll over to zoom
Our Price:
£85.38
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 16

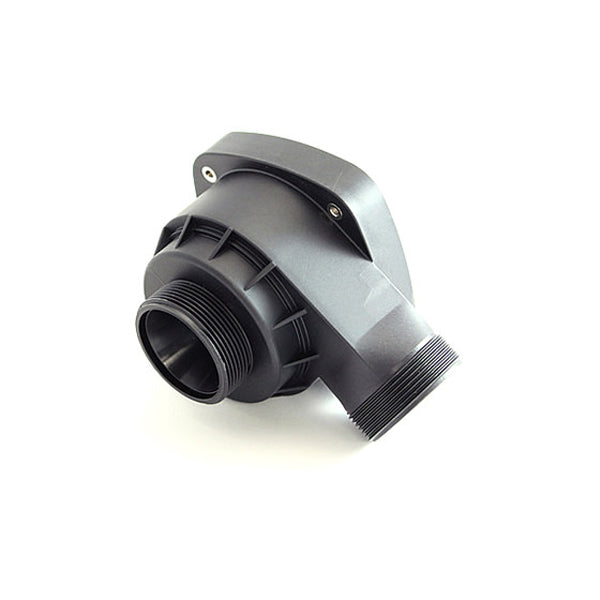

Oase AquaMax Eco Premium 12000 / Twin 20000 - Impeller Housing (17969)
Our Ref: OAS346 - Manufacturers Ref: 17969

Diagram Part Ref: 16

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase AquaMax Eco Premium 12000 / Twin 20000 - Impeller Housing (17969)Large image of Oase AquaMax Eco Premium 12000 / Twin 20000 - Impeller Housing (17969)
Roll over to zoom
Our Price:
£36.02
 Quantity:

Oase AquaMax Eco Premium 16000 / Twin 30000 - Impeller Housing (17970)
Our Ref: OAS347 - Manufacturers Ref: 17970

Diagram Part Ref: 16

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase AquaMax Eco Premium 16000 / Twin 30000 - Impeller Housing (17970)Large image of Oase AquaMax Eco Premium 16000 / Twin 30000 - Impeller Housing (17970)
Roll over to zoom
Our Price:
£39.83
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 17

Oase AquaMax Eco Premium 12000 - 16000 / Twin 20000 - 30000 - Impeller Housing Gasket (24151 was 17513)
Our Ref: OAS348 - Manufacturers Ref: 24151

Diagram Part Ref: 17
Click to Enlarge an image of Oase AquaMax Eco Premium 12000 - 16000 / Twin 20000 - 30000 - Impeller Housing Gasket (24151 was 17513)Large image of Oase AquaMax Eco Premium 12000 - 16000 / Twin 20000 - 30000 - Impeller Housing Gasket (24151 was 17513)
Roll over to zoom
Our Price:
£2.62
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 18

Oase Stepped Hosetail Ball End for AquaMax (3 Step) (25269)
Our Ref: OAS196 - Manufacturers Ref: 25269

Diagram Part Ref: 18
Click to Enlarge an image of Oase Stepped Hosetail Ball End for AquaMax (3 Step) (25269)Large image of Oase Stepped Hosetail Ball End for AquaMax (3 Step) (25269)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 19

Oase 2 inch Ball End Hosetail Nut for AquaMax (17584)
Our Ref: OAS195 - Manufacturers Ref: 17584

Diagram Part Ref: 19
Click to Enlarge an image of Oase 2 inch Ball End Hosetail Nut for AquaMax (17584)Large image of Oase 2 inch Ball End Hosetail Nut for AquaMax (17584)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase AquaMax Eco Premium 12000 - 16000 Pump Spare Parts
Diagram - Part 20

Oase O-Ring for AquaMax Ball Hosetail (3560)
Our Ref: OAS142 - Manufacturers Ref: 3560

Diagram Part Ref: 20
Click to Enlarge an image of Oase O-Ring for AquaMax Ball Hosetail (3560)Large image of Oase O-Ring for AquaMax Ball Hosetail (3560)
Roll over to zoom
Our Price:
£0.49
 Quantity:
