Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Pump Spare Parts > Oase AquaMax Pump Spare Parts > Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts

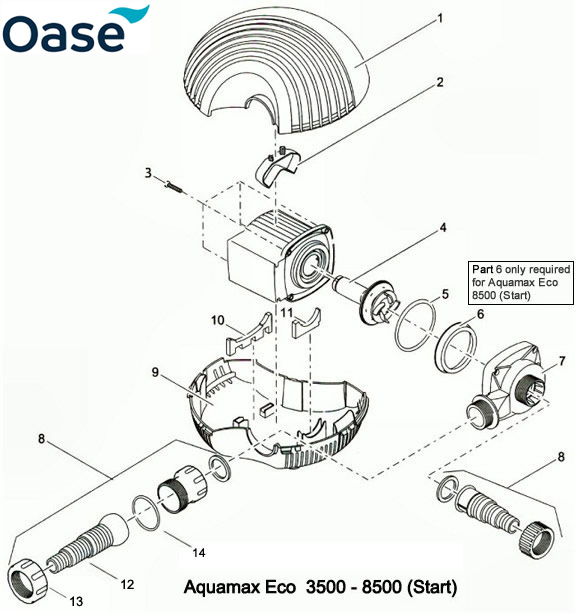

Oase Aquamax Eco 3500 - 8500 Pond Pump Spare Parts (Start)

Oase Aquamax Eco 3500 - 8500 Pond Pump Spare Parts (Start)

The Oase AquaMax Eco 3500 - 8500 pumps spares that are currently available are the top cage, pump spring clamp, pump housing screws, pump impellors, pump chamber O-ring, Impellor holder O-ring, pump chamber, outflow connection pack, bottom cage, pump rubber pad - back and pump rubber pad front

Spare Parts - Quick Links

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 1

Oase AquaMax 3500 - 8500 - Top Cage (35720)
Our Ref: OAS350 - Manufacturers Ref: 35720

Diagram Part Ref: 1

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase AquaMax 3500 - 8500 - Top Cage (35720)Large image of Oase AquaMax 3500 - 8500 - Top Cage (35720)
Roll over to zoom
Our Price:
£17.95
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 2

Oase AquaMax 3500 - 8500 Clamp Spring (33050)
Our Ref: OAS351 - Manufacturers Ref: 33050

Diagram Part Ref: 2

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase AquaMax 3500 - 8500 Clamp Spring (33050)Large image of Oase AquaMax 3500 - 8500 Clamp Spring (33050)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 3

Oase AquaMax Eco 3500 - 5500 Oval Head Screw V2A Din 7985 M5 X 20 H - Single (6055)
Our Ref: OAS333 - Manufacturers Ref: 6055

Diagram Part Ref: 3
Click to Enlarge an image of Oase AquaMax Eco 3500 - 5500 Oval Head Screw V2A Din 7985 M5 X 20 H - Single (6055)Large image of Oase AquaMax Eco 3500 - 5500 Oval Head Screw V2A Din 7985 M5 X 20 H - Single (6055)
Roll over to zoom
Our Price:
£0.49
 Quantity:

Oase AquaMax Eco 3500 - 5500 Oval Head Screw V2A Din 7985 M5 X 30 - Single (9957)
Our Ref: OAS356 - Manufacturers Ref: 9957

Diagram Part Ref: 3
Unfortunately this product Currently Out of Stock
Please click here to send us your details and we will contact you as soon as it becomes available.
Our Price:
£0.49
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 4

Oase AquaMax Eco 3500 - Pump Impeller (21912)
Our Ref: OAS312 - Manufacturers Ref: 21912

Diagram Part Ref: 5
For Aquamax Eco 3500 Only - Not suitable for 3500E
Availability - Currently only 2 in stock


Click to Enlarge an image of Oase AquaMax Eco 3500 - Pump Impeller (21912)Large image of Oase AquaMax Eco 3500 - Pump Impeller (21912)
Roll over to zoom
Our Price:
£28.45
 Quantity:

For The AquaMax Eco Classic 3500E version - Click Here
Pontec PondoMax 3500 Pump Impeller (2019 onwards) (71798)
Our Ref: OAS821 - Manufacturers Ref: 71798

Diagram Part Ref: 3

This impeller has 3 blades and is suitable for the 40w version of the Pondomax Eco 3500
Click to Enlarge an image of Pontec PondoMax 3500 Pump Impeller (2019 onwards) (71798)Large image of Pontec PondoMax 3500 Pump Impeller (2019 onwards) (71798)
Roll over to zoom
Our Price:
£12.26
 Quantity:

Oase AquaMax Eco 5500 - Impeller (21913)
Our Ref: OAS313 - Manufacturers Ref: 21913

Diagram Part Ref: 5
Click to Enlarge an image of Oase AquaMax Eco 5500 - Impeller (21913)Large image of Oase AquaMax Eco 5500 - Impeller (21913)
Roll over to zoom
Our Price:
£47.40
 Quantity:

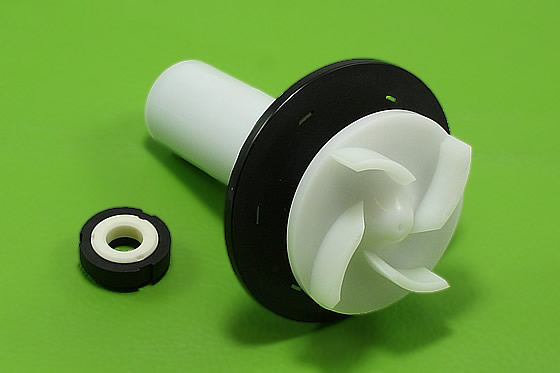

Oase AquaMax Eco 8500 Pump Impeller (11653)
Our Ref: OAS364 - Manufacturers Ref: 11653

Diagram Part Ref: 4

Unfortunately this item has been discontinued by the manufacturer and is no longer available
Click to Enlarge an image of Oase AquaMax Eco 8500 Pump Impeller (11653)Large image of Oase AquaMax Eco 8500 Pump Impeller (11653)
Roll over to zoom

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 5

Oase AquaMax Eco 3500 - 5500 Pump Chamber O-Ring (25969)
Our Ref: OAS212 - Manufacturers Ref: 25969

Diagram Part Ref: 5

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase AquaMax Eco 3500 - 5500 Pump Chamber O-Ring (25969)Large image of Oase AquaMax Eco 3500 - 5500 Pump Chamber O-Ring (25969)
Roll over to zoom
Our Price:
£0.49
 Quantity:

Oase AquaMax Eco 8500 - Inner / Outer Impeller Housing O-Ring (28539)
Our Ref: OAS337 - Manufacturers Ref: 28539

Diagram Part Ref: 5
Click to Enlarge an image of Oase AquaMax Eco 8500 - Inner / Outer Impeller Housing O-Ring (28539)Large image of Oase AquaMax Eco 8500 - Inner / Outer Impeller Housing O-Ring (28539)
Roll over to zoom
Our Price:
£1.78
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 6

Oase AquaMax Eco 8500 Pump Impeller Holder Ring (28125)
Our Ref: OAS812 - Manufacturers Ref: 28125

Diagram Part Ref: 6
Click to Enlarge an image of Oase AquaMax Eco 8500 Pump Impeller Holder Ring (28125)Large image of Oase AquaMax Eco 8500 Pump Impeller Holder Ring (28125)
Roll over to zoom
Our Price:
£3.58
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 7

Oase AquaMax Eco 3500 - 5500 Pump Housing (11825)
Our Ref: OAS813 - Manufacturers Ref: 11825

Diagram Part Ref: 7

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase AquaMax Eco 3500 - 5500 Pump Housing (11825)Large image of Oase AquaMax Eco 3500 - 5500 Pump Housing (11825)
Roll over to zoom
Our Price:
£16.07
 Quantity:

Oase AquaMax Eco 8500 Pump Housing (11824)
Our Ref: OAS814 - Manufacturers Ref: 11824

Diagram Part Ref: 7

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase AquaMax Eco 8500 Pump Housing (11824)Large image of Oase AquaMax Eco 8500 Pump Housing (11824)
Roll over to zoom
Our Price:
£23.64
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 8

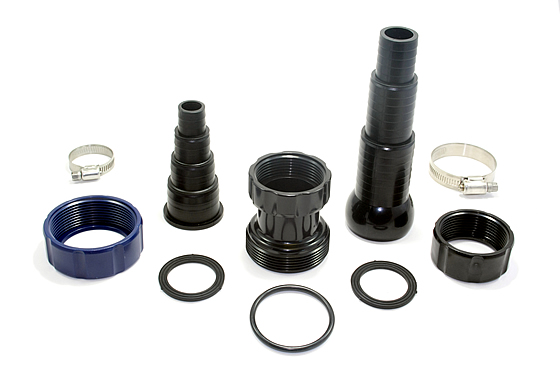

Oase AquaMax Eco 3500 - 8500 Outflow Connection Pack (10515)
Our Ref: OAS357 - Manufacturers Ref: 10515

Diagram Part Ref: 8
Click to Enlarge an image of Oase AquaMax Eco 3500 - 8500 Outflow Connection Pack (10515)Large image of Oase AquaMax Eco 3500 - 8500 Outflow Connection Pack (10515)
Roll over to zoom
Our Price:
£14.15
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 9

Oase AquaMax Eco 3500 - 8500 Bottom Cage (20629)
Our Ref: OAS352 - Manufacturers Ref: 20629

Diagram Part Ref: 9

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase AquaMax Eco 3500 - 8500 Bottom Cage (20629)Large image of Oase AquaMax Eco 3500 - 8500 Bottom Cage (20629)
Roll over to zoom
Our Price:
£12.26
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 10

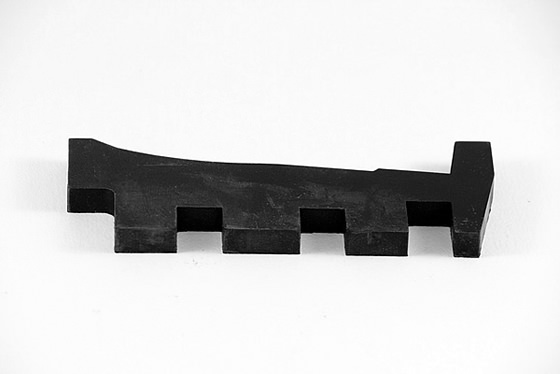

Oase AquaMax Eco 3500 - 5500 Rubber Pump Pad - Back (10460)
Our Ref: OAS365 - Manufacturers Ref: 10460

Diagram Part Ref: 10

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase AquaMax Eco 3500 - 5500 Rubber Pump Pad - Back (10460)Large image of Oase AquaMax Eco 3500 - 5500 Rubber Pump Pad - Back (10460)
Roll over to zoom
Our Price:
£1.78
 Quantity:

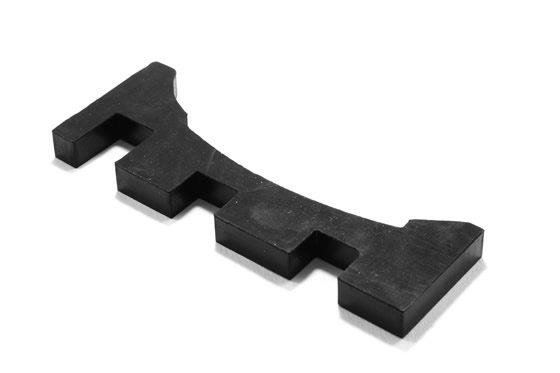

Oase AquaMax Eco 8500 Rubber Pump Pad - Back (10356)
Our Ref: OAS366 - Manufacturers Ref: 10356

Diagram Part Ref: 10
Click to Enlarge an image of Oase AquaMax Eco 8500 Rubber Pump Pad - Back (10356)Large image of Oase AquaMax Eco 8500 Rubber Pump Pad - Back (10356)
Roll over to zoom
Our Price:
£1.34
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 11

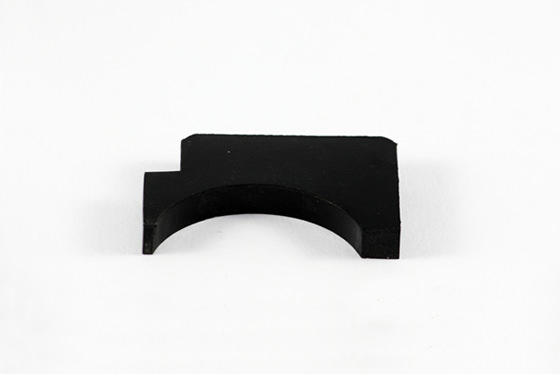

Oase AquaMax Eco 3500 - 8500 Rubber Pump Pad - Front (10382)
Our Ref: OAS367 - Manufacturers Ref: 10382

Diagram Part Ref: 10

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase AquaMax Eco 3500 - 8500 Rubber Pump Pad - Front (10382)Large image of Oase AquaMax Eco 3500 - 8500 Rubber Pump Pad - Front (10382)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 12

Oase Stepped Hosetail Ball End for AquaMax (3 Step) (25269)
Our Ref: OAS196 - Manufacturers Ref: 25269

Diagram Part Ref: 12
Click to Enlarge an image of Oase Stepped Hosetail Ball End for AquaMax (3 Step) (25269)Large image of Oase Stepped Hosetail Ball End for AquaMax (3 Step) (25269)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 13

Oase 2 inch Ball End Hosetail Nut for AquaMax (17584)
Our Ref: OAS195 - Manufacturers Ref: 17584

Diagram Part Ref: 13
Click to Enlarge an image of Oase 2 inch Ball End Hosetail Nut for AquaMax (17584)Large image of Oase 2 inch Ball End Hosetail Nut for AquaMax (17584)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase AquaMax Eco 3500 - 8500 Pond Pump Spare Parts
Diagram - Part 14

Oase O-Ring for AquaMax Ball Hosetail (3560)
Our Ref: OAS142 - Manufacturers Ref: 3560

Diagram Part Ref: 14
Click to Enlarge an image of Oase O-Ring for AquaMax Ball Hosetail (3560)Large image of Oase O-Ring for AquaMax Ball Hosetail (3560)
Roll over to zoom
Our Price:
£0.49
 Quantity:
