Blagdon Single, Twin and Four Outlet Pond Air Pump Instruction Manual
PondOxy 1800-2400-3600 Pond Air Pump Instruction Manual

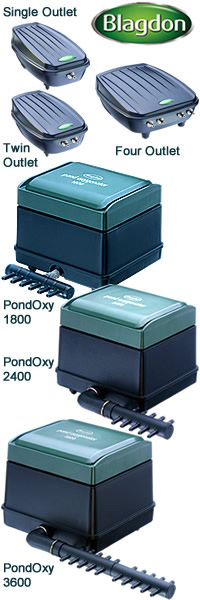

Blagdon Pond Air Pumps

The new range of powerful pond air pumps from Blagdon have strong motors which produce higher flow rates and can pump deep than many other models that we sell but for very similar running costs. All six models have weatherproof bodies but they should not be submerged and so must be placed in location which will not flood. The Single, Twin and Four outlet pond air pumps are designed for the smaller garden ponds and are supplied with an air stone and 5m of air line for each outlet, these pumps are fitted with 1.5m of mains cable. The three larger PondOxy air pumps are aimed at the larger ponds and have more outlets allowing you to spread the air stones around your pond. They do not come with air stones or airline but do have a 5m mains cable. All models are supplied with a 3 year guarantee

Blagdon Pond Air Pump Features
• Low power consumption
• Long life expectancy
• 3 year warranty period
• Minimal maintenance
• Quiet Operation
• Air flowrates from 2.33 lpm - 60 lpm (120 lph - 3600 lph)
• Maximum pumping depth : 1.2m - 3m (3' 11" - 9' 10")
• Single, Twin and Four outlet models include 5m of airline and a air stone per outlet

To see our range of Airline and Air Pump Accessories Click Here

Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you.

Although many factors including humidity, temperature, stocking density and surface area to pond volume ratio, can affect the Oxygen levels within a pond. We generally recommend a minimum air flowrate of:

100 Litres Per Hour (1.7 Litres Per Minute) / 1000 Litres (220 Gallons) of Pond Volume

Or

450 Litres Per Hour (7.5 Litres Per minute) / 1000 Gallons (4500 Litres) of Pond Volume

Air Pump	Litres per hour	Air Stones	Max Depth (m)	Max Pond Volume (Litres)	Watts
Single Outlet	140	1	1.2	1000	4
Twin Outlet	320	2	1.4	2000	5
Four Outlet	640	4	1.6	4000	9
PondOxy 1800	1800	6	2.2	10000*	16
PondOxy 2400	2400	10	2.8	15000*	20
PondOxy 3600	3600	20	3	22000*	32
* Volumes shown are for goldfish ponds, half them for Koi ponds.

Below is a comparison of the outputs from our different air pumps

Air Pump	Watts	Litre / Min	Max Air Stones	Max Pumping Depth	Approx. Optimum Pumping Depth	Weatherproof
Blagdon Liberty Solar Pulse Air Pump	N/A	1	2	N/A	N/A	✔
Solar Oxygenator	N/A	3	2	N/A	N/A	✔
ontec PondoSolar Air 150 Plus	N/A	1.3	1	N/A	N/A	✔
Oase AquaOxy 250	4	4.15	1	1.0m	0.4m	✔
Oase AquaOxy 500	8	8.3	2	1.4m	0.6m	✔
Oase AquaOxy 1000	15	16.6	2	1.6m	0.7m	✔
Oase AquaOxy 2500	40	53	4	3m	0.7m	✔
Oase AquaOxy 4800	15	16.6	2	1.6m	0.7m	✔
Oase AquaOxy 5000	75	99	6	3m	0.7m	✔
Oase AquaOxy 7500	125	144	8	3m	0.7m	✔
Hozelock Air 320	4	5	2	1.5m	-	✔
Hozelock Air 640	8	10	4	1.2m	-	✔
Hozelock Air 1500	17	25	2 - 6	2m	-	✔
Hozelock Air 2700	35	45	2 - 6	2m	-	✔
Hozelock Air 4500	45	75	6+	3m	-	✔
EA Airtech 70	34	70	6+	3.2m	41 lph @ 2m depth	✖
EA Airtech 75	44	75	6+	3.9m	41 lph @ 2m depth	✔
EA Airtech 95	62	95	6+	4.35m	62 lph @ 2m depth	✔
EA Airtech 130	88	130	6+	4.35m	84 lph @ 2m depth	✔
EA Airtech 150	106	150	6+	4.35m	119 lph @ 2m depth	✔
Blagdon Single Outlet	4	2.33	1	1.2m	-	✔
Blagdon Twin Outlet	5	5.33	2	1.4m	-	✔
Blagdon Four Outlet	9	10.66	4	1.6m	-	✔
Blagdon PondOxy 1800	16	30	6	2.2m	-	✔
Blagdon PondOxy 2400	20	40	10	2.8m	-	✔
Blagdon PondOxy 3600	32	60	20	3m	-	✔

To calculate the approximate volume of your pond, select the Shape, Unit of Measurement and amount of shading, then press calculate. If you would like to try different combinations, remember to press Reset between calculations.

Pond Shape

Units

Sunlight

Pond Size

Rectangular

Metres / Litres

Full Sunshine

Circular

Feet / Gallons

Partly Shaded



Actual Volume
Effective Volume

What is Effective Volume ?
The effective volume is the quantity of water in your pond, plus an allowance for shallow and or ponds exposed to high levels of sunlight. Both of these situations will result in a higher than normal algae growth, and fish pollution. We advise that to ensure your that your equipment is correctly sized, the effective volume be considered the minimum size for the equipment you select. However do remember to check the details of the product you are interested in, to ensure that there are no other allowances or consideration specific to that product are required.
