Aquateck Green Genie Combined Filter Units (2023)
| Aquateck Green Genie Combined Filter Units (2023) |
|
|

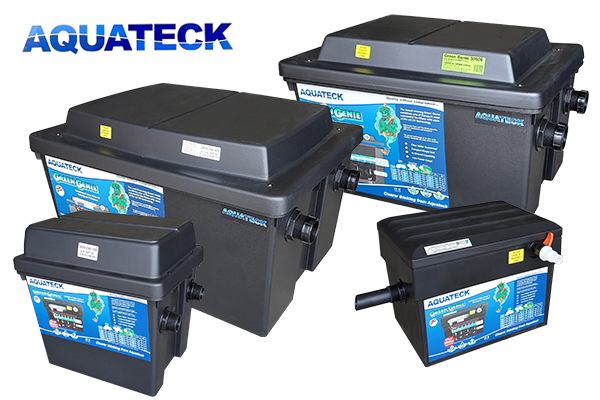

The Aquateck 2023 Green Genie 2500 pond filtration systems have been re-developed after consultation with water garden professionals and specialists in the field of water treatment. This award winning filter combines one of Europe's most successful bio-filters with updated UV technology. Dimple Foam and Plastic Biomedia filter-medium ensure optimum mechanical and biological efficiency. The proven technology of the conventional ultraviolet clarifier completes the clear water process.
Connection Sizes
Filtration Unit | Suggested Hose mm(inch) | Outlet Size mm (inch) | Green Genie 2500 - 6500 | 25 (1) | 1 x 32 (1¼") | Green Genie 12500 | 25 (1) | 2 x 32 (1¼") | Green Genie 18000 | 25 (1) | 2 x 50 (2") | Green Genie 24000 - 60000 | 32mm (1¼") | 2 x 50 (2") |
Hozetails and 15cm / 6" discharge pipe(s) included
Supplied with a 2 year guarantee and 2m of cable
Green Genie 2500 - 60000 Combined Filter Unit - 2019 Features Combined filtration using sheet foam and plastic biomedia Built in 7w - 80w UV Clarifier (depending on model) Inlet control valve on smaller models Simple effective mechanical and biological filtration. |

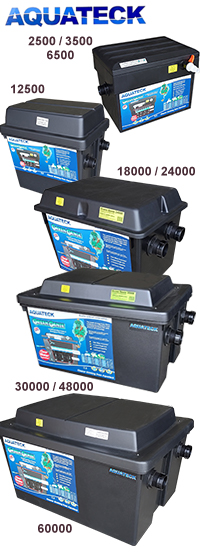

Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you. Pond Volume | Suggested System | Included UV | Suggested Hose mm (inch) | Dimensions LxWxD mm | Maximum Flowrate LPH (GPH) | Outlet Size mm (inch) | Goldfish | Koi | 1800 (400) | 1250 (275) | Green Genie 2500 | 7w | 25 (1) | 380 x 295 x 285 | 1750 (385) | 1 x 32 (1¼") | 2500 (550) | 1750 (385) | Green Genie 3500 | 10w | 25 (1) | 380 x 295 x 285 | 1800 (396) | 1 x 32 (1¼") | 4500 (990) | 3250 (715) | Green Genie 6500 | 18w | 25 (1) | 380 x 295 x 285 | 2500 (550) | 1 x 32 (1¼") | 6250 (1375) | 4350 (955) | Green Genie 12500 | 18w | 25 (1) | 395 x 385 x 295 | 3450 (759) | 2 x 32 (1¼") | 7200 (1585) | 4500 (990) | Green Genie 18000 | 18w | 25 (1) | 550 x 400 x 390 | 4500 (990) | 2 x 50 (2") | 9600 (2110) | 6000 (1320) | Green Genie 24000 | 25w | 32mm (1¼") | 550 x 400 x 390 | 6000 (1320) | 2 x 50 (2") | 12000 (4425) | 9000 (1980) | Green Genie 30000 | 25w | 32mm (1¼") | 695 x 500 x 415 | 9000 (1980) | 2 x 50 (2") | 19200 (4425) | 10080 (2220) | Green Genie 48000 | 2 x 25w | 32mm (1¼") | 695 x 500 x 415 | 10080 (2200) | 2 x 50 (2") | 24000 (5280) | 12630 (2780) | Green Genie 60000 | 2 x 40w | 32mm (1¼") | 805 x 605 x 490 | 12000 (2640) | 2 x 50 (2") | |
To calculate the approximate volume of your pond, select the Shape, Unit of Measurement and amount of shading, then press calculate. If you would like to try different combinations, remember to press Reset between calculations. What is Effective Volume ? The effective volume is the quantity of water in your pond, plus an allowance for shallow and or ponds exposed to high levels of sunlight. Both of these situations will result in a higher than normal algae growth, and fish pollution. We advise that to ensure your that your equipment is correctly sized, the effective volume be considered the minimum size for the equipment you select. However do remember to check the details of the product you are interested in, to ensure that there are no other allowances or consideration specific to that product are required. |
