Pontec PondoMax Eco Waterfall / Filter Pumps

You Are Here : Pond Products > Pumping and Filtering your Pond > Pond Filter Pumps > Pontec PondoMax Eco Waterfall / Filter Pumps

Pontec PondoMax Eco Waterfall / Filter Pumps Instruction Manual

Spare Parts for Pontec PondoMax Eco Waterfall / Filter Pumps

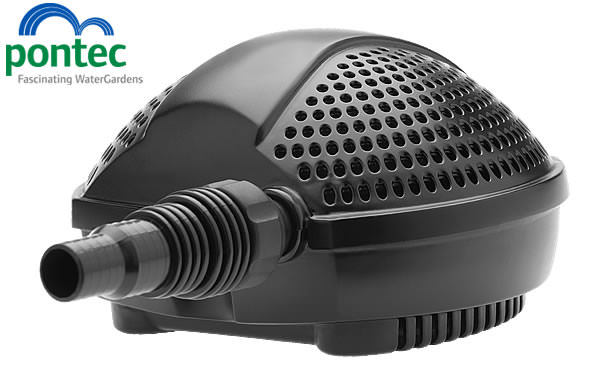

Pontec PondoMax Eco Waterfall / Filter Pumps

The Pontec Pondomax Eco Waterfall and Filter pumps are an energy efficient pump capable of handling solid particles of up to 4mm (1500 / 2500) and 8mm (3500 - 17000). These pumps are supplied with a stepped hosetail which will allow various hose sizes up to 38mm (1½") diameter and 10m of mains cable. To protect against overheating (due to dry running) these pumps also feature a thermal overload cut-out.

The Pontec Pondomax Eco Waterfall and Filter pumps are supplied with a 3 year warranty.

Pontec Pondomax Eco 5000 Waterfall and Filter Pump Features
• Will pump debris particles of up to 4mm (1500 / 2500) and 8mm (3500 - 17000)
• Wider range available: 1500 - 17000 (1500 - 17000 lph)
• 10m Mains Cable
• 3 Year Warranty.

Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you.

Model	Watts	Flowrate LPH (GPH)							Max Lift M (ft)	Outlet Size mm (")
Model	Watts	0m	0.5m	1.0m	1.5m	2.0m	2.5m	3.0m	Max Lift M (ft)	Outlet Size mm (")
Pondomax Eco 1500	25	1500 (330)	1100 (242)	700 (154)	300 (66)	0	0	0	1.9 (6.25)	20,25,32,38 (¾,1,1¼,1½)
Pondomax Eco 2500	40	2500 (550)	1900 (418)	1350 (297)	800 (176)	220 (48)	0	0	2.2 (7.25)	20,25,32,38 (¾,1,1¼,1½)
Pondomax Eco 3500	45	3600 (790)	2700 (595)	1900 (418)	1200 (264)	300 (66)	0	0	2.2 (7.25)	25,32,38 (1,1¼,1½)
Pondomax Eco 5000	60	5000 (1100)	4500 (990)	3700 (814)	2800 (616)	1800 (396)	800 (176)	0	2.6 (8.5)	25,32,38 (1,1¼,1½)
Pondomax Eco 8000	70	8000 (1760)	7000 (1540)	5700 (1254)	4100 (902)	2650 (583)	1020 (224)	0	2.8 (9.2)	25,32,38 (1,1¼,1½)
Pondomax Eco 11000	95	11000 (2420)	9000 (1980)	7750 (1705)	6230 (1370)	4500 (990)	3000 (660)	0	3.0 (9.8)	25,32,38 (1,1¼,1½)
Pondomax Eco 14000	140	14000 (3080)	12000 (2640)	10300 (2266)	8100 (1782)	5880 (1293)	3510 (772)	1470 (323)	3.2 (10.5)	25,32,38 (1,1¼,1½)
Pondomax Eco 17000	180	17000 (3740)	15000 (3300)	12300 (2706)	9900 (2178)	7200 (1293)	4800 (1056)	2400 (528)	3.5 (11.5)	25,32,38 (1,1¼,1½)

To calculate the approximate volume of your pond, select the Shape, Unit of Measurement and amount of shading, then press calculate. If you would like to try different combinations, remember to press Reset between calculations.

Pond Shape

Units

Sunlight

Pond Size

Rectangular

Metres / Litres

Full Sunshine

Circular

Feet / Gallons

Partly Shaded



Actual Volume
Effective Volume

What is Effective Volume ?
The effective volume is the quantity of water in your pond, plus an allowance for shallow and or ponds exposed to high levels of sunlight. Both of these situations will result in a higher than normal algae growth, and fish pollution. We advise that to ensure your that your equipment is correctly sized, the effective volume be considered the minimum size for the equipment you select. However do remember to check the details of the product you are interested in, to ensure that there are no other allowances or consideration specific to that product are required.
