Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Ultra Violet Light Spare Parts > Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts that are currently available are the electrical end caps, replacement bulbs, quartz sleeves, quartz O rings, quartz retaining nuts, quartz retaining nut securing screw, electrical end cap O rings, main body housings, hosetail packs, inspection window and inspection window nut.

Spare Parts - Quick Links

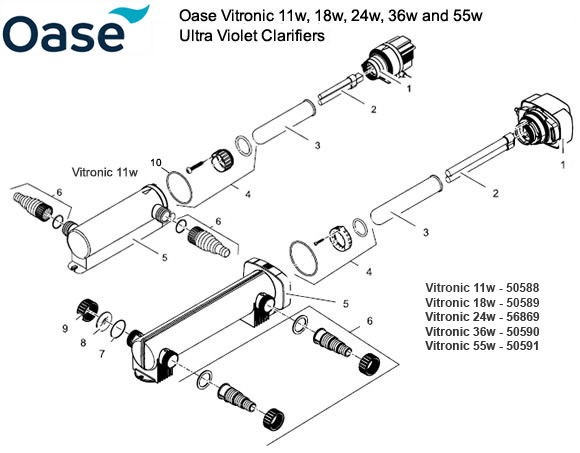

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts
Diagram - Part 1

Oase Vitronic 11w - Electrical Head Unit (15665)
Our Ref: OAS406 - Manufacturers Ref: 15665

Diagram Part Ref: 1
Click to Enlarge an image of Oase Vitronic 11w - Electrical Head Unit (15665)Large image of Oase Vitronic 11w - Electrical Head Unit (15665)
Roll over to zoom
Our Price:
£52.13
 Quantity:

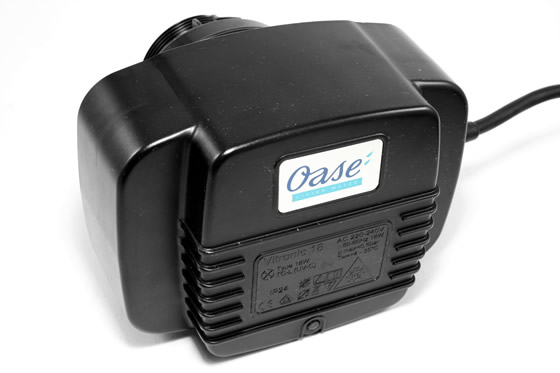

Oase Vitronic 18w Electrical Head Unit (35839)
Our Ref: OAS825 - Manufacturers Ref: 35839

Diagram Part Ref: 1

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase Vitronic 18w Electrical Head Unit (35839)Large image of Oase Vitronic 18w Electrical Head Unit (35839)
Roll over to zoom
Our Price:
£83.50
 Quantity:

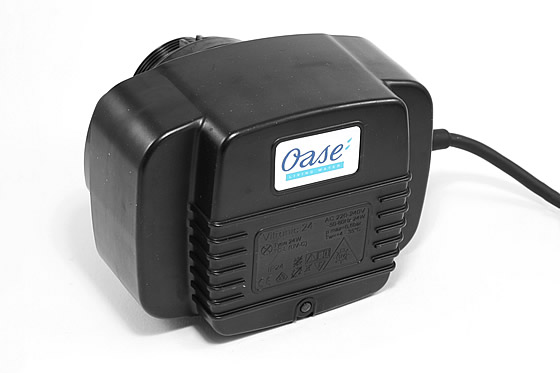

Oase Vitronic 24w Electrical Head Unit (22219)
Our Ref: OAS826 - Manufacturers Ref: 22219

Diagram Part Ref: 1

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Vitronic 24w Electrical Head Unit (22219)Large image of Oase Vitronic 24w Electrical Head Unit (22219)
Roll over to zoom
Our Price:
£94.84
 Quantity:

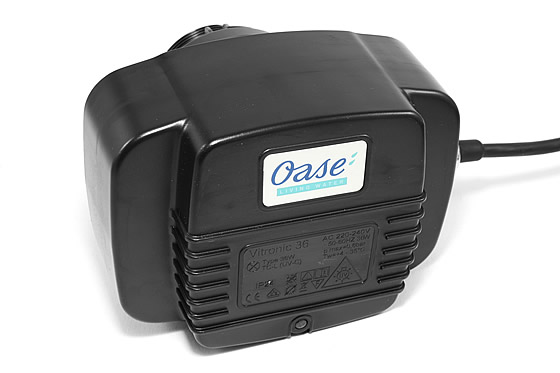

Oase Vitronic 36w Electrical Head Unit (35840)
Our Ref: OAS827 - Manufacturers Ref: 35840

Diagram Part Ref: 1
Click to Enlarge an image of Oase Vitronic 36w Electrical Head Unit (35840)Large image of Oase Vitronic 36w Electrical Head Unit (35840)
Roll over to zoom
Our Price:
£102.52
 Quantity:

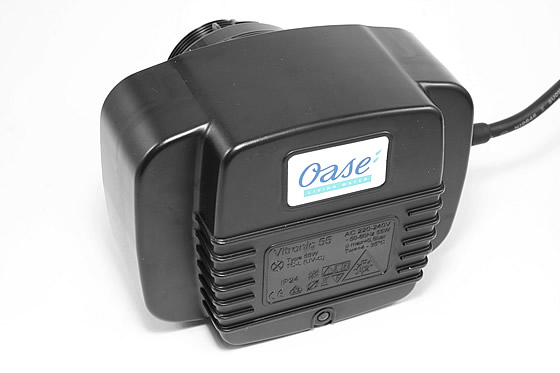

Oase Vitronic 55w Electrical Head Unit (35841)
Our Ref: OAS828 - Manufacturers Ref: 35841

Diagram Part Ref: 1

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Vitronic 55w Electrical Head Unit (35841)Large image of Oase Vitronic 55w Electrical Head Unit (35841)
Roll over to zoom
Our Price:
£135.67
 Quantity:

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts
Diagram - Part 2

Oase - 11w PLS UV Bulb (56612) (2 Pin)
Our Ref: TMB019 - Manufacturers Ref: 56112

Diagram Part Ref: 1

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 11w PLS UV Bulb (56612) (2 Pin)Large image of Oase - 11w PLS UV Bulb (56612) (2 Pin)
Roll over to zoom
Our Price:
£26.99
 Quantity:

UV Bulb Specification
• Description : Oase 11w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 234mm
• Length - Glass : 194mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm
Oase - 18w PLL UV Bulb (4 Pin) (56236)
Our Ref: TMB014 - Manufacturers Ref: 56236

Diagram Part Ref: 1

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 18w PLL UV Bulb (4 Pin) (56236)Large image of Oase - 18w PLL UV Bulb (4 Pin) (56236)
Roll over to zoom
Our Price:
£45.98
 Quantity:

UV Bulb Specification
• Description : Oase 18w PLL UV bulb (4 pins at one end)
• Length - Overall : 225mm
• Length - Excluding Pins : 218mm
• Length - Glass : 195mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Oase - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (56237)
Our Ref: TMB015 - Manufacturers Ref: 56237

Diagram Part Ref: 1

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (56237)Large image of Oase - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (56237)
Roll over to zoom
Our Price:
£48.98
 Quantity:

UV Bulb Specification
• Description : Oase 24w PLL UV bulb (4 pins at one end)
• Length - Overall : 321mm
• Length - Excluding Pins : 314mm
• Length - Glass : 290mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Oase - 36W - 4 Pin PL-L TUV Ultra Violet Bulb (55432)
Our Ref: TMB016 - Manufacturers Ref: 55432

Diagram Part Ref: 1

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 36W - 4 Pin PL-L TUV Ultra Violet Bulb (55432)Large image of Oase - 36W - 4 Pin PL-L TUV Ultra Violet Bulb (55432)
Roll over to zoom
Our Price:
£54.98
 Quantity:

UV Bulb Specification
• Description : Oase 36w PLL UV bulb (4 pins at one end)
• Length - Overall : 416mm
• Length - Excluding Pins : 409mm
• Length - Glass : 384mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Oase - 55W - 4 Pin PL-L TUV Ultra Violet Bulb (56636)
Our Ref: TMB017 - Manufacturers Ref: 56636

Diagram Part Ref: 1

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 55W - 4 Pin PL-L TUV Ultra Violet Bulb (56636)Large image of Oase - 55W - 4 Pin PL-L TUV Ultra Violet Bulb (56636)
Roll over to zoom
Our Price:
£62.99
 Quantity:

UV Bulb Specification
• Description : Oase 55w PLL UV bulb (4 pins at one end)
• Length - Overall : 538mm
• Length - Excluding Pins : 531mm
• Length - Glass : 507mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts
Diagram - Part 3

Oase Vitronic 11w Quartz Sleeve (13312 was 22622)
Our Ref: OAQ001 - Manufacturers Ref: 13312

Add Oase Silicone Grease - 10ml (+ £5.38)

Diagram Part Ref: 1
Click to Enlarge an image of Oase Vitronic 11w Quartz Sleeve (13312 was 22622)Large image of Oase Vitronic 11w Quartz Sleeve (13312 was 22622)
Roll over to zoom
Our Price:
£26.56
 Quantity:

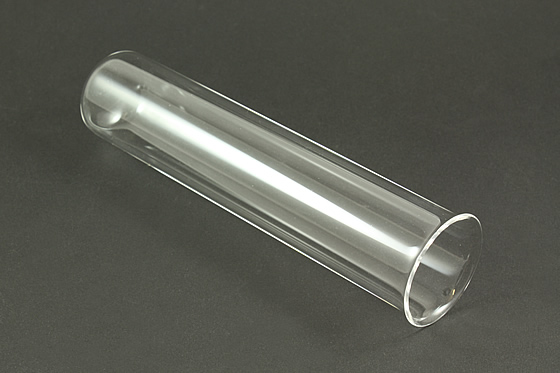

Oase Vitronic 18w Sleeve (13329)
Our Ref: OAQ008 - Manufacturers Ref: 13329

Diagram Part Ref: 3
This quartz sleeve is suitable for Vitronic 18w units that DO NOT have a securing screw which holds the quartz sleeve nut in place.
Click to Enlarge an image of Oase Vitronic 18w Sleeve (13329)Large image of Oase Vitronic 18w Sleeve (13329)
Roll over to zoom
Our Price:
£26.56
 Quantity:

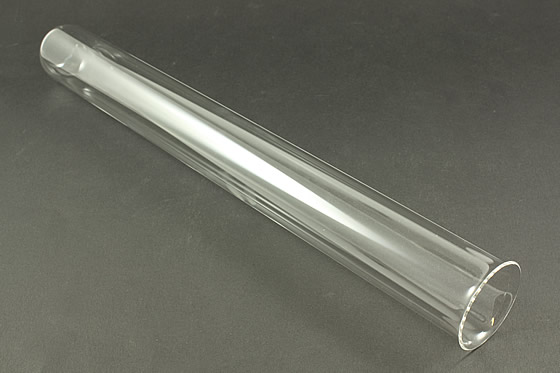

Oase Vitronic 18w, 24w and 36w Quartz Sleeve (21763)
Our Ref: OAQ006 - Manufacturers Ref: 21763

Diagram Part Ref: 3
This quartz sleeve is suitable for Vitronic 18w, 24w and 36w units that have a securing screw which holds the quartz sleeve nut in place.
Click to Enlarge an image of Oase Vitronic 18w, 24w and 36w Quartz Sleeve (21763)Large image of Oase Vitronic 18w, 24w and 36w Quartz Sleeve (21763)
Roll over to zoom
Our Price:
£28.44
 Quantity:

Oase Vitronic 55w Quartz Sleeve (13331)
Our Ref: OAQ007 - Manufacturers Ref: 13331

Diagram Part Ref: 3
Suitable for all 55w Vitronic versions
Click to Enlarge an image of Oase Vitronic 55w Quartz Sleeve (13331)Large image of Oase Vitronic 55w Quartz Sleeve (13331)
Roll over to zoom
Our Price:
£31.22
 Quantity:

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts
Diagram - Part 4

Oase Vitronic 11w - Quartz Nut Set - WITH Locking Screw (15535)
Our Ref: OAS407 - Manufacturers Ref: 15535

Diagram Part Ref: 4
Click to Enlarge an image of Oase Vitronic 11w - Quartz Nut Set - WITH Locking Screw (15535)Large image of Oase Vitronic 11w - Quartz Nut Set - WITH Locking Screw (15535)
Roll over to zoom
Our Price:
£5.38
 Quantity:

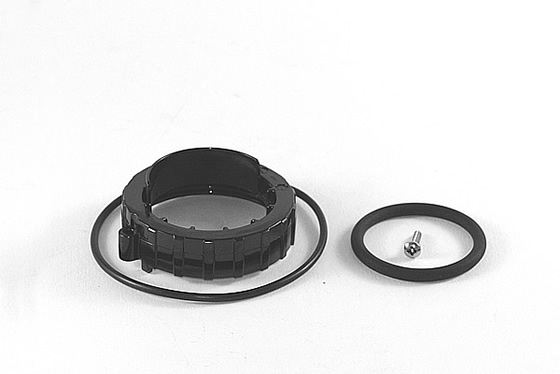

Oase Vitronic 18w - 55w Quartz Nut Set - WITH Locking Screw (15748)
Our Ref: OAS408 - Manufacturers Ref: 15748

Diagram Part Ref: 5
Click to Enlarge an image of Oase Vitronic 18w - 55w Quartz Nut Set - WITH Locking Screw (15748)Large image of Oase Vitronic 18w - 55w Quartz Nut Set - WITH Locking Screw (15748)
Roll over to zoom
Our Price:
£8.04
 Quantity:

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts
Diagram - Part 5

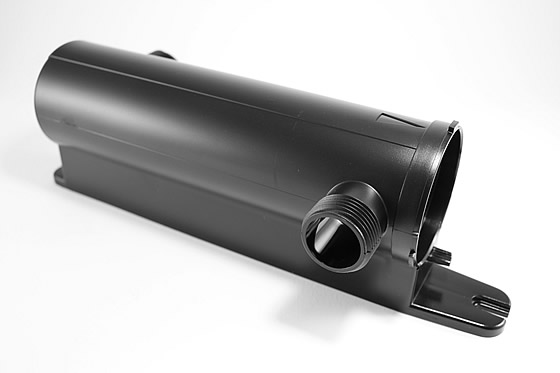

Oase Vitronic 11w Main Body (26940)
Our Ref: OAS829 - Manufacturers Ref: 26940

Diagram Part Ref: 5
Click to Enlarge an image of Oase Vitronic 11w Main Body (26940)Large image of Oase Vitronic 11w Main Body (26940)
Roll over to zoom
Our Price:
£12.26
 Quantity:

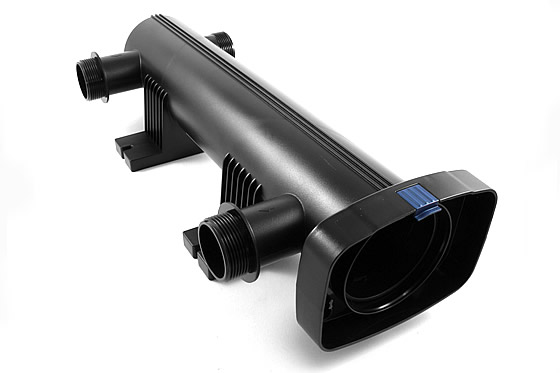

Oase Vitronic 18w, 24w and 36w Main Body (22206)
Our Ref: OAS830 - Manufacturers Ref: 22206

Diagram Part Ref: 5
Click to Enlarge an image of Oase Vitronic 18w, 24w and 36w Main Body (22206)Large image of Oase Vitronic 18w, 24w and 36w Main Body (22206)
Roll over to zoom
Our Price:
£31.22
 Quantity:

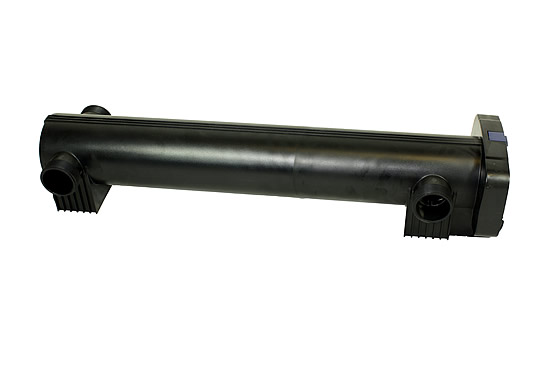

Oase Vitronic 55w Main Body (35797)
Our Ref: OAS831 - Manufacturers Ref: 35797

Diagram Part Ref: 5

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase Vitronic 55w Main Body (35797)Large image of Oase Vitronic 55w Main Body (35797)
Roll over to zoom
Our Price:
£31.22
 Quantity:

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts
Diagram - Part 6

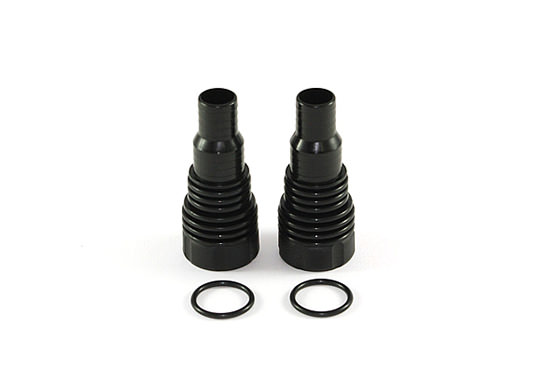

Oase Vitronic 11w Hosetail Pack (Pack of 2) (27576)
Our Ref: OAS832 - Manufacturers Ref: 27576

Diagram Part Ref: 6

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Vitronic 11w Hosetail Pack (Pack of 2) (27576)Large image of Oase Vitronic 11w Hosetail Pack (Pack of 2) (27576)
Roll over to zoom
Our Price:
£8.04
 Quantity:

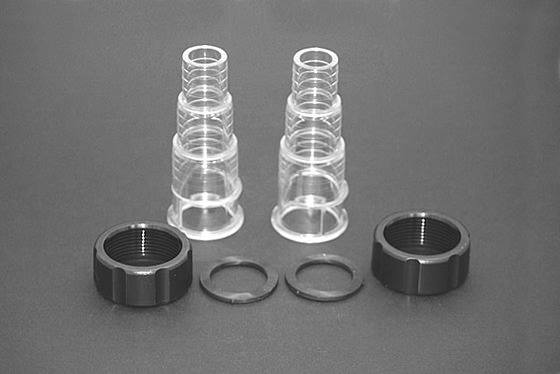

Oase Vitronic 18w, 24w, 36w and 55w Hosetail Pack (Pack of 2) (35877)
Our Ref: OAS833 - Manufacturers Ref: 35877

Diagram Part Ref: 6
Click to Enlarge an image of Oase Vitronic 18w, 24w, 36w and 55w Hosetail Pack (Pack of 2) (35877)Large image of Oase Vitronic 18w, 24w, 36w and 55w Hosetail Pack (Pack of 2) (35877)
Roll over to zoom
Our Price:
£10.38
 Quantity:

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts
Diagram - Part 7

Oase Vitronic 18w, 24w and 36w 1 1/2 inch Inspection Window Gasket (19491)
Our Ref: OAS225 - Manufacturers Ref: 19491

Diagram Part Ref: 7
Click to Enlarge an image of Oase Vitronic 18w, 24w and 36w 1 1/2 inch Inspection Window Gasket (19491)Large image of Oase Vitronic 18w, 24w and 36w 1 1/2 inch Inspection Window Gasket (19491)
Roll over to zoom
Our Price:
£1.34
 Quantity:

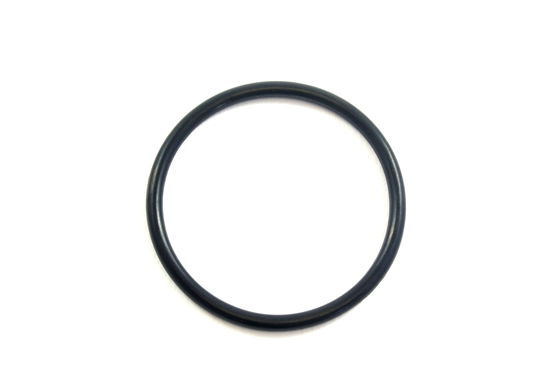

Oase Vitronic 55w Inspection Window O Ring (3555)
Our Ref: OAS835 - Manufacturers Ref: 3555

Diagram Part Ref: 7
Click to Enlarge an image of Oase Vitronic 55w Inspection Window O Ring (3555)Large image of Oase Vitronic 55w Inspection Window O Ring (3555)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts
Diagram - Part 8

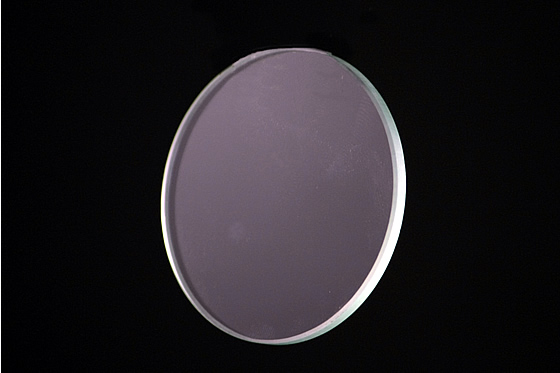

Oase Vitronic 55w Inspection Window Glass (29421)
Our Ref: OAS837 - Manufacturers Ref: 29421

Diagram Part Ref: 8
Click to Enlarge an image of Oase Vitronic 55w Inspection Window Glass (29421)Large image of Oase Vitronic 55w Inspection Window Glass (29421)
Roll over to zoom
Our Price:
£4.43
 Quantity:

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts
Diagram - Part 9

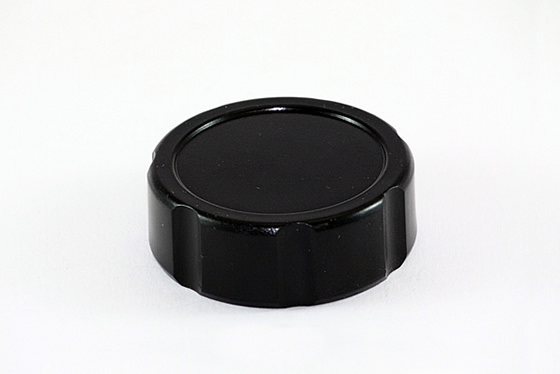

Oase Vitronic 18w, 24w and 36w - 1½ inch Blanking Cap (15445)
Our Ref: OAS486 - Manufacturers Ref: 15445

Diagram Part Ref: 9
Click to Enlarge an image of Oase Vitronic 18w, 24w and 36w - 1½ inch Blanking Cap (15445)Large image of Oase Vitronic 18w, 24w and 36w - 1½ inch Blanking Cap (15445)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase Vitronic 55w Inspection Window Nut (12096)
Our Ref: OAS836 - Manufacturers Ref: 12096

Diagram Part Ref: 9
Click to Enlarge an image of Oase Vitronic 55w Inspection Window Nut (12096)Large image of Oase Vitronic 55w Inspection Window Nut (12096)
Roll over to zoom
Our Price:
£1.34
 Quantity:

Oase Vitronic 11w - 55w Ultra Violet Clarifier Spare Parts
Diagram - Part 10

Oase O-Ring for UVC 7W / 9W / 11W - Head Unit (25969)
Our Ref: OAS212 - Manufacturers Ref: 25969

Diagram Part Ref: 10
Click to Enlarge an image of Oase O-Ring for UVC 7W / 9W / 11W - Head Unit (25969)Large image of Oase O-Ring for UVC 7W / 9W / 11W - Head Unit (25969)
Roll over to zoom
Our Price:
£0.49
 Quantity:
