Oase PondoVac 3 and 4 Vacuum Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Vacuum Spare Parts > Oase PondoVac 3 and 4 Vacuum Spare Parts

Oase Pondovac 3 and 4 Vacuum Spare Parts

Oase Pondovac 3 and 4 Vacuum Spare Parts

The Oase Pondovac 4 Vacuum spare parts that are currently available are the handle assembly, main motor head, foam filters, center tube base plate, main body, head / body clamp, discharge hose, wheels, suction hose, suction distributor, black rigid suction pipe, clear rigid suction pipe, rubber seal set, dry hoover bag, discharge connection sealing plug, nozzle set and surface brush,

Spare Parts - Quick Links

Oase PondoVac 3 and 4 Vacuum Spare Parts

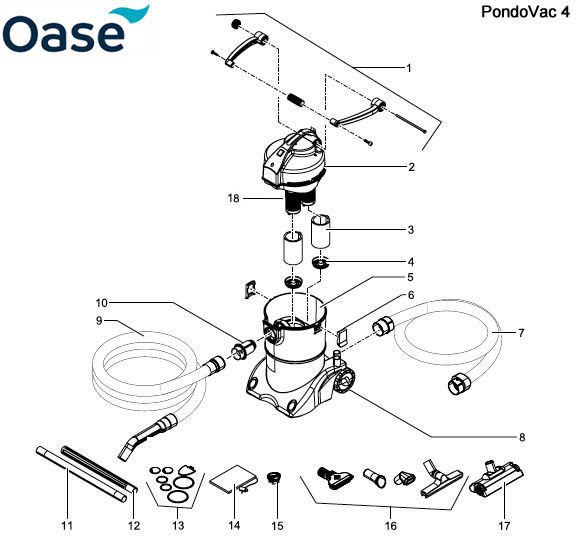

Diagram - Part 1

Oase PondoVac 3 / 4 / 5- Handle Assembly (44024 was 13911)
Our Ref: OAS765 - Manufacturers Ref: 44024

Diagram Part Ref: 1
Click to Enlarge an image of Oase PondoVac 3 / 4 / 5- Handle Assembly (44024 was 13911)Large image of Oase PondoVac 3 / 4 / 5- Handle Assembly (44024 was 13911)
Roll over to zoom
Our Price:
£13.22
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 2

Oase PondoVac 3 and 4 - Motor Section (89592 was 13453)
Our Ref: OAS766 - Manufacturers Ref: 89592

Diagram Part Ref: 2


Supplied with a moulded UK 3 pin plug

Click to Enlarge an image of Oase PondoVac 3 and 4 - Motor Section (89592 was 13453)Large image of Oase PondoVac 3 and 4 - Motor Section (89592 was 13453)
Roll over to zoom
Our Price:
£173.65
 Quantity:

Please note that this head is for the more powerful PondoVac 4 which produces up to 5000 litres per hour. It can also be used on a PondoVac 3 to upgrade its performance or as a replacement for the original which produced 4000 litres per hour.

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 3

Oase PondoVac 3 and 4 - Filter Foam (43996 was 26760)
Our Ref: OAS767 - Manufacturers Ref: 43996

Diagram Part Ref: 3
Click to Enlarge an image of Oase PondoVac 3 and 4 - Filter Foam (43996 was 26760)Large image of Oase PondoVac 3 and 4 - Filter Foam (43996 was 26760)
Roll over to zoom
Our Price:
£5.38
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 4

Oase PondoVac 3 and 4 - Center Tube Base Plate (43999 was 27183)
Our Ref: OAS768 - Manufacturers Ref: 43999

Diagram Part Ref: 4
Click to Enlarge an image of Oase PondoVac 3 and 4 - Center Tube Base Plate (43999 was 27183)Large image of Oase PondoVac 3 and 4 - Center Tube Base Plate (43999 was 27183)
Roll over to zoom
Our Price:
£3.58
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 5

Oase PondoVac 3 and 4 - Main Body (13912)
Our Ref: OAS769 - Manufacturers Ref: 13912

Diagram Part Ref: 5

Availability - Currently only 1 in stock


Our Price:
£87.26
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 6

Oase PondoVac 3 / 4 / 5 Head / Body Clamp (44026 was 29464)
Our Ref: OAS770 - Manufacturers Ref: 44026

Diagram Part Ref: 6
Click to Enlarge an image of Oase PondoVac 3 / 4 / 5 Head / Body Clamp (44026 was 29464)Large image of Oase PondoVac 3 / 4 / 5 Head / Body Clamp (44026 was 29464)
Roll over to zoom
Our Price:
£1.69
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 7

Oase PondoVac 3 and 4 - Discharge Hose (43992 was 14102)
Our Ref: OAS771 - Manufacturers Ref: 43992

Diagram Part Ref: 7
Click to Enlarge an image of Oase PondoVac 3 and 4 - Discharge Hose (43992 was 14102)Large image of Oase PondoVac 3 and 4 - Discharge Hose (43992 was 14102)
Roll over to zoom
Our Price:
£27.41
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 8

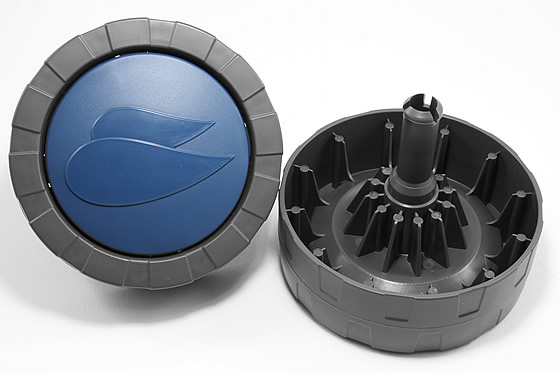

Oase PondoVac 3 and 4 - Wheel Set (13910)
Our Ref: OAS772 - Manufacturers Ref: 13910

Diagram Part Ref: 8

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase PondoVac 3 and 4 - Wheel Set (13910)Large image of Oase PondoVac 3 and 4 - Wheel Set (13910)
Roll over to zoom
Our Price:
£12.26
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 9

Oase PondoVac 3 / 4 / 5 - Suction Hose Assembly (5M) (44029 was 13490)
Our Ref: OAS773 - Manufacturers Ref: 44029

Diagram Part Ref: 9
Click to Enlarge an image of Oase PondoVac 3 / 4 / 5 - Suction Hose Assembly (5M) (44029 was 13490)Large image of Oase PondoVac 3 / 4 / 5 - Suction Hose Assembly (5M) (44029 was 13490)
Roll over to zoom
Our Price:
£33.10
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 10

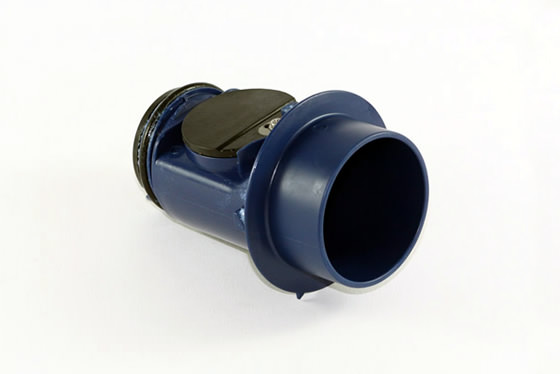

Oase PondoVac 3 and 4 - Suction Distributor (Blue) (43990 was 13436)
Our Ref: OAS774 - Manufacturers Ref: 43990

Diagram Part Ref: 10
Click to Enlarge an image of Oase PondoVac 3 and 4 - Suction Distributor (Blue) (43990 was 13436)Large image of Oase PondoVac 3 and 4 - Suction Distributor (Blue) (43990 was 13436)
Roll over to zoom
Our Price:
£10.38
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 11

Oase PondoVac - 3 / 4 / 5 Rigid Suction Pipe (500mm - Clear) (44003)
Our Ref: OAS753 - Manufacturers Ref: 44003

Diagram Part Ref: 11
Click to Enlarge an image of Oase PondoVac - 3 / 4 / 5 Rigid Suction Pipe (500mm - Clear) (44003)Large image of Oase PondoVac - 3 / 4 / 5 Rigid Suction Pipe (500mm - Clear) (44003)
Roll over to zoom
Our Price:
£11.34
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 12

Oase PondoVac 3 and 4 Rigid Suction Pipe (500mm - Black) (44000)
Our Ref: OAS752 - Manufacturers Ref: 44000

Diagram Part Ref: 12
Not compatible with Aluminium suction pipe tubes
Click to Enlarge an image of Oase PondoVac 3 and 4 Rigid Suction Pipe (500mm - Black) (44000)Large image of Oase PondoVac 3 and 4 Rigid Suction Pipe (500mm - Black) (44000)
Roll over to zoom
Our Price:
£10.38
 Quantity:

Oase PondoVac 3 / 4 / 5 Rigid Suction Pipe (Aluminium) (44028 was 16347)
Our Ref: OAS782 - Manufacturers Ref: 44028

Diagram Part Ref: 12
Not compatible with Black suction pipe tubes
Click to Enlarge an image of Oase PondoVac 3 / 4 / 5 Rigid Suction Pipe (Aluminium) (44028 was 16347)Large image of Oase PondoVac 3 / 4 / 5 Rigid Suction Pipe (Aluminium) (44028 was 16347)
Roll over to zoom
Our Price:
£14.15
 Quantity:

Length : 605mm

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 13

Oase PondoVac 3 and 4 - Rubber Seal Set (35398)
Our Ref: OAS775 - Manufacturers Ref: 35398

Diagram Part Ref: 4
Click to Enlarge an image of Oase PondoVac 3 and 4 - Rubber Seal Set (35398)Large image of Oase PondoVac 3 and 4 - Rubber Seal Set (35398)
Roll over to zoom
Our Price:
£13.22
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 14

Oase PondoVac 3 / 4 / 5 Strainer Bag (44005 was 27756)
Our Ref: OAS780 - Manufacturers Ref: 44005

Diagram Part Ref: 14

Bag Dimensions: Length: 57cm x Width: 3cm
Click to Enlarge an image of Oase PondoVac 3 / 4 / 5 Strainer Bag (44005 was 27756)Large image of Oase PondoVac 3 / 4 / 5 Strainer Bag (44005 was 27756)
Roll over to zoom
Our Price:
£12.26
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 15

Oase PondoVac 3 and 4 - Discharge Connection Sealing Plug (44002 was 27519)
Our Ref: OAS777 - Manufacturers Ref: 44002

Diagram Part Ref: 15
Click to Enlarge an image of Oase PondoVac 3 and 4 - Discharge Connection Sealing Plug (44002 was 27519)Large image of Oase PondoVac 3 and 4 - Discharge Connection Sealing Plug (44002 was 27519)
Roll over to zoom
Our Price:
£2.62
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 16

Oase PondoVac 3 and 4 - Nozzle Set (13909)
Our Ref: OAS778 - Manufacturers Ref: 13909

Diagram Part Ref: 16
Click to Enlarge an image of Oase PondoVac 3 and 4 - Nozzle Set (13909)Large image of Oase PondoVac 3 and 4 - Nozzle Set (13909)
Roll over to zoom
Our Price:
£17.95
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 17

Oase PondoVac 3 / 4 / 5 Surface Brush (44025)
Our Ref: OAS779 - Manufacturers Ref: 44025

Diagram Part Ref: 17

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase PondoVac 3 / 4 / 5 Surface Brush (44025)Large image of Oase PondoVac 3 / 4 / 5 Surface Brush (44025)
Roll over to zoom
Our Price:
£17.00
 Quantity:

Oase PondoVac 3 and 4 Vacuum Spare Parts
Diagram - Part 18

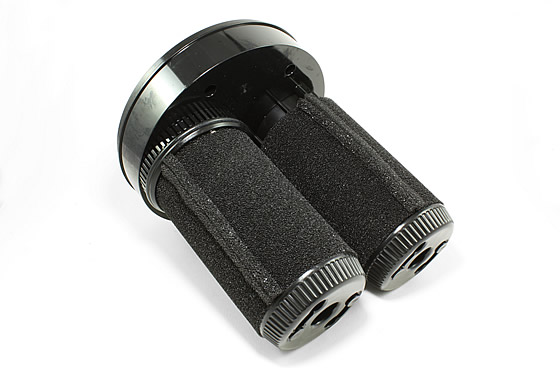

Oase PondoVac 3 and 4 - Valve Section (Rocker Assembly) - Single (43995)
Our Ref: OAS781 - Manufacturers Ref: 43995

Diagram Part Ref: 18
Click to Enlarge an image of Oase PondoVac 3 and 4 - Valve Section (Rocker Assembly) - Single (43995)Large image of Oase PondoVac 3 and 4 - Valve Section (Rocker Assembly) - Single (43995)
Roll over to zoom
Our Price:
£35.03
 Quantity:
