Oase BioPress 6000 - 10000 Filter Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Filter Spare Parts > Oase BioPress Filter Spare Parts > Oase BioPress 6000 - 10000 Filter Spare Parts

Oase Biopress 6000 - 10000 Filter Spare Parts

Oase Biopress 6000 - 10000 Filter Spare Parts

The Oase Biopress 6000 - 10000 filter spares that are currently available are the foam sets, main body o'rings, lid clamps, main tank, bioballs, head and centre assemblies, hosetail packs, UV head covers, UV electrical heads, UV bulbs, quartz sleeve fitting sets, quartz sleeves and complete UV assemblies.

Spare Parts - Quick Links

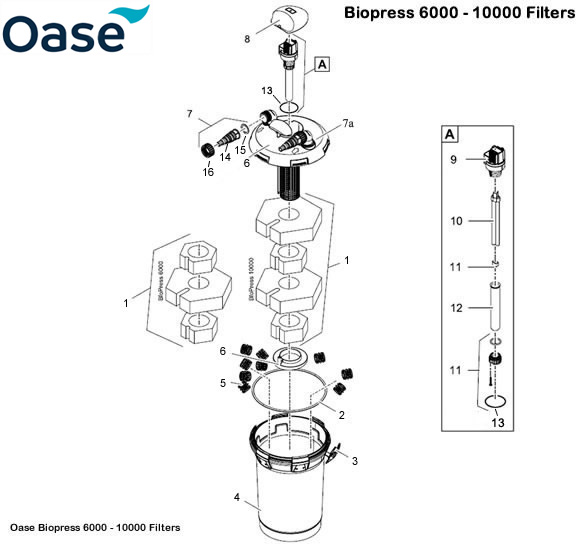

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part A

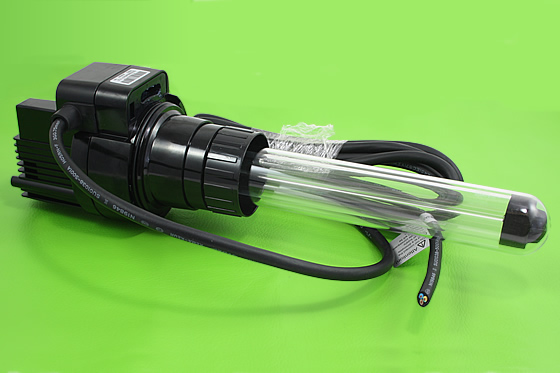

Oase BioPress 6000 - 10000 - Complete UVC Assembly (35838)
Our Ref: OAS418 - Manufacturers Ref: 35838

Diagram Part Ref: A
Unfortunately this product Currently Out of Stock
Please click here to send us your details and we will contact you as soon as it becomes available.
Click to Enlarge an image of Oase BioPress 6000 - 10000 - Complete UVC Assembly (35838)Large image of Oase BioPress 6000 - 10000 - Complete UVC Assembly (35838)
Roll over to zoom
Our Price:
£99.61
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 1

Oase BioPress 6000 - 10000 Foam Set (15564 was 35606)
Our Ref: OAS029 - Manufacturers Ref: 15564

Diagram Part Ref: 1

The same foam set is supplied for both the 6000 and 10000 models . In the 6000 you fit 3 of the 4 foams and have one course filter spare, whereas in the 10000 you use all 4 foams.
Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioPress 6000 - 10000 Foam Set (15564 was 35606)Large image of Oase BioPress 6000 - 10000 Foam Set (15564 was 35606)
Roll over to zoom
Our Price:
£31.42
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 2

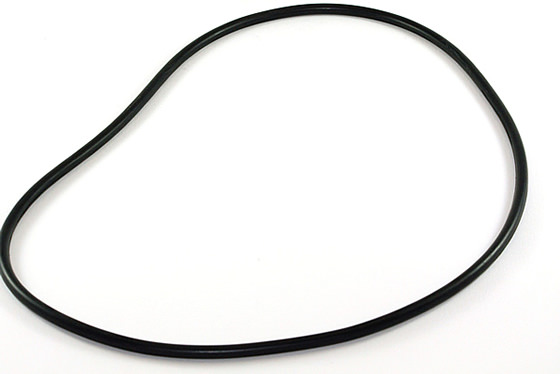

Oase BioPress 6000 - 10000 - Main Tank O-Ring (28812)
Our Ref: OAS410 - Manufacturers Ref: 28812

Diagram Part Ref: 2

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioPress 6000 - 10000 - Main Tank O-Ring (28812)Large image of Oase BioPress 6000 - 10000 - Main Tank O-Ring (28812)
Roll over to zoom
Our Price:
£6.23
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 3

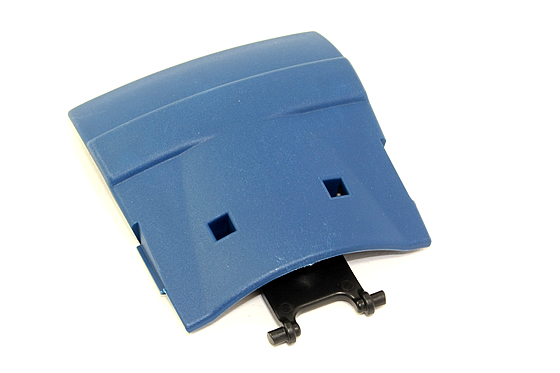

Oase BioPress 6000 - 10000 - Lid Clamp - Single (47828)
Our Ref: OAS411 - Manufacturers Ref: 47828

Diagram Part Ref: 3
Click to Enlarge an image of Oase BioPress 6000 - 10000 - Lid Clamp - Single (47828)Large image of Oase BioPress 6000 - 10000 - Lid Clamp - Single (47828)
Roll over to zoom
Our Price:
£3.14
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 4

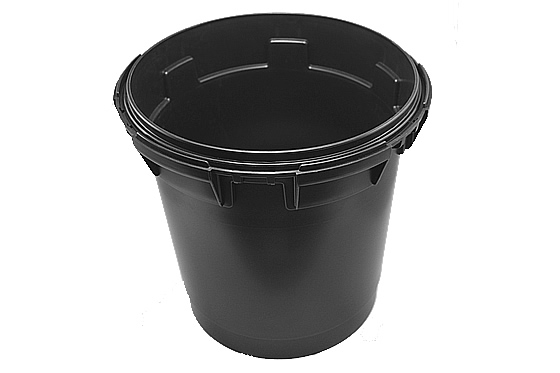

Oase BioPress 6000 - Main Tank Body (28042)
Our Ref: OAS412 - Manufacturers Ref: 28042

Diagram Part Ref: 4

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioPress 6000 - Main Tank Body (28042)Large image of Oase BioPress 6000 - Main Tank Body (28042)
Roll over to zoom
Our Price:
£23.64
 Quantity:

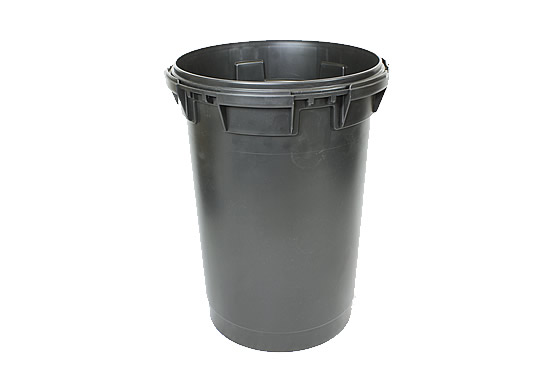

Oase BioPress 10000 - Main Tank Body (28041)
Our Ref: OAS413 - Manufacturers Ref: 28041

Diagram Part Ref: 4

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase BioPress 10000 - Main Tank Body (28041)Large image of Oase BioPress 10000 - Main Tank Body (28041)
Roll over to zoom
Our Price:
£26.56
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 5

Oase BioPress 6000 - 10000 - Bio balls (35814)
Our Ref: OAS414 - Manufacturers Ref: 35814

Diagram Part Ref: 5

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioPress 6000 - 10000 - Bio balls (35814)Large image of Oase BioPress 6000 - 10000 - Bio balls (35814)
Roll over to zoom
Our Price:
£10.38
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 6

Oase BioPress 6000 - Lid And Inner Core Assembly (35815)
Our Ref: OAS415 - Manufacturers Ref: 35815

Diagram Part Ref: 6

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioPress 6000 - Lid And Inner Core Assembly (35815)Large image of Oase BioPress 6000 - Lid And Inner Core Assembly (35815)
Roll over to zoom
Our Price:
£68.30
 Quantity:

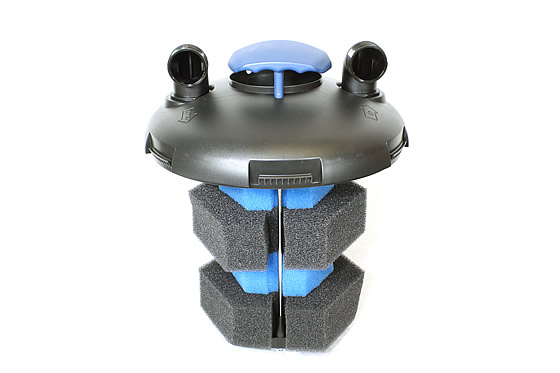

Oase BioPress 10000 - Lid And Inner Core Assembly (35816)
Our Ref: OAS416 - Manufacturers Ref: 35816

Diagram Part Ref: 6

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioPress 10000 - Lid And Inner Core Assembly (35816)Large image of Oase BioPress 10000 - Lid And Inner Core Assembly (35816)
Roll over to zoom
Our Price:
£72.97
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 7

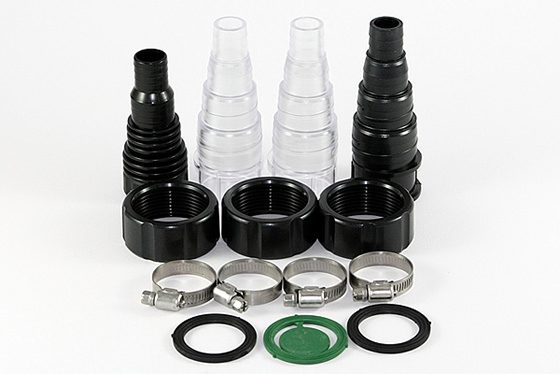

Oase BioPress 6000 - 10000 - Hosetail Pack (Pair) (15313 was 35750)
Our Ref: OAS417 - Manufacturers Ref: 15313

Diagram Part Ref: 7

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioPress 6000 - 10000 - Hosetail Pack (Pair) (15313 was 35750)Large image of Oase BioPress 6000 - 10000 - Hosetail Pack (Pair) (15313 was 35750)
Roll over to zoom
Our Price:
£11.34
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 7a

Oase BioPress 6000 - 10000 - Elbowed Connector - O-Ring - Single (24813)
Our Ref: OAS423 - Manufacturers Ref: 24813

Diagram Part Ref: 7a
Click to Enlarge an image of Oase BioPress 6000 - 10000 - Elbowed Connector - O-Ring - Single (24813)Large image of Oase BioPress 6000 - 10000 - Elbowed Connector - O-Ring - Single (24813)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 8

Oase BioPress 4000 - 10000 - UV Cover (15326)
Our Ref: OAS405 - Manufacturers Ref: 15326

Diagram Part Ref: 7

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase BioPress 4000 - 10000 - UV Cover (15326)Large image of Oase BioPress 4000 - 10000 - UV Cover (15326)
Roll over to zoom
Our Price:
£8.04
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 9

Oase BioPress / BioSmart UVC 7W / 9W / 11W - Head Unit (15665)
Our Ref: OAS406 - Manufacturers Ref: 15665

Diagram Part Ref: 9
Click to Enlarge an image of Oase BioPress / BioSmart UVC 7W / 9W / 11W - Head Unit (15665)Large image of Oase BioPress / BioSmart UVC 7W / 9W / 11W - Head Unit (15665)
Roll over to zoom
Our Price:
£52.13
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 10

Oase - 9w PLS UV Bulb (2 Pin) (54984)
Our Ref: TMB018 - Manufacturers Ref: 54984

Diagram Part Ref: 10

Availability - Currently only 2 in stock



Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 9w PLS UV Bulb (2 Pin) (54984)Large image of Oase - 9w PLS UV Bulb (2 Pin) (54984)
Roll over to zoom
Our Price:
£22.99
 Quantity:

Suitable for Oase BioPress 6000

UV Bulb Specification
• Description : Oase 9w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 168mm
• Length - Glass : 126mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm
Oase - 11w PLS UV Bulb (2 Pin) (56112)
Our Ref: TMB019 - Manufacturers Ref: 56112

Diagram Part Ref: 10

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - 11w PLS UV Bulb (2 Pin) (56112)Large image of Oase - 11w PLS UV Bulb (2 Pin) (56112)
Roll over to zoom
Our Price:
£26.99
 Quantity:

Suitable for Oase BioPress 10000

UV Bulb Specification
• Description : Oase 11w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 234mm
• Length - Glass : 194mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 11

Oase BioPress 4000 - 10000 - Quartz / UV Fitting Set (45748 was 15535)
Our Ref: OAS407 - Manufacturers Ref: 15535

Diagram Part Ref: 11
Click to Enlarge an image of Oase BioPress 4000 - 10000 - Quartz / UV Fitting Set (45748 was 15535)Large image of Oase BioPress 4000 - 10000 - Quartz / UV Fitting Set (45748 was 15535)
Roll over to zoom
Our Price:
£5.38
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 12

Oase FiltoClear / BioSmart / BioPress Quartz Sleeve (13312 was 22622)
Our Ref: OAQ001 - Manufacturers Ref: 13312

Add Oase Silicone Grease - 10ml (+ £5.38)

Diagram Part Ref: 12
Click to Enlarge an image of Oase FiltoClear / BioSmart / BioPress Quartz Sleeve (13312 was 22622)Large image of Oase FiltoClear / BioSmart / BioPress Quartz Sleeve (13312 was 22622)
Roll over to zoom
Our Price:
£26.56
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 13

Oase O-Ring for UVC 7W / 9W / 11W - Head Unit (25969)
Our Ref: OAS212 - Manufacturers Ref: 25969

Diagram Part Ref: 13

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase O-Ring for UVC 7W / 9W / 11W - Head Unit (25969)Large image of Oase O-Ring for UVC 7W / 9W / 11W - Head Unit (25969)
Roll over to zoom
Our Price:
£0.49
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 14

Oase 1 1/2 inch Clear Stepped Hosetail for FiltoClear / BioPress (43669)
Our Ref: OAS194 - Manufacturers Ref: 43669

Diagram Part Ref: 14
Click to Enlarge an image of Oase 1 1/2 inch Clear Stepped Hosetail for FiltoClear / BioPress (43669)Large image of Oase 1 1/2 inch Clear Stepped Hosetail for FiltoClear / BioPress (43669)
Roll over to zoom
Our Price:
£1.57
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 15

Oase 1 1/2 inch Clogging Indicator (Single) (24819)
Our Ref: OAS197 - Manufacturers Ref: 24819

Diagram Part Ref: 15
Click to Enlarge an image of Oase 1 1/2 inch Clogging Indicator (Single) (24819)Large image of Oase 1 1/2 inch Clogging Indicator (Single) (24819)
Roll over to zoom
Our Price:
£0.49
 Quantity:

Oase BioPress 6000 - 10000 Filter Spare Parts
Diagram - Part 16

Oase 1 1/2 inch Hosetail Nut / Vorton Inspection Window Nut (12096)
Our Ref: OAS836 - Manufacturers Ref: 12096

Diagram Part Ref: 16
Click to Enlarge an image of Oase 1 1/2 inch Hosetail Nut / Vorton Inspection Window Nut (12096)Large image of Oase 1 1/2 inch Hosetail Nut / Vorton Inspection Window Nut (12096)
Roll over to zoom
Our Price:
£1.34
 Quantity:
