Oase BioTec ScreenMatic 2 - 90000 OC (2024 Version) - Full Kits

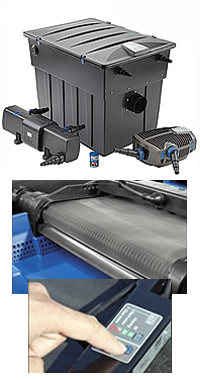

Large image of Oase BioTec ScreenMatic 2 - 90000 OC (2024 Version) - Full Kits

Close this enlarged image of the Oase BioTec ScreenMatic 2 - 90000 OC (2024 Version) - Full Kits

Our Price:
£2,326.99

Quantity:

Oase BioTec ScreenMatic 2 - 90000 OC (2024 Version) - Full Kits

Our Ref: OAC223
Manufacturers Ref: 74454
Feefo logo
This Kit Includes:

Biotec 60000 Screenmatic 2 Pond Filter, Bitron 110C UV and Aquamax Premium Eco 21000 OC Pump


Availability - Currently only 1 in stock

£122 Voucher Code
See information tab below for details

Free Next Working Day Delivery Upgrade
(Same day dispatch if ordered by 10am Monday - Friday) - UK Mainland Only


The Oase BioTec 90000 ScreenMatic 2 OC - Complete Filtration Systems are complete kits that come with the state of the art BioTec 90000 ScreenMatic 2 Pond Filter, Bitron C Ultra Violet lights and the AquaMax ECO Premium OC (2024 version) Filter Pumps. With the introduction of the BioTec 90000 ScreenMatic 2 Filters Oase have shown that they are always innovating and improving their pond filters. The New and upgraded BioTec ScreenMatic 2 range now features an improved coarse debris system and electronic control system. Simple operation, fast, clean maintenance and outstanding filtration results are the unique features of these filters. A specially designed sieve catches all debris particles above 300 microns that arrive in the filter. The sieve has been designed as a belt which rotates when dirty via a built-in 12v motor and is scraped clean as it turns. The dirt build up on the screen is monitored by a new sensor system which only operates the 12v motor when needed, thus saving running costs and wear and tear. The waste falls in to an increased capacity tray for disposal. The water which is enriched with oxygen, then falls into the chamber below, flows through the filter zones and then reaches the next filter chamber. The friendly filter bacteria present in the pond water settle and multiply in the oxygen rich sponges. The individual chamber situated just in front of the outlet holds a number of Zeolite filled cartridges which are ideal when starting up the filter. Once established the material inside can be changed to PhosLess (not supplied) which will help prevent algae growth in the pond. Each filter is also supplied with a plunger to allow for easy cleaning of the foam cartridges and a brush to aid cleaning of the belt. Once the foams have been squeezed out a valve is pulled and the dirty water drains from the tank. The drain is at the bottom of the BioTec ScreenMatic 2 - 90000 Filter is 50mm.
The Oase BioTec ScreenMatic 2 - 90000 Pond Filter Units and Bitron UV's are supplied with a 2 year guarantee which can be upgraded to 3 years by registering your purchase with Oase. However the included Oase AquaMax Eco Premium OC (2024 version) pumps are covered by a 3 year guarantee, which can be extended to 5 years free of charge, simply by sending the warranty card off to Oase.

The outlet for this filter takes 75mm rigid of flexible hose pipe (not included) which can be purchased from the following pages:

76mm Outflow Rigid Pipe
https://www.watergardeningdirect.com/acatalog/75mm-Oase-Rigid-Pipework.html
76mm Flexible Hosepipe
https://www.watergardeningdirect.com/acatalog/Corrugated-Flexible-Hose-Pipe-76mm-3-Inch-ID-Per-Metre.html

Oase BioTec ScreenMatic 2 - 90000 Pond Filter Features
• Intelligent filter system for fish ponds up to 45m³ (45000 litres)
• The automatic coarse debris extraction using "conveyer belt" sieve technology
• High quality filter sponges for biological filtration
• Intelligent control functions
• Simple plug & play operation
• 300 µm first stage cleaning sieves
• Pollutant discharge using included slide valve

Oase BioTec ScreenMatic 2 - 90000 Pond Filter Kit Includes
• Oase BioTec 90000 ScreenMatic 2 Pond Filter
• Oase Bitron 110C Ultra Violet Light
• Oase AquaMax Premium Eco Premium 21000 OC Pond Pump

Oase Bitron C UV's
The Bitron C range of UV's are the result of many years of intensive research, which have culminated in this state of the art design. These ultra violet clarifiers are supplied with one inlet and two outlets. Both outlets have regulator values and by adjusting these you can control the amount of water which passes over the light. This enables the most efficient use of the light giving the best results. The build up of limescale in an ultra violet is well known for substantially reducing the effectiveness of a unit. This problem had been overcome in the Bitron C in two ways. Firstly the permanent magnets reduce the build up limescale in the whole pond system including pumps. Secondly a continuously spinning cleaning device, which is powered using the water flow, ensures that no build up, even silt, starts on the quartz sleeve. Each model has an integrated indicator light or window allowing you to quickly see if the bulb is working. Supplied with a 2 year guarantee, hose clips and a blanking cap if the two outlets are not required.

Top Quality Oase AquaMax Eco Premium OC (2024 version) Filter Pumps
The Oase AquaMax Eco Premium 5000 - 21000 are the very latest version of Oases' high performance AquaMax Eco range of solid handling pond filter pumps. For the 2024 versions Oase have redesigned the motor for the Aquamax Eco Premiums resulting in a quieter, more energy efficient pumps, saving 14% - 24% of the running costs (depending on the model) which should also help them last longer than their older models (that is saying something). The new motors have what Oase call "Core 6 Technology" which means they have six windings instead of the traditional 4, these windings have also been curved which produces smoother running, adding to their efficiency and also making them quieter. These new Oase AquaMax Eco Premium pumps also feature impellors that have been improved and are now effectively handmade with glass-fibre reinforced plastic making them much stronger and allowing them to take solids of up to 11mm in size. All of the new AquaMax Eco Premium pumps can now be controlled electronically via the Oase Smart Phone App using the DMX technology which is available in their OC ("Oase Control" system, formerly known as EGC) range of products. Individual pumps can be controlled using an Oase Eco Controller (OAE016) or if the pump is part of an installation using other OC products which can be remotely controlled then an adapter can be purchased to link other units (OAE077). All of the AquaMax Eco Premium pumps have the option of using the secondary inlet port to run an optional remote strainer (OAA501) or skimmer (OAA102), both of which can improve the circulation within your pond and reduce the likelihood of 'dead' areas and silt build up. Like their predecessors these pumps still have the seasonal function control (SFC) function which automatically slows the pump down (saving money) in colder water temperatures and they can still be dry installed (SFC does not work in dry installations) and reliable protection against blockages and dry running with EFC (Environmental Function Control)

All AquaMax Eco Premium pumps are supplied with 10m of mains cable, inlet and outlet hosetails which will accept 25mm - 38mm flexible hosepipe and a 25, 32 and 38mm plastic hose clip. In addition 9000 - 21000 models Oase also provide a larger outlet hosetail to allow the connection of 50mm (2") flexible pipework for less resistance in high flowrate / longer pipe runs.

The Oase AquaMax Eco Premium pumps are covered by a 3 year guarantee, which can be extended to 5 years free of charge, simply by sending the warranty card off to Oase.

Oase BioTec ScreenMatic 2 - 90000 OC (2024 Version) - Full Kits - Product Video


Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you.

Pond Volume
Litres (Gallons)
Suggested System
System Includes
Hose mm (inch)
Goldfish
Koi
32000 (7040)
16000 (3520)
BioTec 90000a ScreenMatic 2 Kit
BioTec 90000 ScreenMatic 2, Bitron 72C, AquaMax Premium Eco 13000 OC
38 (1½)
36000 (7920)
18000 (3960)
BioTec 90000b ScreenMatic 2 Kit
BioTec 90000 ScreenMatic 2, Bitron 72C, AquaMax Premium Eco 17000 OC
38 (1½)
45000 (9900)
22500 (4950)
BioTec 90000 ScreenMatic 2 Kit
BioTec 90000 ScreenMatic 2, Bitron 110C, AquaMax Premium Eco 21000 OC
38 (1½)
To calculate the approximate volume of your pond, select the Shape, Unit of Measurement and amount of shading, then press calculate. If you would like to try different combinations, remember to press Reset between calculations.
Pond Shape
Units
Sunlight
Pond Size
Rectangular Metres / Litres Full Sunshine
Circular Feet / Gallons Partly Shaded


Actual Volume
Effective Volume

What is Effective Volume ?
The effective volume is the quantity of water in your pond, plus an allowance for shallow and or ponds exposed to high levels of sunlight. Both of these situations will result in a higher than normal algae growth, and fish pollution. We advise that to ensure your that your equipment is correctly sized, the effective volume be considered the minimum size for the equipment you select. However do remember to check the details of the product you are interested in, to ensure that there are no other allowances or consideration specific to that product are required.

If a product is advertised with a Discount Code, we will email you a unique code as soon as your goods are dispatched. This code will be valid for use on our website 12 months from the date of your purchase.

Please note the following conditions of use:

Voucher codes are not transferable and must be delivered to the same address as your original order.

Our voucher codes have no cash alternative value.

If your original goods are returned for a refund the voucher code will become invalid and the value of a used voucher code will be deducted from your refund.
