Oase BioTec 145000 - ScreenMatic 2 Pond Filters

You Are Here : Pond Products > Pumping and Filtering your Pond > Pond Filter Units > Oase BioTec ScreenMatic 2 Pond Filters > Oase BioTec 145000 - ScreenMatic 2 Pond Filters


Large image of Oase BioTec 145000 - ScreenMatic 2 Pond Filters

Close this enlarged image of the Oase BioTec 145000 - ScreenMatic 2 Pond Filters

Our Price:
£2,369.99

Oase BioTec 145000 - ScreenMatic 2 Pond Filters

Our Ref: OAF127
Manufacturers Ref: 93037
Feefo logo
Extra Discount


Unfortunately this product is Currently Out of Stock.
Pleaseclick here to send us your detailsand we will contact you as soon as it becomes available.
Oase 76mm - 1m Drain Pipe (+ £23.99)
£115 Voucher Code
See information tab below for details

Free Next Working Day Delivery Upgrade
(Same day dispatch if ordered by 10am Monday - Friday) - UK Mainland Only

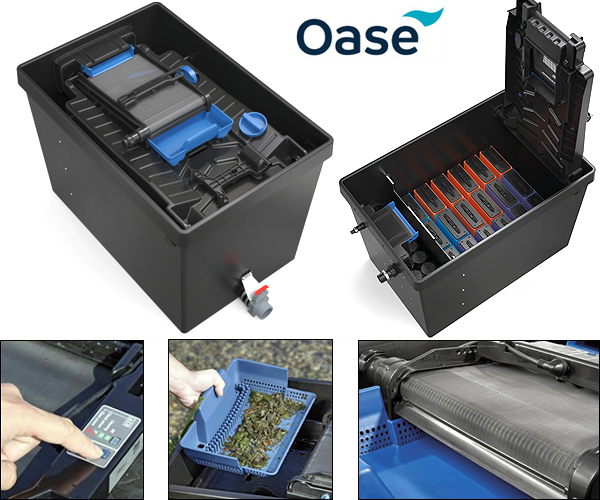

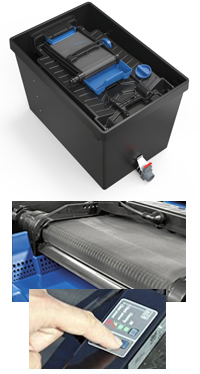

With the introduction of the New BioTec 145000 ScreenMatic 2 Filters in 2023, Oase have shown that they are always innovating and improving their pond filters. The new and upgraded BioTec ScreenMatic 2 range now features an improved coarse debris system and electronic control system. Simple operation, fast, clean maintenance and outstanding filtration results are the unique features of these filters. A specially designed sieve catches all debris particles above 300 microns that arrive in the filter. The sieve has been designed as a belt which rotates when dirty via a built-in 12v motor and is scraped clean as it turns. The dirt builds up on the screen is monitored by a new sensor system which only operates the 12v motor when needed, thus saving running costs and wear and tear. The waste falls into an increased capacity tray for disposal. The water, which is enriched with oxygen, then falls into the chamber below, flows through the filter zones and then reaches the next filter chamber. The friendly filter bacteria present in the pond water settle and multiply in the oxygen rich sponges. The individual chamber situated just in front of the outlet holds Zeolite filled cartridges which are ideal when starting up the filter. Once established the material inside can be changed to PhosLess (not supplied) which will help prevent algae growth in the pond. Each filter is also supplied with a plunger to allow for easy cleaning of the foam cartridges and a brush to aid cleaning of the belt. Once the foams have been squeezed out a valve is pulled, and the dirty water drains from the tank. The drain is at the bottom of the BioTec 145000 ScreenMatic 2 Filter is 75mm.

The Oase BioTec 145000 - ScreenMatic 2 Pond Filters are supplied with a 2 year guarantee which can be upgraded to 3 years by registering your purchase with Oase.

Housed within a new filter tank, the 2023 BioTec ScreenMatic 2 - 145000 features an upgraded foam layout and revised outlet position which together ensure that the foams remain fully sub-merged in water when the system is turned off or when first installed. This changed foam layout substantially increases the gap from initial water height to the top of the vertical divider, which reduces the frequency of cleaning.

Oase BioTec 145000 ScreenMatic 2 Pond Filter Features
• Intelligent filter system for fish ponds up to 70m³ (70000 litres)
• The automatic coarse debris extraction using "conveyer belt" sieve technology
• High quality filter sponges for biological filtration
• Intelligent control functions
• Simple plug & play operation
• 300 µm first stage cleaning sieves
• Pollutant discharge using included slide valve

Oase BioTec 145000 ScreenMatic 2 Pond Filter Dimensions
Tank Width (lid) : 800mm
Tank Width (lid inc. handles) : 891mm
Tank Length (lid) : 1204mm

Foot Print
Tank Width (at base) : 675mm
Tank Length (at base) : 1070mm

Oase BioTec 145000 - ScreenMatic 2 Pond Filters - Product Video


Oase BioTec ScreenMatic 2 Pond Filters - Product Sizing

Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you.

Filter
Pond Volume Litres (gallons)
Suggested Hose
mm (inch)
Dimensions
LxWxD mm
Max Flowrate
LPH (GPH)
Outlets
mm
Goldfish
Koi
BioTec 40000
ScreenMatic 2
20000
(4400)
10000
(2200)
38 (1½)
788 x 590 x 445
9000
(1980)
1 x 75
BioTec 60000
ScreenMatic 2
30000
(6600)
15000
(3300)
38 (1½)
788 x 590 x 545
11000
(2420)
1 x 75
BioTec 90000
ScreenMatic 2
45000
(9900)
22500
(4950)
38 (1½)
788 x 590 x 645
12500
(2750)
1 x 110
BioTec 145000
ScreenMatic 2
72000
(15840)
36000
(7920)
50 (2)
1334 x 891 x 815
17500
(3850)
1 x 110
To calculate the approximate volume of your pond, select the Shape, Unit of Measurement and amount of shading, then press calculate. If you would like to try different combinations, remember to press Reset between calculations.
Pond Shape
Units
Sunlight
Pond Size
Rectangular Metres / Litres Full Sunshine
Circular Feet / Gallons Partly Shaded


Actual Volume
Effective Volume

What is Effective Volume ?
The effective volume is the quantity of water in your pond, plus an allowance for shallow and or ponds exposed to high levels of sunlight. Both of these situations will result in a higher than normal algae growth, and fish pollution. We advise that to ensure your that your equipment is correctly sized, the effective volume be considered the minimum size for the equipment you select. However do remember to check the details of the product you are interested in, to ensure that there are no other allowances or consideration specific to that product are required.
